ACSR 630/45 Aluminum Conductor Seel Reinforced AL 45/4.22 ST 7/2.81 GB/T1179 2017
Price:
Negotiable
MOQ:
5000meters
Delivery Time:
15-30 days
Brand:
Zhenglan Cable
Product Description
Applications
Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Construction

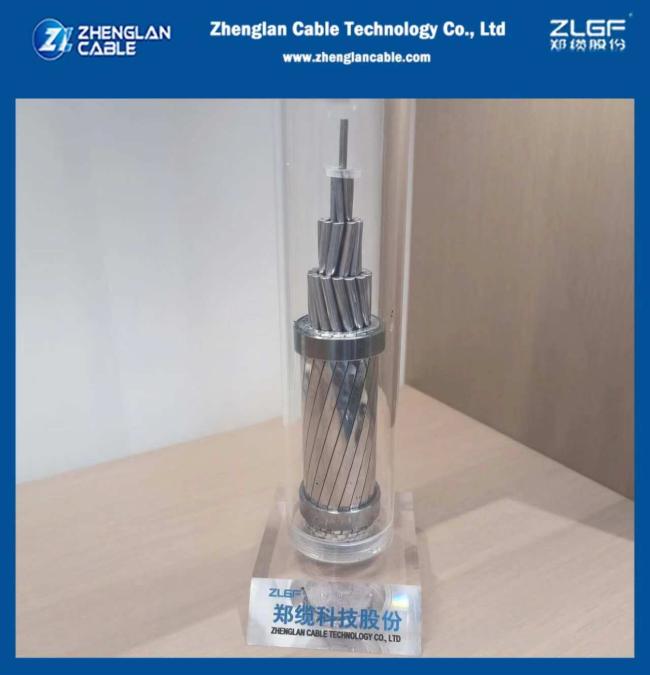

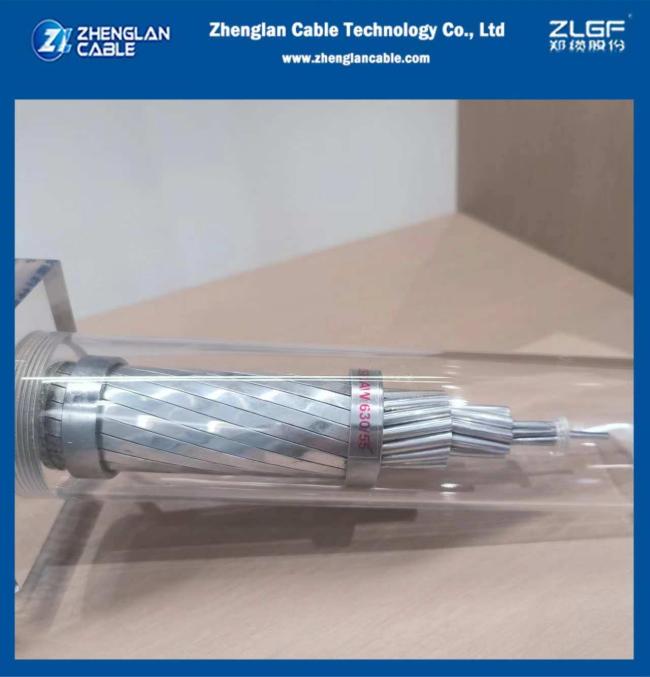

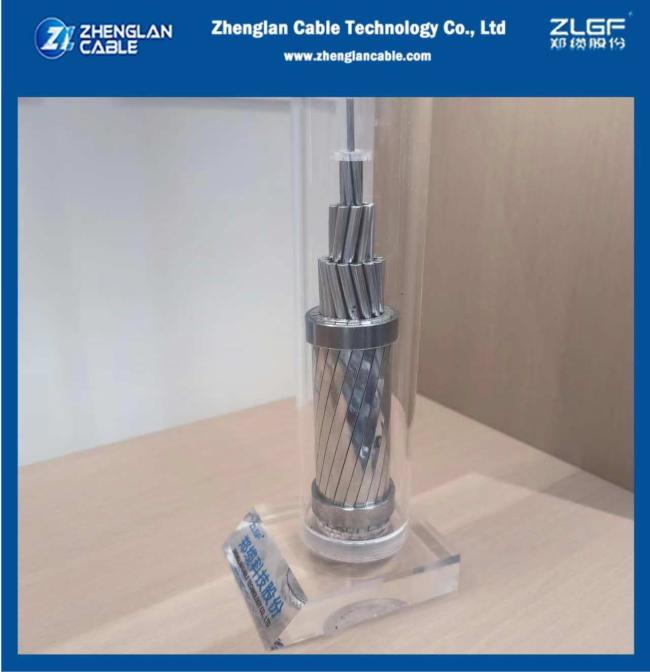

A solid or concentric stranded central steel core is surrounded by one or more layers of concentric stranded aluminum alloy 1350. The wire is protected from corrosion with a zinc coating.
| Nominal Cross-section(AL/ST) | Aluminum | Galvanized steel | Approx.Overall diameter | Approx.Overall weight | Maximum DC resistance at 20oC | Minimum breaking load | |
| mm2 | No. x mm | No. x mm | mm | kg/km | Ω/km | kN | |
| 630/45 | 45 x 4.22 | 7 x 2.81 | 33.80 | 2.079 | 0.0479 | 194.3 |
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
