ACSR Quail 2/0AWG AL6/3.78mm, ST1/3.78mm Overhead Bare Conductor
Price:
0.5-80USD/m
MOQ:
depends on conductor's size
Delivery Time:
15 days
Brand:
Zhenglan Cable
Product Description
ACSR Quail 2/0AWG (AL6/3.78mm, ST1/3.78mm) overhead bare conductor general information
ACSR Quail 2/0AWG (AL6/3.78mm, ST1/3.78mm) overhead bare conductor is mainly used for distribution services in overhead transmission, both primary and secondary, in various industrial settings, including construction. ACSR cable is especially suitable for line design due to its steel core strand, which increases the strength of the cable without sacrificing its ampacity.
Construction
ACSR is concentrically stranded conductor with one or more layers of Aluminium wire hard-drawn 1350-H19 on the galvanized steel wire core. The core may be single wire or stranded depending on the size. Steel wire is available in Class A or B galvanization as corrosion protection.
ACSR is concentrically stranded conductor with one or more layers of Aluminium wire hard-drawn 1350-H19 on the galvanized steel wire core. The core may be single wire or stranded depending on the size. Steel wire is available in Class A or B galvanization as corrosion protection.
ACSR is according to electrical and mechanical strength requirements of transmission or distribution lines, can provides an appropriate design combining the quantity of Aluminium and galvanized steel wires.
ACSR Quail 2/0AWG (AL6/3.78mm, ST1/3.78mm) overhead bare conductor technical data
| Code Name | Stranding | Section | Overall Diameter | Conductor Weight | Breaking Load | Electrical Resistance | |
| Aluminum | Steel | mm2 | mm | kg/km | kN | DC.20°C | |
| No. x Φmm | Ω/km | ||||||
| Quail | 6/3.78 | 1/3.78 | 78.55 | 11.34 | 272 | 23.27 | 0.4247 |

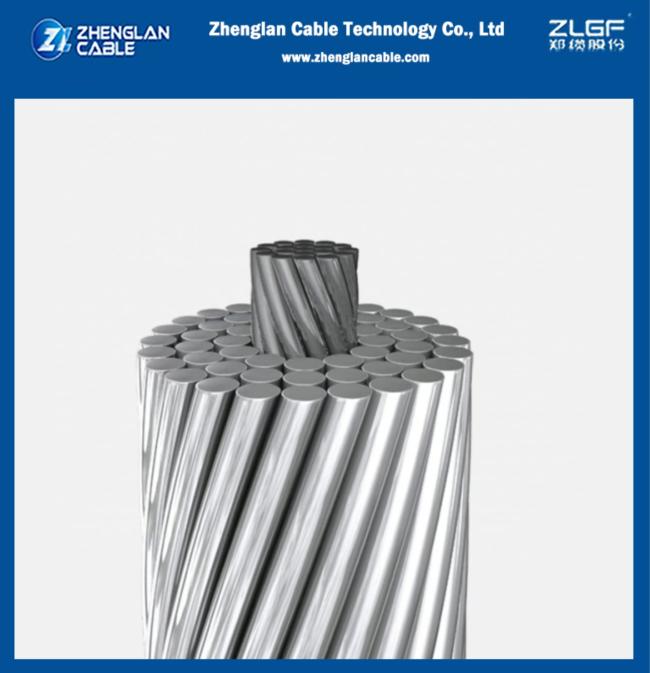

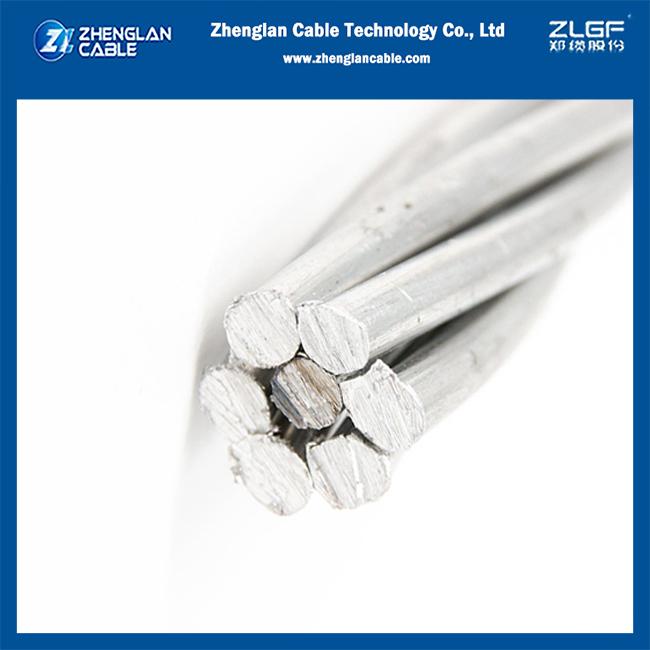

ACSR Quail 2/0AWG (AL6/3.78mm, ST1/3.78mm) overhead bare conductor reference images

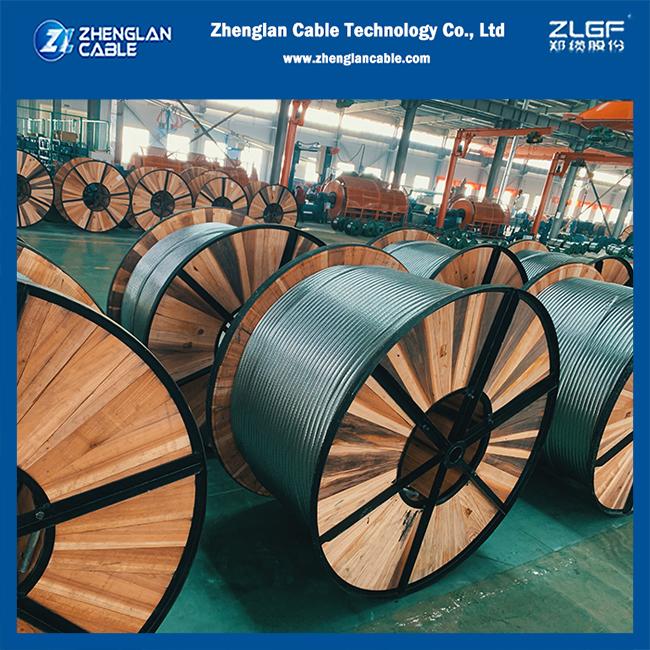

ACSR Quail 2/0AWG (AL6/3.78mm, ST1/3.78mm) overhead bare conductor package

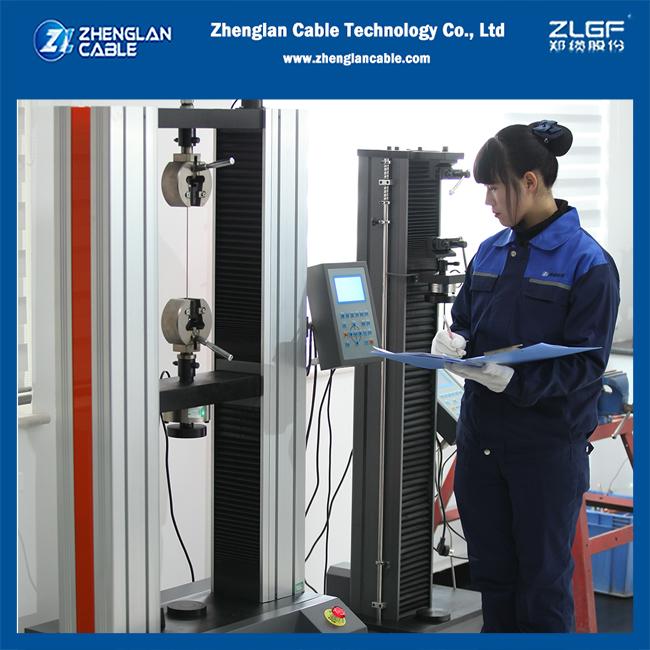

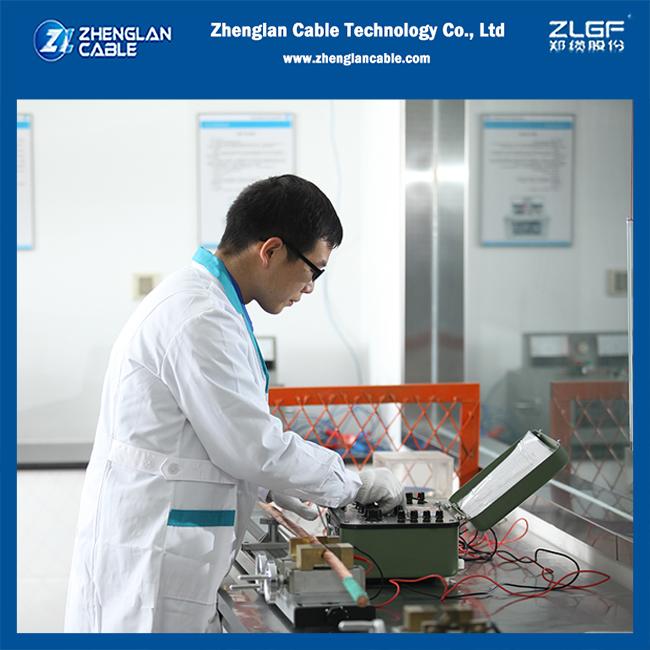

ACSR Quail 2/0AWG (AL6/3.78mm, ST1/3.78mm) overhead bare conductor test equipment
Why you choose us?
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed
