795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced
Price:
0.5-80USD/m
MOQ:
1000m
Delivery Time:
15 days
Brand:
Zhenglan Cable
Product Description
795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced Construction
795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced is a specific type of high-capacity, high-strength stranded cable typically used in overhead power lines. It is composed made from round aluminum 1350-H19 wires and round coated steel core wire.
The outer strands of ACSR cable are aluminum, chosen for its excellent conductivity, low weight and low cost. The center strand is of steel for the strength required to support the weight without stretching the aluminum due to its ductility. This gives the cable an overall high tensile strength.
The outer strands of ACSR cable are aluminum, chosen for its excellent conductivity, low weight and low cost. The center strand is of steel for the strength required to support the weight without stretching the aluminum due to its ductility. This gives the cable an overall high tensile strength.
Manufacture reference standards
B-230: Aluminum wire, 1350-H19 for Electrical Purposes
B-231: Aluminum conductors, Concentric-Lay-Stranded
B-232: Aluminum conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-498: Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
B-230: Aluminum wire, 1350-H19 for Electrical Purposes
B-231: Aluminum conductors, Concentric-Lay-Stranded
B-232: Aluminum conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-498: Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced technical data
| Code Name |
Area | Equivalent copper area |
Stranding and wire diameter |
Approx. overall diameter |
Rated Strength |
Maximum DC resistance at 20 oC |
|||||||||
| Weight | |||||||||||||||
| Aluminium | Steel | Total | |||||||||||||
| AWG or MCM |
mm2 | mm2 | mm2 | AWG or MCM |
mm2 | Aluminium | Steel | Aluminium | Steel | Total | kN | Ω / km | |||
| mm | mm | mm | kg/km | kg/km | kg/km | ||||||||||
| Drake | 795 | 402.6 | 65.4 | 468.0 | 500 | 246 | 26/4.44 | 7/3.45 | 28.11 | 1112 | 513 | 1625 | 138.4 | 0.07173 | |

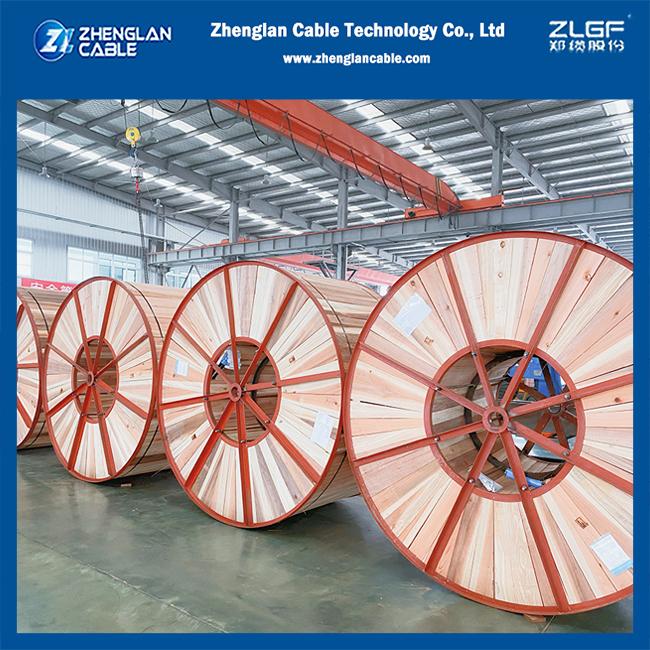

795MCM ACSR Drake ASTM B232/232M Aluminum Conductor Steel Reinforced reference image
Why you choose us?
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
