Single Solar Cable with High Durability EN50618 UL4703 Energy Wire Electrical Wire
Single Solar Cable with High Durability EN50618 UL4703 Energy Wire Electrical Wire
Application
Photovoltaic solar cables are intended for interconnecting power supplies within renewable energy photovoltaic systems such as solar panel arrays in solar energy farms. PV cables are manufactured in accordance with standard BS EN 50618 or UL4703 and are suitable for fixed installations, internal and external with conduit or systems or direct burial applications
Standard
EN50618, UL4703
SPECIFICATION
Nominal Voltage: PV1-F: DC 1.0KV AC 0.6/1.0KV
H1Z2Z2-K: DC 1.5KV AC 1.0/1.0KV
Ambient Temperature: -40ºC~+90ºC
Max.Temperature at conductor: +120ºC
Service life: >25 years ( -40ºC~+90ºC)
Withstand voltage(V/5min): AC6500
Min bending radius(mm) : 5*D

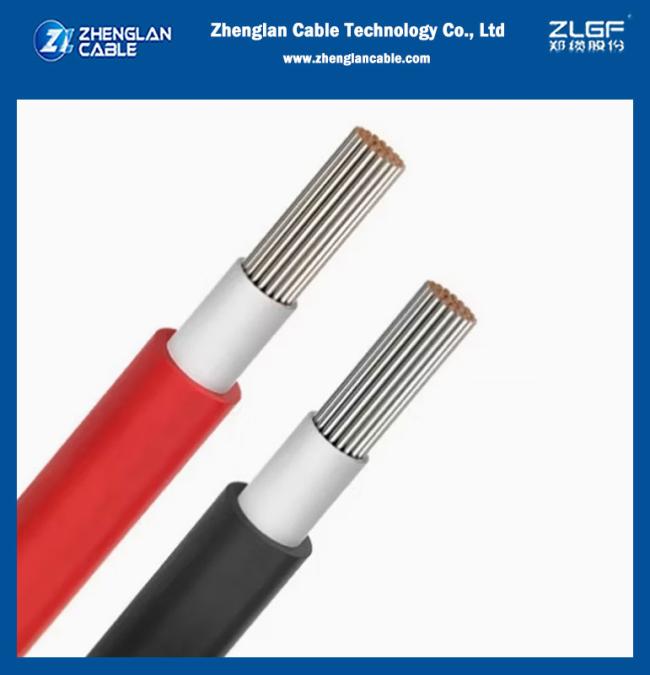

CONSTRUCTION
1. class 5 tinned copper conductor
2. insulation
3. sheath
PARAMETERS
| 1 | 2 | 3 | 4 | 5 |
| Number and nominal sectional area of conductors | Thickness of insulation | Thickness of sheath | Maximum resistance of conductor at 20ºC | Current carrying capacity |
| mm2 | mm | mm | Ω/km | A |
| 1x1.5 | 0.7 | 0.8 | 13.7 | 30 |
| 1x2.5 | 0.7 | 0.8 | 8.21 | 41 |
| 1x4 | 0.7 | 0.8 | 5.09 | 55 |
| 1x6 | 0.7 | 0.8 | 3.39 | 70 |
| 1x10 | 0.7 | 0.8 | 1.95 | 98 |
| 1x16 | 0.7 | 0.9 | 1.24 | 132 |
| 1x25 | 0.9 | 1.0 | 0.795 | 176 |
| 1x35 | 0.9 | 1.1 | 0.565 | 218 |
| 1x50 | 1.0 | 1.2 | 0.393 | 276 |
| 1x70 | 1.1 | 1.2 | 0.277 | 347 |
| 1x95 | 1.1 | 1.3 | 0.210 | 416 |
| 1x120 | 1.2 | 1.3 | 0.164 | 488 |
| 1x150 | 1.4 | 1.4 | 0.132 | 566 |
| 1x185 | 1.6 | 1.6 | 0.108 | 644 |
| 1x240 | 1.7 | 1.7 | 0.817 | 775 |
