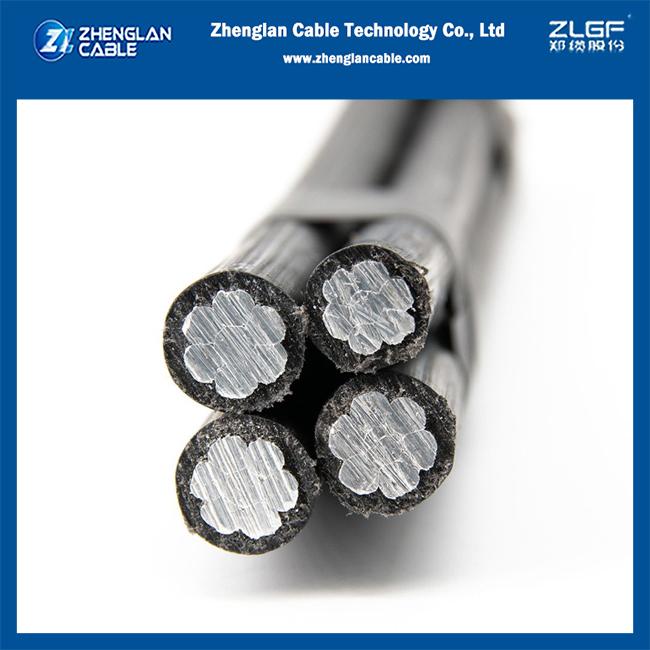

1KV ABC Cable 3x50+1x35mm2 Aluminum Core XLPE Insulated Aluminum Alloy XLPE Insulated NTP 370.254
1KV ABC Cable 3x50+1x35mm2 Aluminum core XLPE insulated Aluminum alloy XLPE insulated NTP 370.254
1KV ABC Cable 3x50+1x35mm2 Aluminum core XLPE insulated Aluminum alloy XLPE insulated NTP 370.254 are designed for overhead secundary distribution networks. The use of these cable decrease energy theft. Cross-linked polyethylene allows more current capacity and high insulation resistance, lower inductive reactance than with bare conductors, used in overhead distribution lines. Insulators are not necessary for installation. Resistance to abrasion, weather and sunlight.
1KV aerial bundled cable xlpe insulated 2x16mm2 NFC-33-209 structure
1. Conductor: Aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Insulated neutral messenger: AAAC - All Alloy Aluminium 6201 - XLPE.
Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474, etc.
| No. of cores and cross sectional area(mm2) | Nominal insulation thickness(mm) | Approximate diameter of cable(mm) |
Max DC resistance at 20℃(Ω/km) |
Approx. weight(kg/km) |
| 3x50+1x35 | 1.52(phase); 1.14(neutral) | 26.7 | 0.641 | 666 |
