AAAC YEW Bare Conductor All Aluminum Alloy Conductor AAAC 479mm2 37/4.06mm BS3242
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
15-20 days
Brand:
Zhenglan Cable
Product Description
Applications:
AAAC (All Aluminum Alloy Conductors ) Yew Conductor made up of heat treated alloy of aluminum, magnesium and silicon. Our quality range is available as per various standards. These products are used for the transmission of electric power as high as appreciated for their high tensile strength, light weight and resistance to corrosion.
Code Name : Yew
standard : BS EN 50183
Area : 479 mm2
No. of Wires : 37
Diameter Wire : 4.06 mm
Weight : 1319.6kg/km
Rated Strength : 141.31 kN
Max.D.C.Resistance at 20℃ : 0.0693 Ω/km

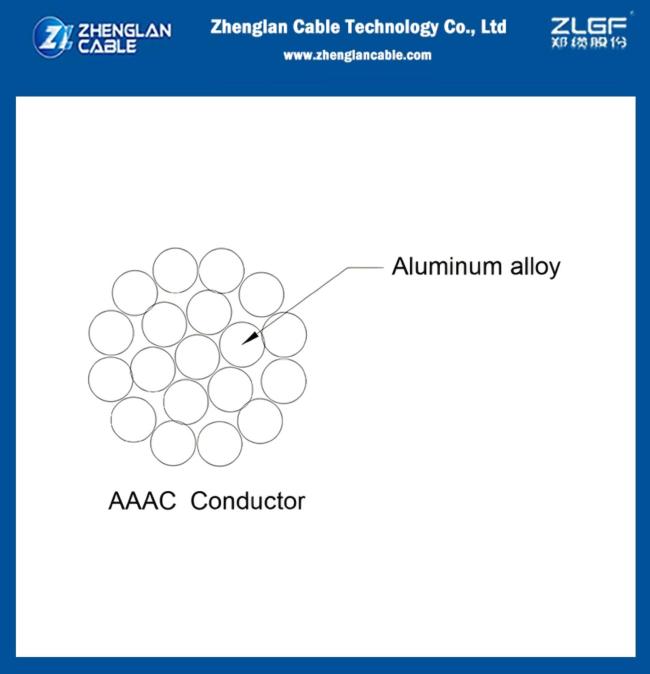

AAAC Yew Conductor Construction
Conductors: 6201-T81 aluminum alloy conductors. 6201-T81 aluminum alloy is a high strength aluminum alloy for added durability and reduced sag when stranded overhead. 6201-T81 aluminum alloy is also more resistant to abrasion than 1350-H19 aluminum.
Stranding: Helically stranded.
Ampacity: Medium to high voltages.
AAAC Technical data sheet
| Code | Nom. Area | Stranding | Cal. Size | O.D. | mass | Strength | Resistance(20℃) |
| mm2 | No./mm | mm2 | mm | kg/km | kgf | Ω/km | |
| Yew | 400 | 37/4.06 | 479 | 28.42 | 1319 | 13685 | 0.06921 |
Images
About Zhenglan Cable Technology. Co., Ltd
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
1-35kv overhead transmission line use insulated conductor
power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
300/300V, 300/500V, 450/750V cotrol cable, house wire
