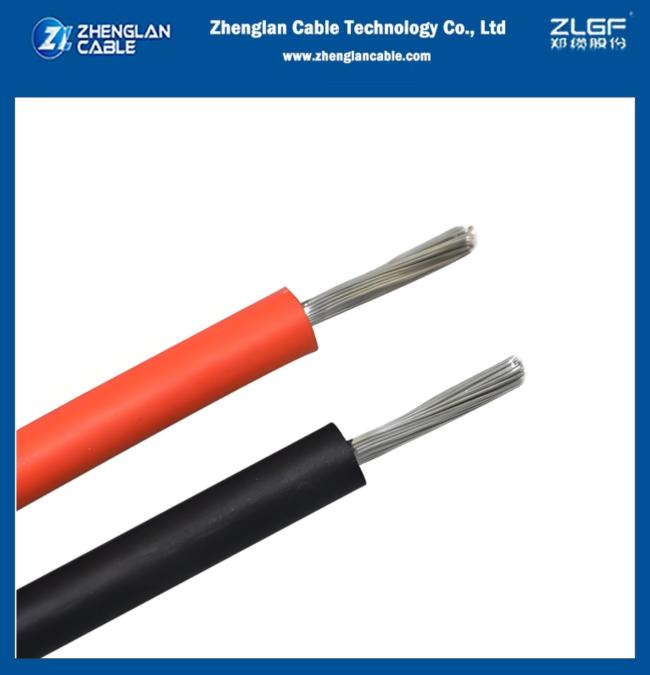

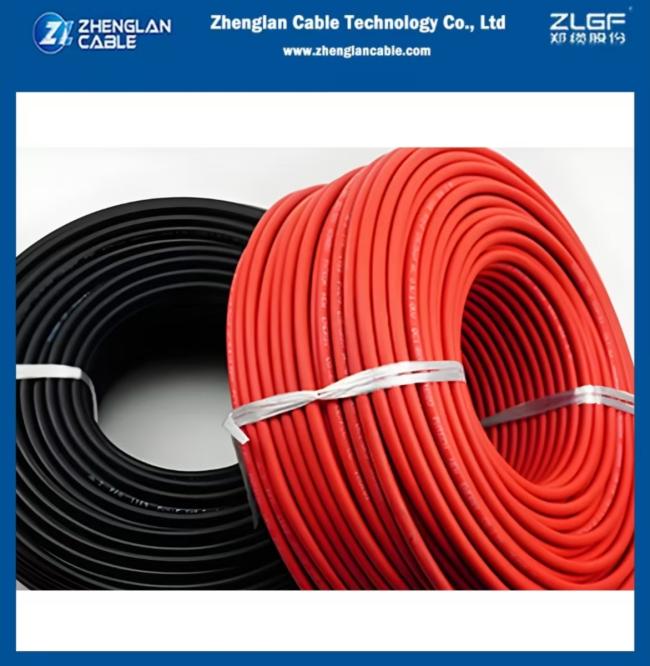

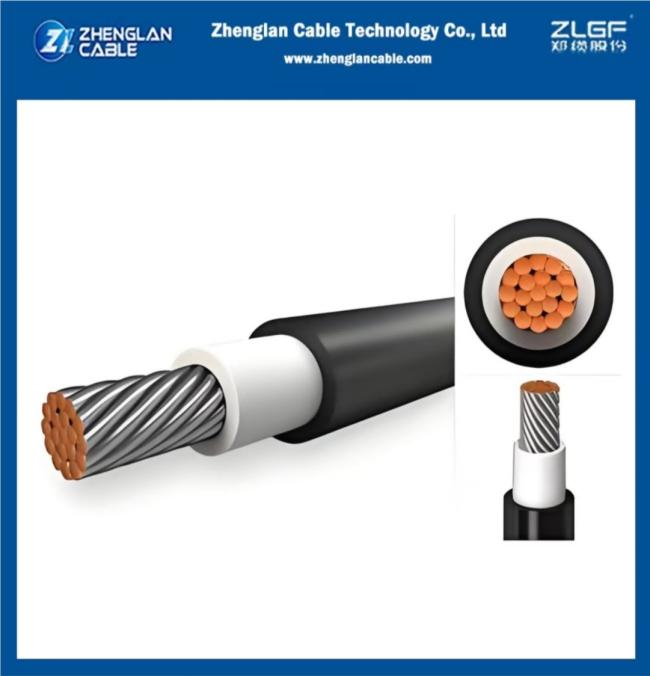

Tinned coppersolar cable DC 1.5KV AC 0.6/1KV single core cable 185mm2 H1Z2Z2-K TUV Certification
Price:
Negotiable
MOQ:
5000meters single color
Delivery Time:
7-15DAY
Brand:
Zhenglan Cable
Product Description
Application:
DC Cable H1Z2Z2-K acc. to EN 50618, are intended for use in Photovoltaic Power Supply Systems at nominal voltage rate up to 1,5/1,5kV DC.They are suitable for applications indoor and/or outdoor, in industrial and agriculture fields, in/at equipment with protective insulation (Protecting Class II), in explosion hazard areas.They may be installed fixed, freely suspended or free movable, in cable trays,conduits, on and in walls.DC Cable H1Z2Z2-K are suitable for direct burial where the corresponding guidelines for direct burial shall be considered
Dimension characteristics:
| Rated Voltage | D.C. 1.5/1.5 kV A.C. 1.0/1.0 kV |
| Max. permissible operating voltage AC | 1.2/1.2 kV |
| Max. permissible operating voltage DC | 1.8/1.8 kV |
| Nominal Cross Sectional | 185mm² |
| Number of wires in conductor | 925 |
| Diameter of wires in conductor | 0.50mm |
| Tolerance of wires in conductor | ±0.005 mm |
| Mean Thickness of Insulation | 1.60 mm |
| Mean Thickness of Sheath | 1.60 mm |
| Max. Mean Overall Diameter | 28.50 mm |
| Approx. Cable Weight | 1983.20 kg/km |
| Conductor D.C resistance at 20°C | 0.108 Ω/km |
