Overhead bare conductor AAAC Low/High Voltage Bare Aluminum Conductor Lightweight Design Ideal for Electrical Power Transmission and Distribution Projects
Product Description:

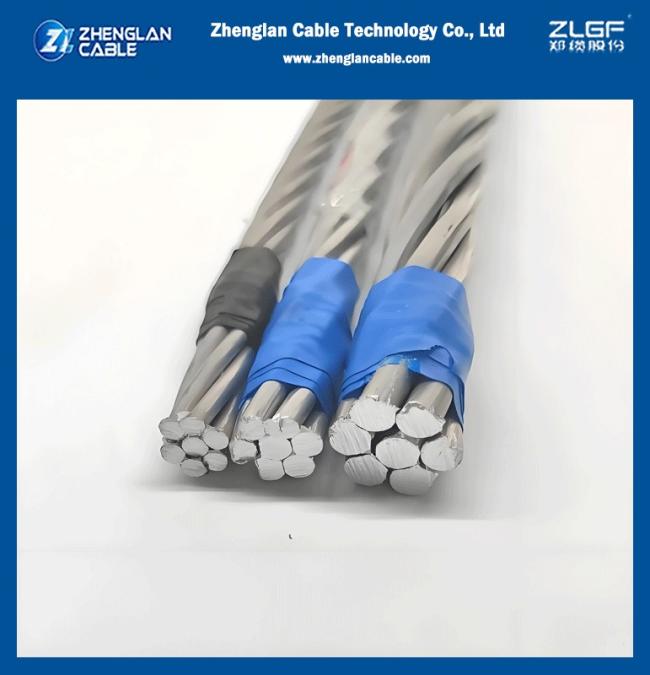

All-aluminum alloy conductor is a concentric stranded conductor made of aluminum alloy wire, typically 6201-T81 aluminum alloy wire, and can be made into single-layer or multi-layer structures depending on the requirements.
Applications:
AAAC are mainly used for overhead lines, in transmission and distribution electrical networks, having relatively long spans. It has a high tensile strength, good corrosion resistance, light weight, and comparable current-carrying capacity. They are also used as a messenger to support overhead
Standards:
ASTM B 399/B 399M, IEC 61089, BS EN 50182, AS 1531, DIN 4820, BS EN 50183, BS 3242, NF C 34-125, GB/T 1179
Conductor:
Hard-drawn aluminum alloy wire 6201
Technical Parameters:
AAAC/A2
| Code No. |
Area | No.Dia of Wires | Approx. Overall Dia. |
Approx. Weight |
Breaking Load |
Max. DC Resistance at 20℃ | |
| mm2 | No. | mm | mm | kg/km | kN | Ω/km | |
| 16 | 18.4 | 7 | 1.83 | 5.49 | 50.4 | 5.43 | 1.7896 |
| 25 | 28.8 | 7 | 2.29 | 6.86 | 78.7 | 8.49 | 1.1453 |
| 40 | 46 | 7 | 2.89 | 8.68 | 125.9 | 13.58 | 0.7158 |
| 63 | 72.5 | 7 | 3.63 | 10.9 | 198.3 | 21.39 | 0.4545 |
| 100 | 115 | 19 | 2.78 | 13.9 | 316.3 | 33.95 | 0.2877 |
| 125 | 144 | 19 | 3.1 | 15.5 | 395.4 | 42.44 | 0.2302 |
| 160 | 184 | 19 | 3.51 | 17.6 | 506.1 | 54.32 | 0.1798 |
| 200 | 230 | 19 | 3.93 | 19.6 | 632.7 | 67.91 | 0.1439 |
| 250 | 288 | 19 | 4.39 | 22 | 790.8 | 84.88 | 0.1151 |
| 315 | 363 | 37 | 3.53 | 24.7 | 998.9 | 106.95 | 0.0916 |
| 400 | 460 | 37 | 3.98 | 27.9 | 1268.4 | 135.81 | 0.0721 |
| 450 | 518 | 37 | 4.22 | 29.6 | 1426.9 | 152.79 | 0.0641 |
| 500 | 575 | 37 | 4.45 | 31.2 | 1585.5 | 169.76 | 0.0577 |
| 560 | 645 | 61 | 3.67 | 33 | 1778.4 | 190.14 | 0.0516 |
| 630 | 725 | 61 | 3.89 | 35 | 2000.7 | 213.9 | 0.0458 |
| 710 | 817 | 61 | 4.13 | 37.2 | 2254.8 | 241.07 | 0.0407 |
| 800 | 921 | 61 | 4.38 | 39.5 | 2540.6 | 271.62 | 0.0361 |
| 900 | 1036 | 91 | 3.81 | 41.8 | 2861.1 | 305.58 | 0.0321 |
| 1000 | 1151 | 91 | 4.01 | 44.1 | 3179 | 339.53 | 0.0289 |
| 1120 | 1289 | 91 | 4.25 | 46.7 | 3560.5 | 380.27 | 0.0258 |
| 1250 | 1439 | 91 | 4.49 | 49.4 | 3973.7 | 424.41 | 0.0231 |
Drawing:
FAQ:
Q1: What is the brand name of the Bare Aluminum Conductor?
A1: The Bare Aluminum Conductor is manufactured by Zhenglan Cable.
Q2: What model number corresponds to the Bare Aluminum Conductor?
A2: The model number for the Bare Aluminum Conductor is All Aluminium Alloy Conductors (AAAC).
Q3: Where is the Bare Aluminum Conductor produced?
A3: The Bare Aluminum Conductor is made in China.
Q4: What are the key features of the All Aluminium Alloy Conductors (AAAC)?
A4: The AAAC conductors offer high strength, lightweight design, excellent corrosion resistance, and efficient electrical conductivity, making them ideal for power transmission and distribution.
Q5: Can the Bare Aluminum Conductor be used for overhead power lines?
A5: Yes, the Bare Aluminum Conductor (AAAC) is specifically designed for overhead power lines due to its durability and reliable conductivity.
