ASTM B399 Standard Factory Direct Sales Of Current Aluminum AAAC Conductor Overhead Transmission Lines For Construction
Product Description:

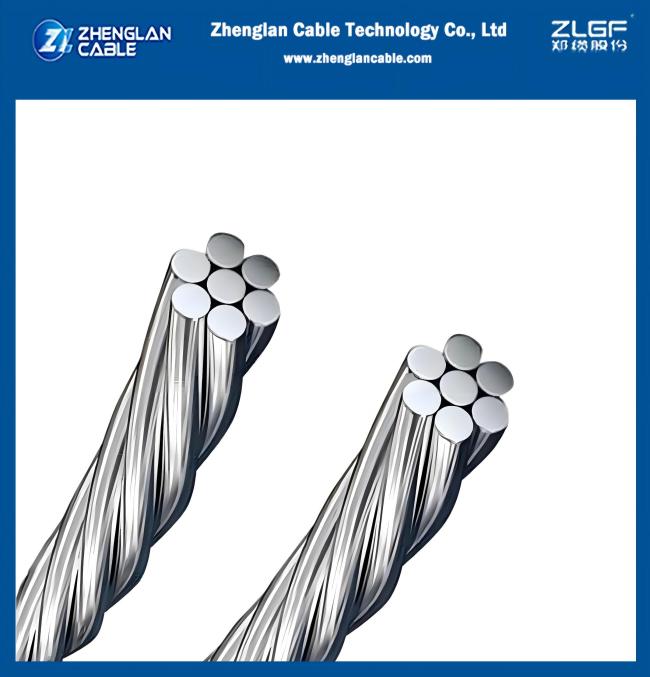

All-aluminum alloy conductor is a concentric stranded conductor made of aluminum alloy wire, typically 6201-T81 aluminum alloy wire, and can be made into single-layer or multi-layer structures depending on the requirements.
Applications:
AAAC are mainly used for overhead lines, in transmission and distribution electrical networks, having relatively long spans. It has a high tensile strength, good corrosion resistance, light weight, and comparable current-carrying capacity. They are also used as a messenger to support overhead
Standards:
ASTM B 399/B 399M, IEC 61089, BS EN 50182, AS 1531, DIN 4820, BS EN 50183, BS 3242, NF C 34-125, GB/T 1179
Conductor:
Hard-drawn aluminum alloy wire 6201
Technical Parameters:
| Code No. |
Area | No.Dia of Wires | Approx. Overall Dia. |
Approx. Weight |
Breaking Load |
Max. DC Resistance at 20℃ |
| mm2 | No./mm | mm | kg/km | kN | Ω/km | |
| 6 | 13.2 | 7/1.55 | 4.65 | 36.2 | 4.18 | 2.5361 |
| 4 | 21.1 | 7/1.96 | 5.88 | 57.9 | 6.69 | 1.586 |
| 2 | 33.5 | 7/2.47 | 7.41 | 92 | 10.6 | 0.9987 |
| 1/0 | 53.5 | 7/3.12 | 9.36 | 146.8 | 17 | 0.62592 |
| 2/0 | 67.3 | 7/3.50 | 10.5 | 184.8 | 20.4 | 0.49738 |
| 3/0 | 84.9 | 7/3.93 | 11.79 | 233 | 25.7 | 0.3945 |
| 4/0 | 107 | 7/4.42 | 13.26 | 294.7 | 32.5 | 0.31188 |
| 250 | 126 | 19/2.91 | 14.55 | 346.7 | 38.8 | 0.26509 |
| 300 | 152 | 19/3.19 | 15.95 | 416.7 | 46.6 | 0.22059 |
| 350 | 178 | 19/3.45 | 17.25 | 487.3 | 52 | 0.1886 |
| 400 | 203 | 19/3.69 | 18.45 | 557.5 | 59.5 | 0.16486 |
| 450 | 228 | 19/3.91 | 19.55 | 626 | 66.8 | 0.14683 |
| 500 | 253 | 19/4.12 | 20.6 | 695 | 74.2 | 0.13224 |
| 550 | 279 | 37/3.10 | 21.7 | 766.2 | 83.9 | 0.11995 |
| 600 | 303 | 37/3.23 | 22.61 | 831.9 | 91 | 0.11049 |
| 650 | 330 | 37/3.37 | 23.59 | 905.5 | 94.9 | 0.1015 |
| 700 | 354 | 37/3.49 | 24.43 | 971.2 | 101 | 0.09464 |
| 750 | 381 | 37/3.62 | 25.34 | 1045 | 109 | 0.08796 |
| 800 | 404 | 37/3.73 | 26.11 | 1109 | 116 | 0.08285 |
| 900 | 456 | 37/3.96 | 27.72 | 1250 | 131 | 0.07351 |
| 1000 | 508 | 37/4.18 | 29.26 | 1393 | 146 | 0.06597 |
| 1250 | 631 | 61/3.63 | 32.67 | 1732 | 179 | 0.05306 |
| 1500 | 759 | 61/3.98 | 35.82 | 2082 | 215 | 0.04414 |
| 1750 | 886 | 61/4.30 | 38.7 | 2431 | 251 | 0.03781 |
Drawing:
FAQ:
Q1: What is the brand name of the Bare Aluminum Conductor?
A1: The Bare Aluminum Conductor is manufactured by Zhenglan Cable.
Q2: What model number is assigned to this Bare Aluminum Conductor?
A2: The model number for this product is All Aluminium Alloy Conductors (AAAC).
Q3: Where is the Bare Aluminum Conductor produced?
A3: This product is made in China.
Q4: What are the main applications of the All Aluminium Alloy Conductors (AAAC)?
A4: The AAAC is primarily used for overhead power transmission lines due to its high conductivity and corrosion resistance.
Q5: What advantages does the Bare Aluminum Conductor offer compared to other conductors?
A5: The Bare Aluminum Conductor offers excellent corrosion resistance, lightweight properties, and high strength, making it ideal for overhead electrical transmission.
Why Choose Zhenglan Cable::
Our medium voltage cables are manufactured using the monosil process with state-of-the-art facilities and rigorous quality control procedures. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of finished insulation materials.
1. OEM/ODM services available
2. Compliance with GB, IEC, BS, ASTM, DIN, VDE, and JIS standards; custom requirements accepted
3. Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
4. $30 million registered capital with 60,000㎡ factory area
5. Advanced testing equipment with 100% pre-shipment inspection
6. Ample stock inventory with guaranteed efficient shipping
7. Professional pre-sales and after-sales support
