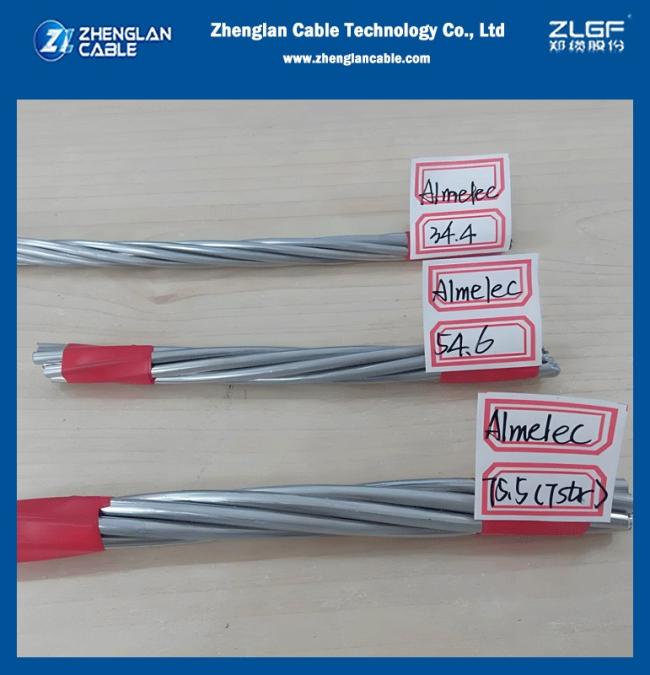

Transmission Lines Bare Aluminum Conductor Offering AAAC 7/19/37/61/96/127 All Aluminum Alloy Wire Core Material Designed for Power Delivery with NF C 34-125 Standards
Product Description:
All-aluminum alloy conductor is a concentric stranded conductor made of aluminum alloy wire, typically 6201-T81 aluminum alloy wire, and can be made into single-layer or multi-layer structures depending on the requirements.
Applications:
AAAC are mainly used for overhead lines, in transmission and distribution electrical networks, having relatively long spans. It has a high tensile strength, good corrosion resistance, light weight, and comparable current-carrying capacity. They are also used as a messenger to support overhead
Standards:
ASTM B 399/B 399M, IEC 61089, BS EN 50182, AS 1531, DIN 4820, BS EN 50183, BS 3242, NF C 34-125, GB/T 1179
Conductor:
Hard-drawn aluminum alloy wire 6201
Technical Parameters:
| Code Name |
No.Dia of Wires | Approx. Overall Dia. |
Approx. Weight |
Breaking Load |
Max. DC Resistance at 20℃ |
| No./mm | mm | kg/km | kN | Ω/km | |
| 22-AL4 | 7/2.00 | 6.0 | 60.0 | 7.15 | 1.4989 |
| 34-AL4 | 7/2.50 | 7.5 | 93.8 | 11.17 | 0.9593 |
| 55-AL4 | 7/3.15 | 9.5 | 148.9 | 17.73 | 0.6042 |
| 76-AL4 | 19/2.25 | 11.3 | 207.4 | 24.55 | 0.4388 |
| 117-AL4 | 19/2.80 | 14.0 | 321.2 | 38.02 | 0.2833 |
| 148-AL4 | 19/3 15 | 15.8 | 406.5 | 48.12 | 0.2239 |
| 182-AL4 | 37/2.50 | 17.5 | 500.3 | 59.03 | 0.1831 |
| 228-AL4 | 37/2.80 | 19.6 | 627.6 | 74.04 | 0.1460 |
| 288-AL4 | 37/3.15 | 22.1 | 794.3 | 93.71 | 0.1154 |
| 366-AL4 | 37/3.55 | 24.9 | 1008.9 | 115.36 | 0.0908 |
| 570-AL4 | 61/3.45 | 31.1 | 1576.0 | 185.33 | 0.0585 |
| 851-AL4 | 91/3.45 | 38.0 | 2360.7 | 276.47 | 0.0394 |
| 1144-AL4 | 91/4.00 | 44.0 | 3173.4 | 360.22 | 0.0293 |
| 1596-AL4 | 127/4.00 | 52.0 | 4427.5 | 502.72 | 0.0210 |
Drawing:
FAQ:
Q1: What brand manufactures the Bare Aluminum Conductor?
A1: The Bare Aluminum Conductor is manufactured by Zhenglan Cable.
Q2: What is the model number of the Bare Aluminum Conductor?
A2: The model number for this product is All Aluminium Alloy Conductors (AAAC).
Q3: Where is the Bare Aluminum Conductor produced?
A3: The Bare Aluminum Conductor is made in China.
Q4: What are the main applications of the All Aluminium Alloy Conductors (AAAC)?
A4: AAAC is primarily used for overhead power transmission and distribution lines due to its high strength and corrosion resistance.
Q5: What are the advantages of using AAAC compared to traditional aluminum conductors?
A5: AAAC offers higher mechanical strength, better corrosion resistance, and improved conductivity, making it suitable for long-span overhead lines with less sag.
Why Choose Zhenglan Cable:
Our medium voltage cables are manufactured using the monosil process with state-of-the-art facilities and rigorous quality control procedures. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of finished insulation materials.
1. OEM/ODM services available
2. Compliance with GB, IEC, BS, ASTM, DIN, VDE, and JIS standards; custom requirements accepted
3. Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
4. $30 million registered capital with 60,000㎡ factory area
5. Advanced testing equipment with 100% pre-shipment inspection
6. Ample stock inventory with guaranteed efficient shipping
7. Professional pre-sales and after-sales support
