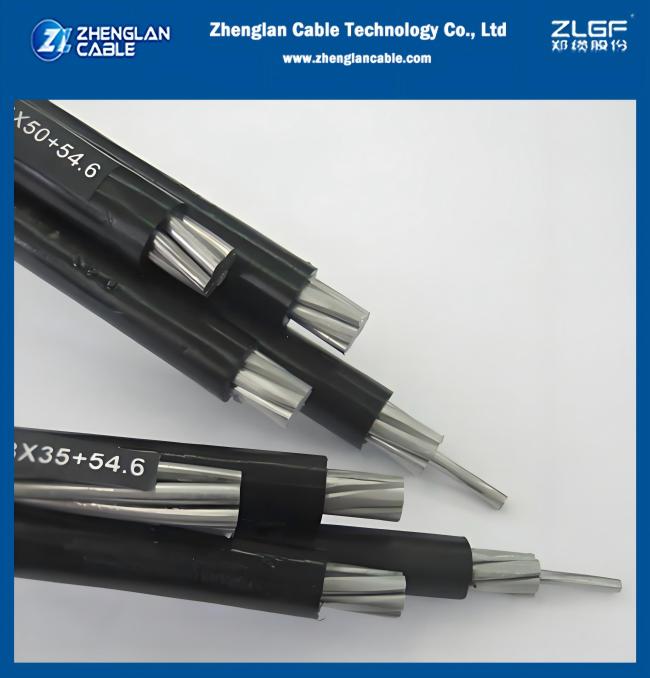

0.6/1kv Low Voltage Aerial Bundled Cable Aluminum+aluminum alloy Conductor AAC/XLPE+AAAC/XLPE ABC 3x25+54.6mm2 NFC33-209
Price:
Negotiable
MOQ:
1000-5000m depends on the specificaion
Delivery Time:
10 days
Brand:
Zhenglan Cable
Product Description
ABC Cable 3x50+54.6mm2 Application
Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight. To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated or 90°C for cross linked.

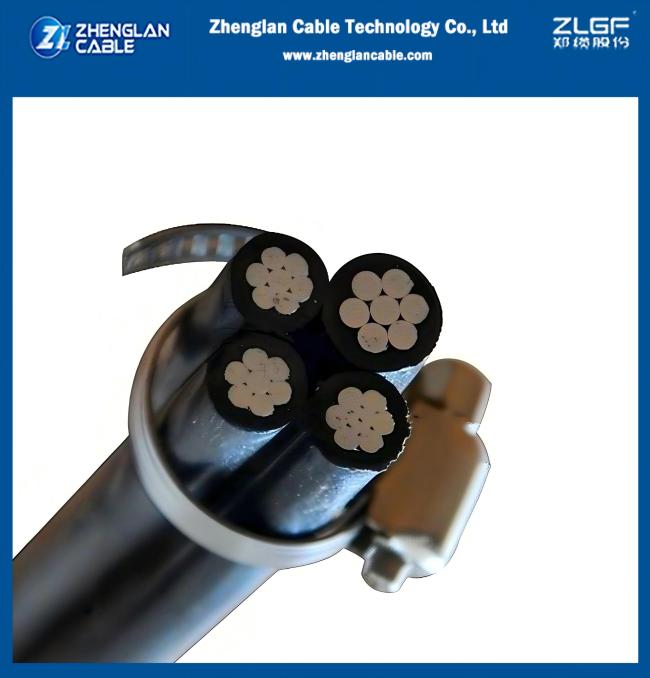

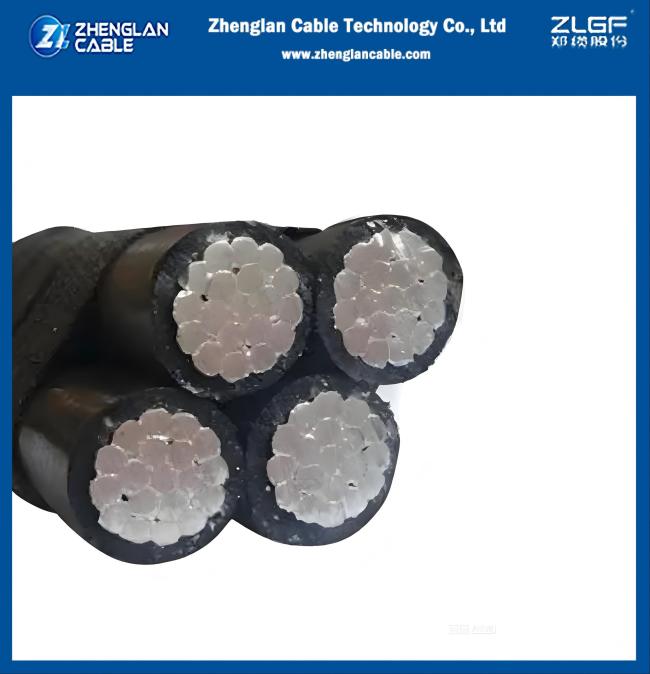

CONSTRUCTION :
Phase Conductor
Multistrand round compacted hard drawn Aluminium conductor is insulated with black weather resistantcross-linked thermosetting polyethylene (XLPE).
Neutral Messenger
Multistrand round Aluminium Alloy conductor is insulated with black weather resistant cross-linked thermosettingpolyethylene (XLPE).
Public Lighting Conductor
Multistrand round compacted hard drawn Aluminium conductor is insulated with black weather resistantcross-linked thermosetting polyethylene (XLPE) conforming to NFC 33-209.
Cable 3x50+54.6mm2 data sheet
| Aerial Bundle Cable 3x50+54.6mm2 | ||
| Phase conductor | ||
| Cross section area | mm2 | 50 |
| Number of wires | No | 7 |
| Insulation thickness | mm | 1.6 |
| D.C. Resistance at 20℃ | Ω/km | 0.641 |
| Messager conductor | ||
| Cross section area | mm2 | 54.6 |
| Number of wires | No | 7 |
| Insulation thickness | mm | 1.6 |
| D.C. Resistance at 20℃ | Ω/km | 0.63 |
| Minium Breaking Strength | daN | 1660 |
| Cable Overall Diameter | mm | 36 |
| Cable Weight | kg/km | 730 |
