1KV 4x50+25mm2 STA armored aluminum cable XLPE insulated PVC sheathed IEC60502-1
Price:
Negotiable
MOQ:
500 meters
Delivery Time:
7-10 working days
Brand:
Zhenglan cable
Product Description
1KV 4x50+25mm2 STA armored aluminum cable XLPE insulated PVC sheathed IEC60502-1
1KV 4x50+25mm2 STA armored aluminum cable XLPE insulated PVC sheathed IEC60502-1 are cable armored with galvanized double steel tape (STA) which give it mechanical strength to protect it from external pressures that fall on the cable.

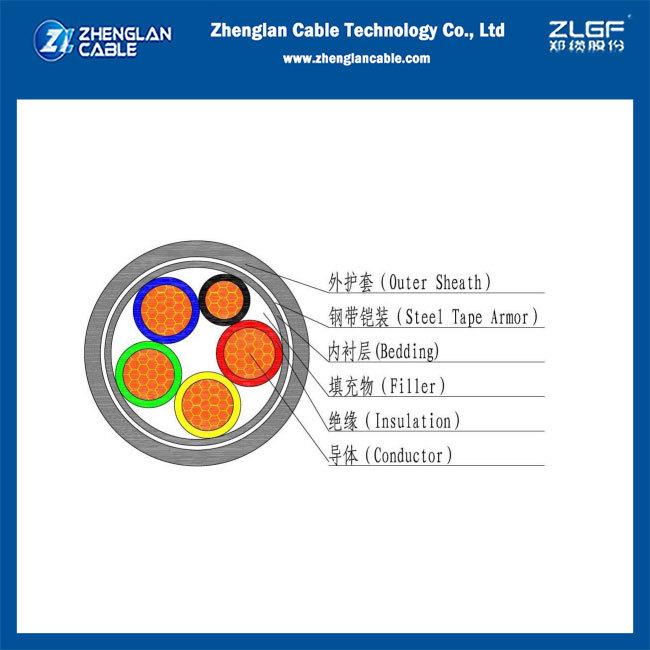

Construction & Features
- Conductor: Stranded Aluminum
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Double Steel Tapes (STA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4.5 (4 Core + Neutral Line)
- Operating temperature: -15°C to +90°C
Key Advantages
- Mechanical Protection: Robust protection against cutting, impact, and abrasion
- Cost-Effective: Aluminum conductors offer a lighter, more economical alternative to copper, especially for large sizes
- Versatility: Ideal for both indoor and outdoor applications, above or below-ground installation
1KV 4x50+25mm2 STA armored aluminum cable XLPE insulated PVC sheathed IEC60502-1 Technical Specifications
| Cable Section | Nominal Thickness Insulation (mm) | Nominal Thickness Insulation (mm) | Nominal Thickness of Sheath (mm) | Appro. weight (kg/km) | Approx Overall Diameter (mm) | Max. DC-resist Conductor 20℃ (Ω/km) |
|---|---|---|---|---|---|---|
| 4x50+1x25mm² | Phase line: 1.0mm | neutral line: 0.9mm | 1.9 | 975 | 31.5 | 0.641 |
Manufacturer Information
Zhenglan Cable Technology Co., Ltd is a professional cable and wire manufacturer with over 20 years of experience. Our 60,000 square meter factory is located in Wuzhi County, Jiaozuo City, Henan Province, China.
Product Range
- Overhead transmission line bare conductors (ACSR, AAC, AAAC)
- 1-35kV overhead transmission line insulated conductors
- 0.6/1kV, 1.8/3kV PVC/XLPE/PE insulated LV power cables
- 3.6/6kV to 26/35kV XLPE insulated MV power cables
- 300/300V to 450/750V control cables and house wires
Frequently Asked Questions
Is your company a factory or a trade company?
We are a factory with more than 20 years of manufacturing experience in China.
How long can I expect to get the sample?
Samples are ready for delivery in 3-7 days after payment confirmation. Delivery takes 3-7 days via express service.
What are your payment terms?
Standard terms: T/T 30% deposit, 70% balance before delivery. Trade assurance and other payment methods available.
What's the delivery time?
Sample orders: 3-5 days. Formal orders: 7-30 days after payment, depending on quantity.
What is your MOQ?
Minimum order quantity is typically 500 meters.
