LXS Aluminium Conductor Aerial Bundled Cable 3×70+54.6+16 mm² 0.6/1kV ABC cable NP 3528/ NF C 33-209
LXS ABC cable is a low-voltage aerial bundled conductor manufactured to NFC33-209 and NP 3528 standards, widely specified by EDP and other Portuguese-utility projects. Rated 0.6/1 kV, this cable replaces traditional bare twisted open-wire lines, reducing fault rates from tree contact, wind-induced phase-to-phase shorts, and theft. The self-supporting design eliminates the need for separate messenger wire, simplifying pole-to-pole installation.
Applications:
Primary and secondary low-voltage overhead distribution networks; rural electrification and agricultural supply where underground cabling is cost-prohibitive; street-lighting circuits fed from the same aerial span; coastal and high-humidity regions requiring corrosion-resistant aerial conductors; orchard and plantation areas where vegetation management makes bare conductor unsafe. Suitable for utilities and contractors working to Portuguese (EDP), French (ENEDIS reference) and West African overhead distribution specifications.
Construction:
|
Component |
Material / Specification |
Thickness |
|
Phase conductor ×3 |
Aluminium, Class 2 compact stranded, 3×70 mm² |
IEC 60228 |
|
Phase insulation |
XLPE, black, UV-stabilised |
1.8 mm |
|
Neutral messenger |
AAAC (AlMgSi), 54.6 mm², 7×3.15 mm |
IEC 60228 |
|
Messenger insulation |
XLPE, black |
1.6 mm |
|
Street-lighting conductor |
Aluminium, Class 2, 1×16 mm² |
IEC 60228 |
|
Lighting insulation |
XLPE, black |
1.2 mm |
|
Assembly |
Phase + lighting + insulated messenger twisted together |
Self-supporting bundle |
Electrical & Mechanical Characteristics:
|
Parameter |
Value |
Note |
|
Rated voltage U0/U |
0.6/1 kV |
NFC33-209 / NP 3528 |
|
Test voltage (50 Hz, 5 min) |
4 kV |
Type & routine |
|
Configuration |
3×70+54.6+16 mm² |
3 phase + insulated neutral messenger + lighting |
|
DC resistance at 20°C (phase) |
≤ 0.443 Ω/km |
70 mm² Al |
|
DC resistance at 20°C (messenger) |
≤ 0.630 Ω/km |
54.6 mm² AAAC |
|
DC resistance at 20°C (lighting) |
≤ 1.91 Ω/km |
16 mm² Al |
|
Insulated messenger outer diameter |
≈ 12.8 mm |
54.6 mm² + 1.6 mm XLPE |
|
Phase core outer diameter |
≈ 13.5 mm |
70 mm² + 1.8 mm XLPE |
|
Lighting core outer diameter |
≈ 7.2 mm |
16 mm² + 1.2 mm XLPE |
|
Bundle overall diameter (approx.) |
≈ 40–42 mm |
Depends on lay pitch |
|
Weight (approx.) |
≈ 1220 kg/km |
Excl. drum |
|
Messenger breaking load (min.) |
≈ 16.6 kN |
AAAC 54.6 mm² |
|
Max. conductor temp. (normal) |
90°C |
XLPE |
|
Max. conductor temp. (short-circuit) |
250°C |
≤5 s |
|
Min. installation temp. |
−5°C |
NFC33-209 |

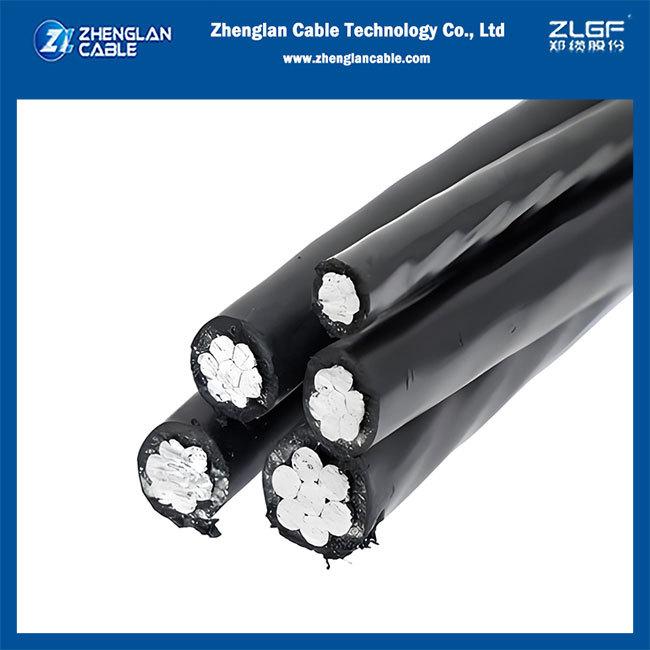

Product images
