Low Speed High Torque Hydraulic Motor Replace Rexroth MCR05 MCRE05

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 7 days

Brand: Helm Tower Hydraulic

Product Description

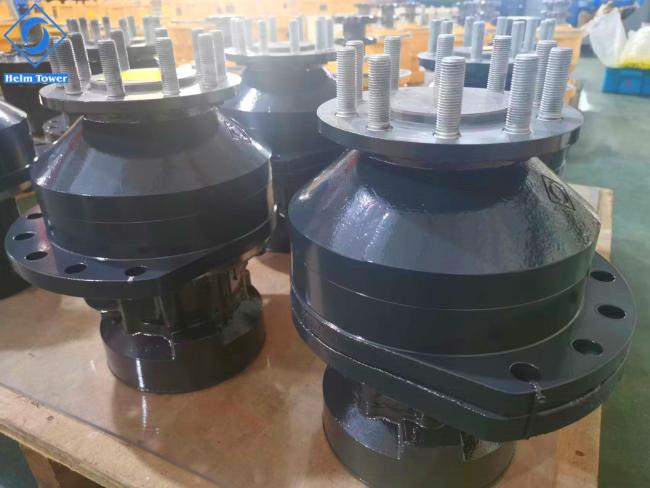

Low Speed High Torque Hydraulic Motor Replace Rexroth MCR05 MCRE05

Product Features:

MCR05 Hydraulic Wheel Motor:

1) Incurve radial piston type.
2) Designed in control modules, combine freely.
3) High efficiency, High pressure, low noise.
4) Radial piston, Low speed, High torque.

5) Application:

Mining Machinery: Coal Winning Machine, Road Header, Heavy Duty Handling Car, Coal Mine Drill.

Engineering Machinery: Skid Steer Loader, Break Machine.

Code	MCR05
Displacement Group	8	0	1	2
Displacement(ml/r)	380	470	520	565
Theoretical torque at 10 MPa(N.m)	604	747	826	890
Rated speed(r/min)	160	125	125	125
Rated pressure(Mpa)	25	25	25	25
Rated torque(N.m)	1240	1540	1700	1850
Max pressure(Mpa)	31.5	31.5	31.5	31.5
Max torque(N.m)	1540	1900	2100	2290
Speed range(r/min)	0-475	0-385	0-350	0-320
Max power(kW)	29

Code	MCRE05
0Displacement Group	9	0	1	2
Displacement(ml/r)	620	680	750	820
Theoretical torque at 10MPa(N.m)	985	1080	1192	1302
Rated speed(r/min)	125	100	100	100
Rated pressure(Mpa)	25	25	25	25
Rated torque(N.m)	2030	2230	2460	2690
Max pressure(Mpa)	31.5	31.5	31.5	31.5
Max torque(N.m)	2510	2750	3040	3320
Speed range(r/min)	0-290	0-265	0-240	0-220
Max power(kW)	35
