Portable Veterinary Diagnostic Equipment

Portable chemical analyzer, Clinical chemistry automated machines, Analyzer blood​

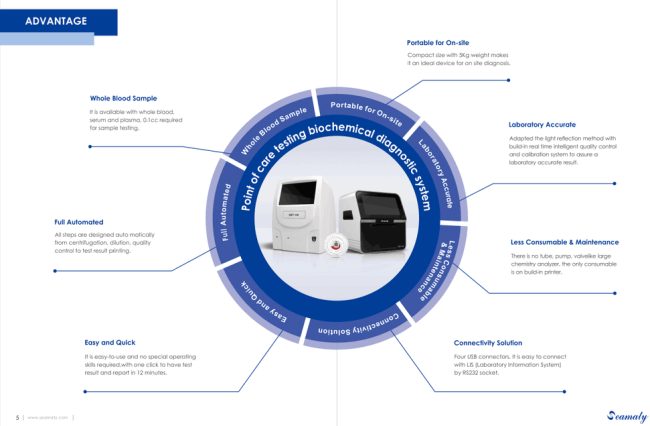

Advantages:

1. Accurate Result
2. With the photoelectric colorimatric principle,
3. Dry biochemistry analyzar adapted the light retlectlon method. The volume of test
sample and dllutlon Is guaranteed by mould, wIthout random error and cross contamlnatlon, little sample volume required
4. Sample volume)  0nly 90-100ul

5. Easy to carry: 0.02ni', 5Kg
6. The analyzer is designed in portable
7. Eight space saving, using it anywhere at anytime.
8. There is no extra consumable needed, such as tube: pump, valw, savIng your maIntenance expense.


SMT-120V veterinary chemistry analyzer is based on embedded system, used with recommended reagent disc to detect the concentration of ALT, TP, UREA and other liquids which adapts test methods of end-point, rate, two-point and eight-wavelength synchronous detection.It is easy to use.,of which the operator only need to collect blood samples (heparin lithium anticoagulation of whole blood, plasma or serum) with 90-120 μl
,then add them into the reagent disc rotor and insert the rotor into analyzer to accomplish the testing automatically with immediately printing out result.

In order to prepare for a second review,it is recommended that the operator collects not less than 250 μl of sample at a time.There are two USB ports of analyzer for connecting external devices, such as printer, mouse,keyboard etc.

It will take 12 minutes to finish a test and the report will be printed out immediately and automatically after testing.

Product name: SMT-120V Fully Automated Veterinary Chemistry Analyzer

Model No.: SMT-120V

Size: 191*213*220mm

Accessories: power adapter, power cord and pipettor.

Functions:

1. 7 inches TFT touch screen
2. Advanced optlcaltestlng system wIth bullt-ln 8 fllters
3. Testing method: end point, rate, fixed time, turbidimetry etc
4. Sample avallable for whole blood, serum and plasma
5. Freeze-drying reagent for ttingle u8e, life8pan at one year type raagant discs for the vetarinary
6. Storage capaclty up t0 100,000 patient records
7. IntellIgent real-tlme qualIty control
8. Support external USB mouso and keyboard
9. Built-in thsrmal printer

Specification:

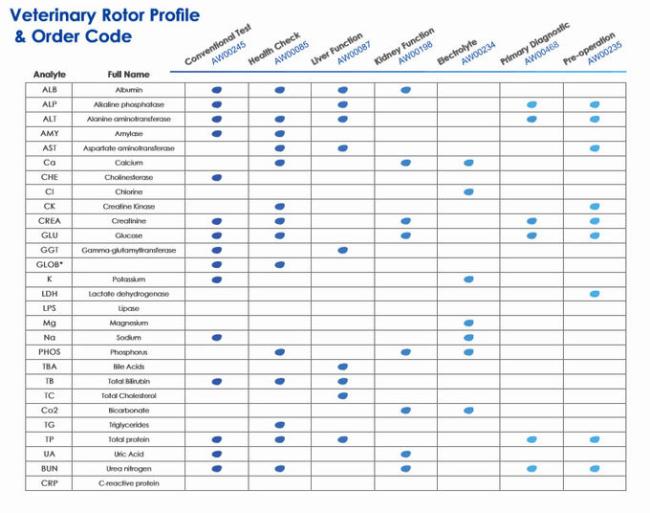

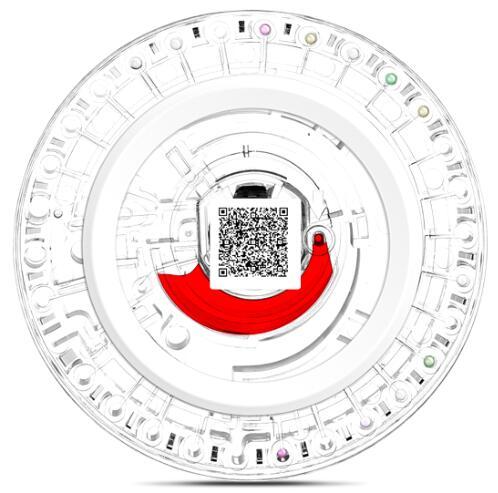

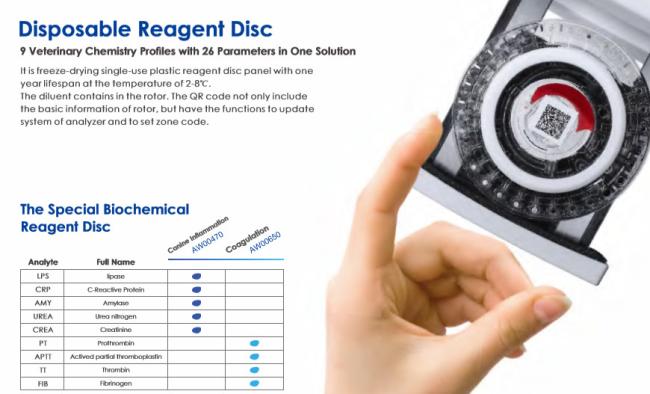

Reagent Disc

Company's mission

The mission of Seamaty is to make diagnosis closer to the patient, not only in the way of point of care, but affordable. To be closer with internal and external partners is as our company value synonymous with our mission. The analyzer was originally developed in the previous company where Mr. Peng Ran, the founder of Seamaty, worked at, but it come out nothing after a year trying and this project has been shelved. As the head for this project back to that time, Mr. Ran did not give up and decided to continue it, because he felt the obligation to bring this brand new experience, point of care, to the primary health care in diagnosis. After years development, Seamaty launched this easy to use, quick, accurate and cost-effectivepoint of care chemistry analyzer. Soon we developed veterinary version for our close companions, trying to make a contribution on their health care.
Seamaty is credited as high-tech enterprise and passed ISO 13485:2012 quality management system for medical device manufacturer certied by TUV and our products are CE listed.

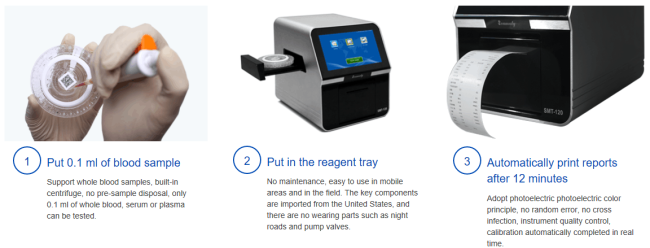

Easy 3-steps Operation

All steps are automated, and you can quickly get lab-accurate blood tests in just three easy steps.
