Clinical Fully Automatic Animal Blood Chemistry Analyzer Portable For IVD
Clinical Full Automatic Animal Blood Biochemistry Analyzer,Portable IVD
Specification:
| Sample Type | Lithium Heparin Anticoagulant whole blood, serum and plasma |
| Sample Volume | 90-120ul |
| Bar Code | Two-dimensional bar code automatically read |
| Testing Time | 12 minutes/sample |
| Testing Principle | Absorption spectroscopy, transmission turdimetry |
| Testing Method | End point, rate, fixed time |
| Temperature | 37℃±0.2℃ |
| Absorbance | 0－3.0Abs |
| Resolution | 0.0001Abs |
| Carryover | 0 |
| QC & Calibrate | Auto and real-time to complete |
| Work Environment | Temperature:10-32℃ Humidity:<85% |
| Light Source | 12V/20W, halogen lamp with lifespan over 2500hours |
| Optic System | After the filter spectral, 8 wave length synchronous detection: 340,405,450,505,546,600,630,850nm |
| Power Adapter |
Input: AC100 V-240,50-60 Hz Output: 15V 7.0A,105 W Max |
| Display | 6.5 inch multi-touch screen. Android system. Multi-language support |
| Storage | 4 GB ROM. 10000 PCS data |
| Printer | Built-in thermal printer |
| IT Connection | 2 USBs |
| Weight | 4.2 Kg of the analyzer, 0.6 Kg of power adapter |
Brief Introduction:

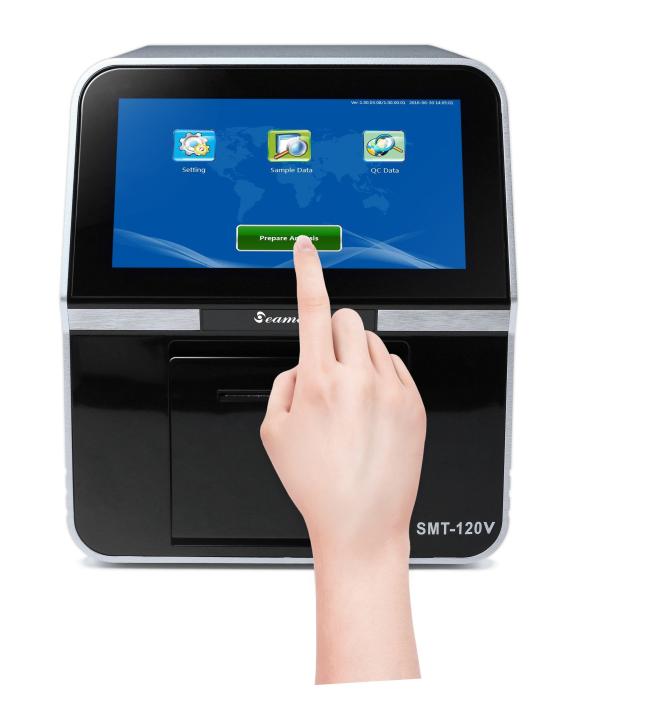

Product name: SMT-120V Fully Automated Veterinary Chemistry Analyzer
Model No.: SMT-120V
Size: 191*213*220mm
Net weight: 4.2Kg
Accessories: power adapter, power cord and pipettor.
SMT-120V veterinary chemistry analyzer is based on embedded system, used with recommended reagent disc to detect the concentration of ALT, TP, UREA and other liquids which adapts test methods of end-point, rate, two-point and eight-wavelength synchronous detection.It is easy to use.,of which the operator only need to collect blood samples (heparin lithium anticoagulation of whole blood, plasma or serum) with 90-120 μl
,then add them into the reagent disc rotor and insert the rotor into analyzer to accomplish the testing automatically with immediately printing out result.
In order to prepare for a second review,it is recommended that the operator collects not less than 250 μl of sample at a time.There are two USB ports of analyzer for connecting external devices, such as printer, mouse,keyboard etc.
It will take 12 minutes to finish a test and the report will be printed out immediately and automatically after testing.
Advantages:
SMT - 120V is a completely new and fully automated animal biochemical analyzer for animal health diagnosis, accurate reference Laboratory results.
- Single test up to 23 parameters
The single test quantity has been enlarged form previous 14 to present 23 parameters. It’s unique
- Better User Experience
Android system with 6.5 inch multi-touch screen,user-friendly interface.Multiplied languages are available
- More Compact and Lighter
The dimension at 19*21*22CM, weight at 4.2Kg
- New Design Appearance
Brand new design, updated plastic to aluminium alloy,more durable
- Accurate Result
With the photoelectric colorimetric principle, it has advantages over dry biochemistry analyzer adapted the light reflection method.
The volume of test sample and dilution is guaranteed by mould,without random error and cross contamination.
- Little Sample Volume Required
Sample volume is only 1/10-1/20 of traditional chemistry analyzer.
- Easy to Carry
0.02m3, 5Kg. The analyzer is designed in portable and space saving, using it anywhere at anytime.·
- Less Maintenance
There is no extra consumable needed, such as tube, pump, valve, saving your maintenance expense.
Easy 3-steps Operation
All steps are automated, and you can quickly get lab-accurate blood tests in just three easy steps.
