1000mm Railway Wheel Set For Wagons 22.9T Axle Load Wagon Wheelset

1000mm wheelset For Wagon Bogie, Wagon wheelset

Railway Wheel Set 1000mm Wheelset Comply With IRS-R19/93 Railroad Wagon Wheelset

1000mm Wheelset

Details:

Brand:Railteco

Country of origin:China

Application:For Wagon wheelset

Axle load:22.9t

Certificate: RDSO approved, BV Inspection

Process:Forging

Warranty:5 years

Price:Negotiable

Payment:T/T or L/C

Supply ability: 1500/per month

Period for delivery: (In Railteco)Around 45-60 days

Regular packing:Pallet(wheelset without bearing and axle box, one 20GP container can load 12units wheelset)

Wheelsets ,gauge 1676 mm, with monoblock wheels of 1000 mm ,for axle load of 22.9 tons according to IRS-R19/93 Part 1.

Standard:IRS-R19/93

Mark: According to customer 's drawing and requirements

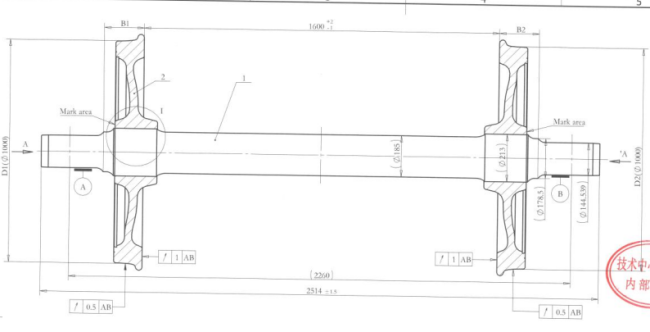

Main technical characteristics :

- gauge 1676 mm

- total axle length 2514 (+1/-1 ) mm

- Journal center distance  2260 mm

- distance between the 2 wheels pressed on axle: 1600 (+1/-1)

- wheelset weight abt . 1413 kg

- wheel rolling diameter of 1000 (+3/0 ) mm

- wheel’s rim width 127 (+1/-1 ) mm

- thickness of web:

- at connection with hoop 20 (+2/-0 ) mm

- at connection with nave 25 (+2/-0 ) mm

- external diameter of hub on the side opposing the lip of 240 (+4/-0) mm

- external diameter of hub on the lip side of 240 (+4/-0) mm

- length of hub : 190 (+3/-0) mm

- axle body diameter of 185 (+2/-0) mm

- nominal wheel pressing-on the -axle diameter of 200 mm

- total axle length 2514 (+1/-1 ) mm

- axle journal diameter of 144(+0.239/+0.264) mm

- axle journal length 277 (+0.5/- 0.5) mm

- axle obturator diameter f 160 t7 (+0.174/+0.134) mm

- obturator length 58 (+1/-0) mm

- nominal wheel pressing-on the -axle diameter of 200 mm
