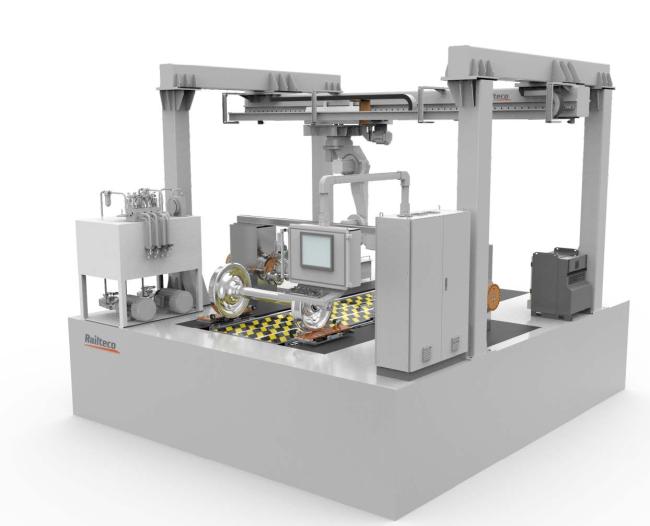

Type WYP Wheel Press Machine intelligent press-fitting unit for rolling bearings of motor cars

Wheel Press Machine WYP - Bearing Press-Mounting Machine for rolling bearings of motor cars

Description of WYP Wheelset Bearing Press Machine:

WYP type rolling bearing intelligent press-fitting unit is suitable for automatic press-fitting of rolling bearings of metro and moving wheels.
The pressing unit is mainly composed of rolling bearing pressing machine, wheel feeding mechanism, hydraulic system, electric control system and bucket robot.

When working, the robot pre-installs the bearings, the wheel sending mechanism sends the wheel pairs into and out of the station, the press-fitting machine automatically presses the bearings, generates the press-fitting curves, judges the press-fitting results, and connects the press-fitting information.
The whole process is controlled by computer, and the automatic operation of bearing pressing is realized. The equipment has applied for four national invention patents and entered the actual trial stage, and has been authorized by three national utility model patents.

Parameters of Wheelset Bearing Press Machine:

1. Applicable gauge: 1435mm

2. Applicable axle length: 2000mm-2400mm

3. Applicable wheel diameter: φ700mm-φ960mm

4. Applicable bearing inner diameter: φ120mm-φ160mm

5. Applicable work-piece weight: 2500kg

6. Max. mounting force: 600kN

7. Press-Mounting beat: ≤6min/pair

8. Equipment total power: 40kW

9. Net weight: 8500kg

10. Overall dimensions: 4930x1200x2100mm
