600kN Railway Workshop Equipment Bull Gear Press Mounting Machine

Railway Workshop Equipment CYJ - Bull Gear Press-Mounting Machine Wheel Gear Pressing Machine

Description of Wheelset Bull Gear Press:

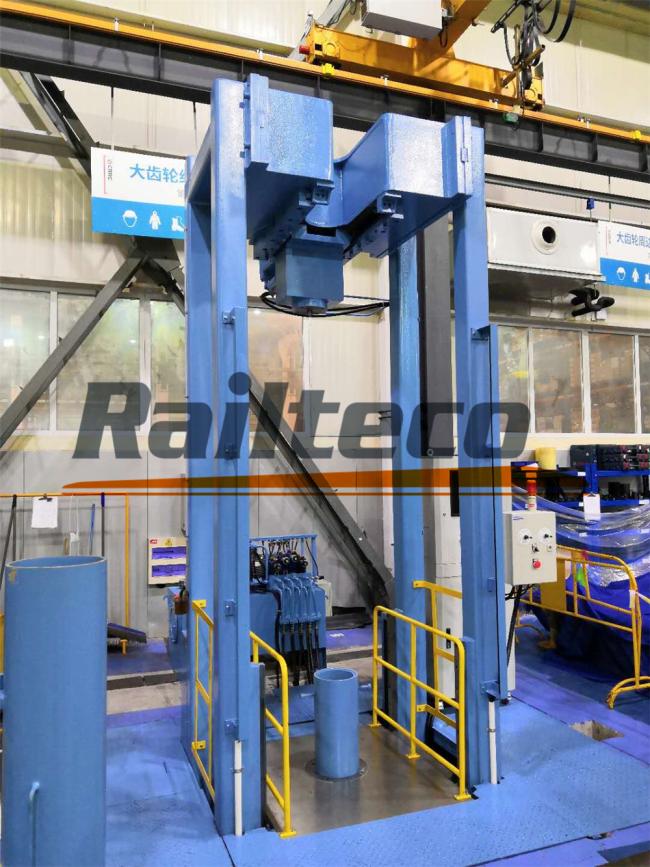

CYJ - Bull Gear Press-Mounting Machine is a special equipment designed for the compaction of split type gearboxes and gear around accessories of the railway vehicles, subways, and light rail wheelsets as well as the assembly of driven gears and bull gears. The vertical side pull plate gantry frame structure design layout has the advantages of high strength, stable and accurate equipment operation, easy operation, safety and reliability, convenient for material loading and unloading, and small on-site floor space, which is convenient for operators to observe and operate. According to the different axle types, the most suitable press force can be selected.

The structure of the whole device is compact, and the connection between materials loading and unloading and the material system is reasonable. Its advanced level and automation level are already the domestic leading level. The machine adopts both computer and manual control, with functions of input and output of various related data and real-time monitoring.

Parameters of Wheelset Bull Gear Press:

1. Working pressure: nominal pressure 600kN (work pressure system can be set)

2. Working pressure of hydraulic system: 1-12MPa

3. Mounting hydraulic cylinder stroke: 750mm

4. Speed of press hydraulic cylinder piston rod: fast forward (adjustable): 5 - 20mm/sec

5. Working speed (adjustable): 0 -5mm/sec

6. Displacement sensor accuracy: 0.10mm

7. Applicable axle length: 2100 -2600mm

8. Max. working pressure on the top and bottom tips: 22-32kN (adjustable)

9. Voltage (three-phase): 380V/50Hz (±15%)

10. Noise level: ≤75dB

11. Working environment temperature: 5-35°C
