Multipurpose Four Axles Railway Bogie 1981mm Journal Center Distance
Price:
Negotiable
MOQ:
One pcs
Delivery Time:
4 months after advance payment
Brand:
Railteco
Product Description
Railway Bogie RTHZ19 Bogie Wagon Bogie Wheelset Bogie Four Axles Bogie
For Rail Engineering Vehicle Use

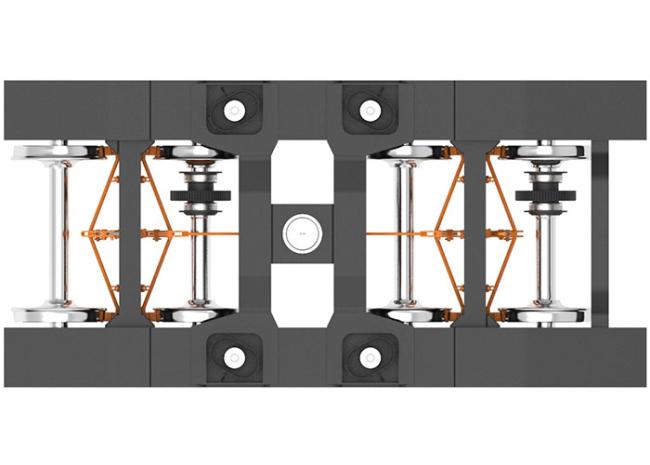

Description of Rail Engineering Vehicle Bogie RTHZ19:
This kind of bogie is mainly used in railway engineering vehicles for transporting rails and bridges. The bogie is four-axle welded frame type bogie consisting of a welded frame, two sets of power wheel sets and two sets of non-powered wheel sets, an axle box suspension device, a basic braking device, a lower side bearing device and other ancillary components.
Main Technical Data of Rail Engineering Vehicle Bogie RTHZ19:
| Gauge | 1435mm |
| Max. Axle Load | 25t |
| Tare Weight | ≤12t |
| Journal Center Distance | 1981mm |
| Max. Running Speed | 40km/h |
| Diameter of Wheel | Ø840mm |
