Meter Gauge 1000mm High Accuracy Railroad Axle
Railway Axle Class K Meter Gauge Railroad Freight Wagon Axle Train Axle Wagon Axle Bogie Axle AAR / GOST / TSI Axle
Description of Railway Axle:
Railway Axles are key components of railway rolling stock. Together with wheel, bearing, axle box, brake disc and gear system, can be assembled to be wheel set system for railway bogie.

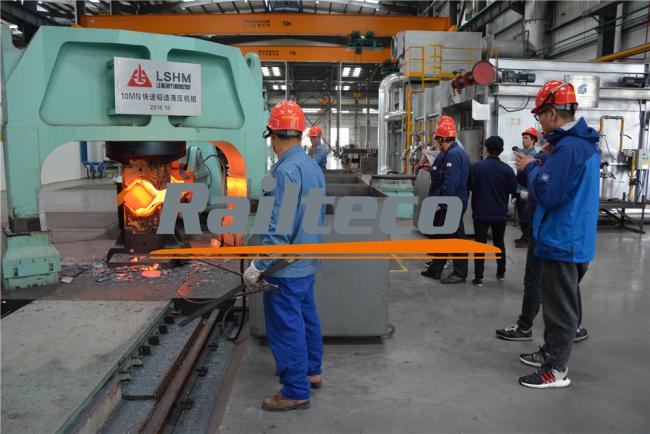

Railteco’s production control of axles starts from the re-inspection of the raw material axle steel, ensuring that the characteristics of the product meet the requirements of the user standard and the company's internal control. After qualified by the re-inspection process, the weight of each blank is accurately calculated by the software, and the automatic band saw is used to ensure the cutting accuracy. In order to ensure the forging quality, the pusher-type heating furnace is used to heat the axle steel before forging, and 10 sets of variable frequency natural gas burners are evenly distributed around the furnace to ensure uniform heating of the axle steel.
Freight Wagon Axle of Type K Meter Gauge
| Parameter | |
| Axle load | 32.4t |
| Rail Gauge | 1000mm |
| Axle length | 1756.6mm |
| Journal Diameter | 157.239mm |
| Wheel seat Diameter | 212.65mm |
| Bearing center distance | 1549.4mm |
| Standards | TB/T 2945, AAR M-101, UIC 811-1, EN 13261, BS 5892 PART 1, IRS 16/95, JIS E 4502, KSR 9220, GOST 31334, AS 7515 and other customer's requirement. |
