2181mm Length Railway Axle , Freight Wagon Axle 150mm Journal Diameter
Railway Axle Freight Wagon Type RE2B Axle For Standard Gauge Railroad Wagon Axles Train Axle Wagon Bogie Axle AAR / TSI Axle
Description of Railway Axle:
An axle is the component of a wheelset, a wheelset is the wheel–axle assembly of a railroad car.

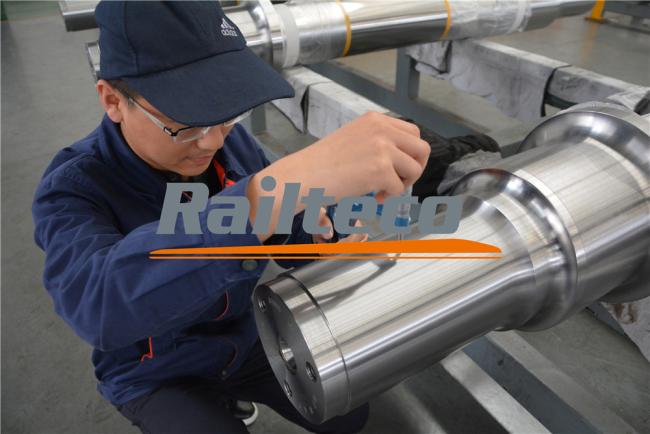

Railteco has professional performance testing equipment such as tensile testing machine, impact testing machine, metallographic microscope, direct reading spectrometer, and fully automatic grinding machine. It is equipped with professional inspectors to carry out physical and chemical properties on the heat-treated axle. Testing to ensure that qualified products enter the machining process.
Freight Wagon Axle of Type RE2B
| Parameter | |
| Axle load | 25t |
| Rail Gauge | 1435mm |
| Axle length | 2181mm |
| Journal Diameter | 150mm |
| Wheel seat Diameter | 210mm |
| Bearing center distance | 1981mm |
| Tests | Chemical analysis, Metallographic, Mechanical analysis, Ultrasonic testing, Magnetic testing, Impact testing, Hardness testing, Surface quality and dimension report. |
