Twin rib metal sheets roll forming m/c, Philippines standard design for roof panel making machine
Twin rib metal sheets roll forming m/c, Philippines standard design for roof panel making machine
Quick Detail:
- Thickness : 0.4mm-0.8mm
- Material : PPGL metal sheets, 550Mpa
- Input width : 1220mm
- Effective width: 954+/-4mm
- Material weight : 5MT or customized
- Coil inner diameter : 508mm
- Roller material: 45#, CNC laths, hard chrome coated
- Cutting tolerance : ±1mm
Description/Technical Parameter details of complete line:
- 5TX1250mm hydraulic de-coiler with/without coil car
You can adapt to hydraulic un-coiler or manual one as per request, and the un-coiler capacity 5MT, 6MT, 7MT, 8MT, 10MT also as per the coil order, if the un-coiler capacity is above 5tons, it is better equipped with coil cart
- Entry Roller & Manual Pre-shearing device (Un-powered)
To cut off the end of the first or final piece of sheet only
Working thickness: max. 0.8mm
- Roll forming machine with cutting details as below table :
| Production material | Pre-painted Sheets,G550 |
| Thickness range | 0.4mm-0.8mm |
| Coil width | 1220mm |
| Carriage Frame design |
Classic wall-plate-frame-design, 18mm wall plate thickness |
| Roll forming steps | 20 steps |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated to avoid the rusty and with high precision |
| Shafts Diameter | Φ75mm/95mm |
| Main motor power |
7.5Kw driven motor with gear box Or higher for high speed |
| Line speed of roll former | 15-18m/min |
| Hydraulic group power | 4.0Kw |
| Material of cutter | Cr12, hear treatment as normal design |
| Electric Voltage Standard | 220V/60Hz/3Ph or as the customer's requirements |
| Major Color of Machine Painted | RAL 5015(Blue) or as per customer’s requirements |
- PLC Control System
Siemens brand PLC/touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron brand encoder
Cut-to-length tolerance≤±1mm
Control Voltage 24V
- Run out table rolled type, 3 units
Machine list:
- Hydraulic un-coiler with 5Tons capacity
- Normal speed roll former
- Hydraulic cutting device
- Run out table
- PLC control systems
Features:
A trapezoidal roof panel roll forming machine is always adjustable for different feeding widths. You can make trapezoidal roof panels with different effective widths from different-width materials.

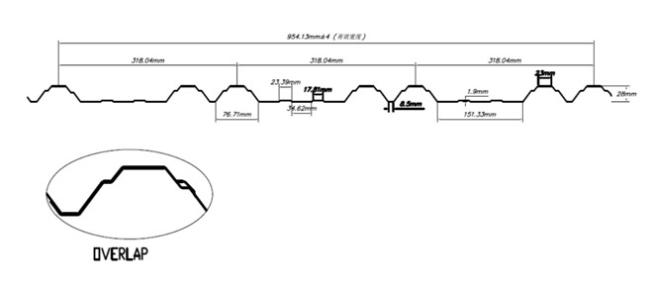

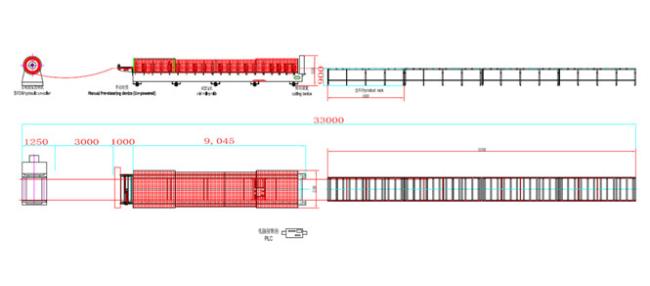

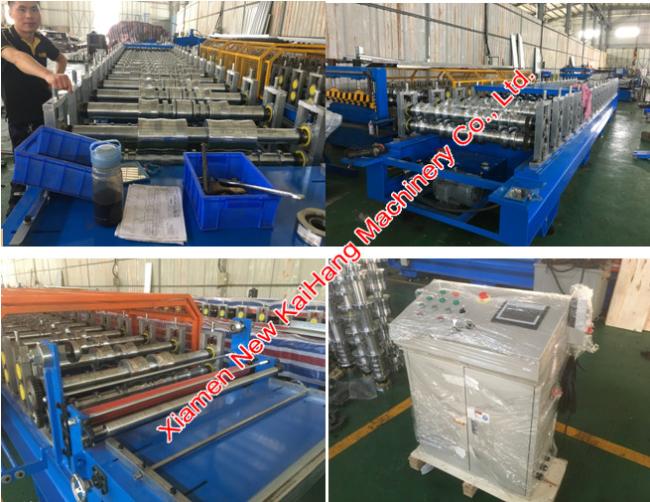

Profile Drawing/Layout/Equipment reference pictures:
