U480 Standing Seam Metal Roof Roll Former / Steel Profile Roll Forming Machine
Seam lock roll forming machine, metal roof lock seam making machine, U480
Quick Detail:
- Thickness : 0.4-0.8mm
- Material : GI/Alu-zinc/ Aluminum/PPGL
- Input width : 610mm
- Effective width: 480mm
- Material weight : 3MT
- Coil inner diameter : 508mm
- Driven way: by 7.5Kw driven motor
- Cutting way: by 4.0Kw hydraulic cutting device
- Cutting tolerance : ±1mm
Application:
Standing Seam Metal Roofing is a fully interlocking roof system. Its unique design mechanical-lock design forms a weather-tight unit, and unlike some other types of panel metal roofs, no rivets or screws are exposed on the surface of the panels. It may be installed on new construction or applied over existing roofs. All trims and caps are designed to ensure an integrated weather-proof roof.
Usually, the material thickness varies from 0.4-0.8mm, but some other concealed fix standing seam roofing, like standing seam roof sheets are thick from 0.8-1.2mm.The material width for a standing seam panel covers from 400mm-1000mm, while a regular roof panel roll forming machine handle with the material of widths at least 914mm and max. 49″ widths.
Machine list:
- 3T*600mm hydraulic un-coiler
- Polythene film device as request
- Roll former
- Hydraulic cutting device
- Run out table
- PLC control systems
Description/Technical Parameter details of complete line:
- 3TX600mm Hydraulic Un-Coiler
Expansion system controlled by hydraulic group
Link-connect expanding system
Pump power=1.5KW
Load capacity=3 Ton;
Coil Inner – diameter =451-530 mm
Coil outer-diameter=Max. 1500 mm
Coiler Width=Max. 600 mm
- Polythene film on device before feed in
- Entry Roller & Manual Pre-shearing device (Un-powered)
Smart cut control,
To cut off the end of the final piece of sheet only
Working thickness: max. 0.8mm
- Roll forming machine with cutting details as below table :
| Suitable roll forming material | PPGI/PPGL/GI/ALU-ZINC sheets |
| Thickness | 0.4mm-0.8mm |
| Coil input width | 610mm |
| Carriage Frame design | Wall-plate-frame-design with 18mm wall thickness |
| Rolling mills forming stages | 18 stages |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main motor power | 7.5Kw with reducer |
| Rolling speed of roll former | 15m/min |
| Hydraulic group power | 4.0 Kw |
| Cutting way | Hydraulic cutting with waste after cut-off |
| Electric Voltage Standard | 380V/50Hz/3PH or as requirements |
| Machine Color Painted | RAL 5015(Blue) or as requirements |
- PLC Control System
Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder
Cut-to-length tolerance≤±1mm
Control Voltage 24V
- Product Rack 4 meter long, rolled type

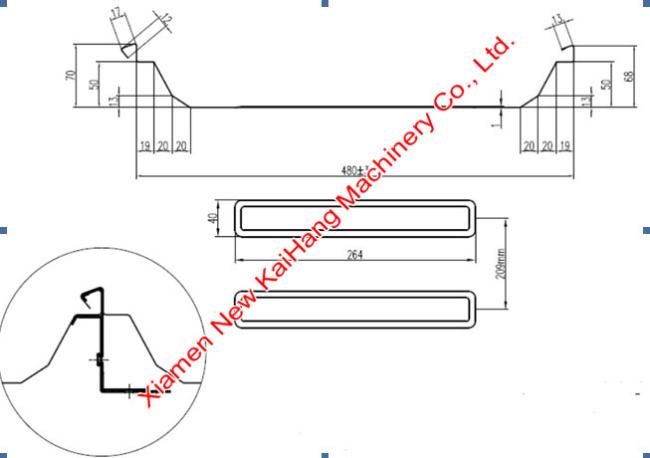

Profile Drawing/Layout/Equipment reference pictures:
