Hydraulic Curving Metal Roof Roll Forming Machine 1200mm Cover Width With Siemens Servo Motor
Metal roof hydraulic curving machine, 1200mm cover width, Siemens servo motor driving, high precision
Brief Introduction of Hydraulic Crimping Curved Machine:
There is a PLC control system for the hydraulic curving machine and through the HMI on PLC electric cabinet, customers can set the crimp quantities and crimp distance to reach the curved angles or radius. The thickness of roof panels has to be less than 1.0mm; the pressing dies will be designed exactly the same as the roof sheets.
Nowadays, the wide roofing machine is more and more popular in market, such as 30-200-1000/1200 with 1220/1450mm input, so there is special design of the wide crimping machine, coz the input is wide, so the carriage should be strong enough and there is only horizontal direction
Quick Detail:
- Thickness : 0.4-0.6mm
- Material : G550, PPGI
- Input width : 1220/1450mm
- Effective width: 1000/1220mm
Machine list:
- Feeding table with rubber rollers
- Servo motor feed in
- Quick change pressing dies with cassette design
- Horizontal direction operation design
- PLC control systems
Description/Technical Parameter details of complete line:
- details as below table :
| Suitable roll forming material | Color steel sheet |
| Thickness | 0.4mm-0.6mm |
| Driven motor | 1.8Kw Siemens brand motor |
| Carriage Frame design | Horizontal or |
| Hydraulic group | 11Kw |
| The min. flat edge | 300mm |
| Curved Radius | 550mm for G550 material |
| Pressing dies | Convex/Concave |
| Electric Voltage Standard | 380V/50Hz/3PH or as the customer's requirements |
| Major Color of Machine Painted | RAL 5015(Blue) or as per customer’s requirements |

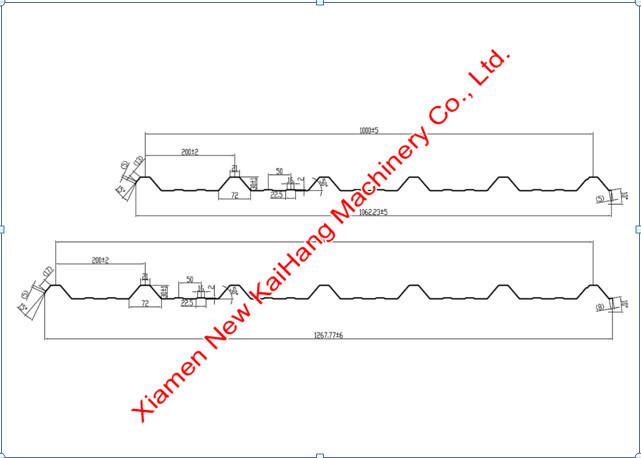

Profile Drawing/Layout/Equipment reference pictures:
