2.5mm Thickness C80 C125 C250 Channel Purlin Roll Forming Machine
Price:
negotiation
MOQ:
01 UNIT
Delivery Time:
40 WORKING DAYS
Brand:
NKH MACHINERY
Product Description
Full Automatic 2.5mm C80-250 Channel Purlin Roll Forming Machine by spacers
Quick Detail:
- Thickness : 1.5mm-2.5mm
- Material : Galvanized sheets
- Material weight : 3Mt
- Coil inner diameter : 508mm
- Driven way: by 15kw driven motor
- Cutting way: by hydraulic power pack, post punch, post cut
- Cutting tolerance : ±1mm
Application:
It is used to colume as C80,C125, C250
- Hydraulic De-coiler or Manual Un-coiler rack
- Roll forming machine
- Hydraulic Post-punch & Post- cut device
- Run out table
- PLC control systems
Description/Technical Parameter details of complete line:
- 3TX600mm Hydraulic Un-coiler
You can adopt to :
Manual de-coiler
Driven de-coiler
- Roll forming machine with cutting details as below table :
| Suitable roll forming material | Color steel sheet or galvanized steel sheet |
| Thickness | 1.5-2.5mm |
| Carriage Frame design | wall-plate-frame-type |
| Rolling mills forming stages | 15 stages |
| Material of forming roller | Cr12, heat treatment |
| Shafts Diameter | Φ75mm |
| Main motor power | 15Kw |
| Production speed | 18m/min (without punch time) |
| Hydraulic group power | 11Kw |
| Material of cutting blade | Cr12, heat treatment |
| Electric Voltage Standard | 220V/60Hz/3Ph or as request |
| Major Color of Machine Painted | RAL 5012(Sky Blue) or as request |
- PLC Control System
Control the quantity & cutting length automatically
Combined with: Siemens brand PLC and Touch Screen
Schneider brand Inverter, Omron encoder, etc
Cut-to-length tolerance≤±1mm
Control voltage 24V
- Product Rack 4 meter long ,rolled type

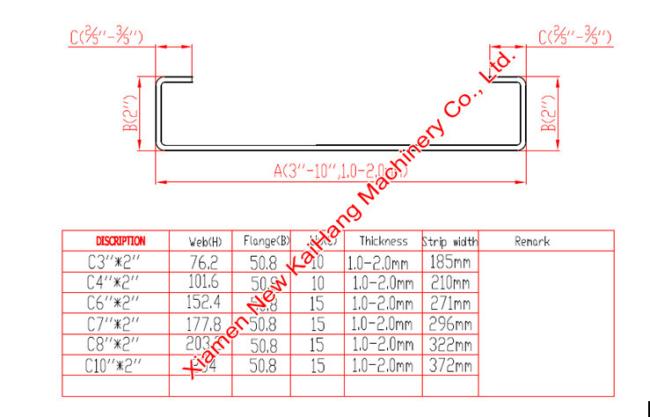

Profile Drawing/Layout/Equipment reference pictures:
