High Capacity 3.7V 48Ah Lithium Ion Rechargeable Battery For Lawn Mower
3.7V 48Ah Rechargeable Lithium Batteries for Lawn Mower , High Capacity with ROHS
Product Advantage
1) Thermal stability
2) Very low self discharge
3) High power and energy densities up to 180wh/kg
4) Wide operation temperature with good performance
5) Lighter and smaller than lead acid battery.
6) Safe and reliable
Why choose VICT ?
1)10 years lithium battery engineering and manufacturing.
2)Fast Reply, 7 x 24 hours service.
3)Our R&D colleagues are from the top 2 university and scientific institution of studying lithium chemical in china.
4)Strict Quality Control: We set strict QC standards include appearance, package, internal structure, electric performance etc.
5)We promise to offer our customers high quality battery. Customer first culture: 80% of our customers are 5 years above long term partners.
6)Our production is under strict control of RoHS, providing environmentally-friendly products.
Parameter
| Item | Specifications | |
| Model | VSNCM48TG | |
| Shell | Aluminum Plastic Film | |
| Capacity (2.75V-4.2V) |
≥47.3 Ah @ 1.0C1A ≥48.7Ah @0.33C3A |
|
| Rated voltage(Work Voltage) | 3.7V | |
| Max. Charge voltage | 4.2V | |
| Max. Charge current | 96.0A | |
| Cut-off voltage | 2.75V | |
| Standard charge and discharge current | 48.0A | |
| Max continuous discharge current | 144.0A | |
| Weight (including shell) | 746±30g | |
| Internal Impedance(Max, at 1000Hz) | ≤1.5 mΩ | |
| Standard Charge method | 1.0C CC charge to4.2V, 4.2V CV charge to 0.02C cut-off | |
|
Operate temperature |
charge | 0~50℃ |
| discharge | -20~60℃ | |
| storage | -10~50℃ (≤1 month) | |

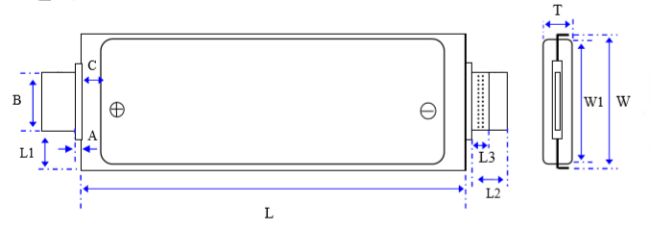

Dimensions
| Items | Description | Dimension and Spec |
| T | Thickness | 11.6 ±0.4 mm (before shipment) |
| W | Width | 100 mm max |
| L | Length | 310 mm max |
| A | Sealant Length | 0.5～3.0 mm |
| B | Tab width | 50.0±0.1 mm |
| Tab thickness | 0.30 0.01 mm | |
| C | Top Sealing Width | 15.0±0.5 mm |
| L1 | Tab distance battery edge | 25.0±2.0 mm |
| L2 | Tab Length | 18.0±1.0 mm |
| W1 | Pocket outer Width | 97.5 0.5 mm |
| L3 | Nickel plated brass Length | 6.0 1.0 mm |
Application
1. Emergency power supply
2. LED light
3. Electric vehicle
4. Golf cart
5. Lawn Mower
6. Marine
7. Medical equipment
8. Power tool
