75Ah 12v Starter Battery LiFePO4 Battery Module 1500A Peak Discharge
12V 75Ah Lithium Starter Battery , LiFePO4 Battery Module , 1500A Peak Discharge
Brief Description
Battery are assembled with well-prepared battery pack, built- in BMS / PCB (protection circuit board) and metal box as a whole system. Customer can parallel config the modules to increase capacity or series config the modules to increase the voltage, but should follow the instructions of engineers suggested.
Parameter
| No. | Item | General Parameter | Remark |
| 1 | Rated Capacity | 75Ah | Standard charge(0.2C) after standard discharge(0.5C) |
| 2 | Minimal Rated Capacity | 74.5Ah | Standard charge(0.2C) after standard discharge(0.5C) |
| 3 | Nominal Voltage | 12.8V | Mean Operation Voltage |
| 4 | Cycle Life | Higher than 70% of the Initial Capacities of the Cells( |
◆ Carry out ≥2000cycle |
| ◆ Standard charge ( 0.2C) after standard discharge(0.5C) | |||
| ◆ Discharge: 0.2c to 10V | |||
| ◆ Rest Time between | |||
| charge/discharge : 30min. | |||
| ◆ Temperature:20±5℃ | |||
| 5 | Voltage at end of Discharge | 10V | Discharge Cut-off Voltage |
| 6 | Charging Voltage | 14.6V | Charge Cut-off Voltage |
| 7 | Standard charge | 0.5C CC(constant current)charge to 14.6V,then CV(constant voltage 14.6V)charge till charge current decline to ≤0.01C | Charge time : Approx 2.5h |
| 8 | Standard discharge | Constant current 1C end voltage 10V | |
| 9 | Maximum Continuous Charge Current | 1C(75A) | |
| 10 | Maximum Continuous Discharge Current | 5C(375A) | |
| 11 | Maximum Instantaneous Discharge Current | 20C(1500A) 3-5S | |
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. |
| Discharge: -20~60℃ | Bare Cell | ||
| 13 | Storage Temperature Range | Less than 1 year : -20~25℃ | 60±25%R.H. |
| Less than 3 months:-20~40℃ | at the shipment state | ||
| 14 | Weight | Approx: 10Kg | |
| 15 | Dimension | High: 220mm | |
| Width: 175mm | |||
| Long: 260mm |
Application
Car, Motorcycle etc.

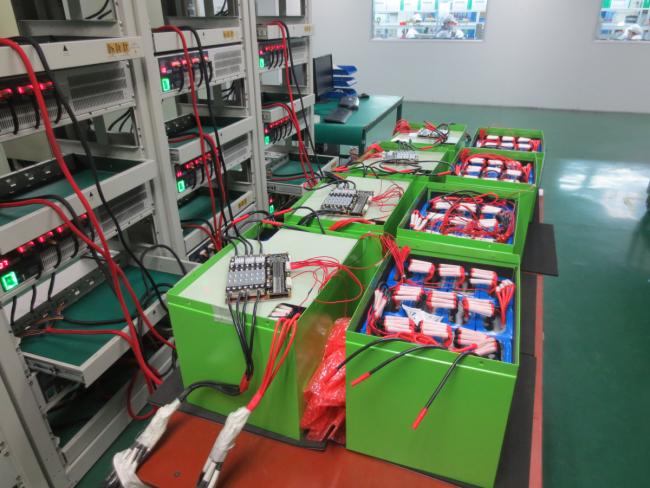

Workshop
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
