Outdoor Fiber Optic Pigtail 2F 4F 6F 12F SC APC Waterproof 9.8mm Diameter
Outdoor Fiber Optic Pigtail 2F 4F 6F 12F SC APC Waterproof 9.8mm Diameter
Description

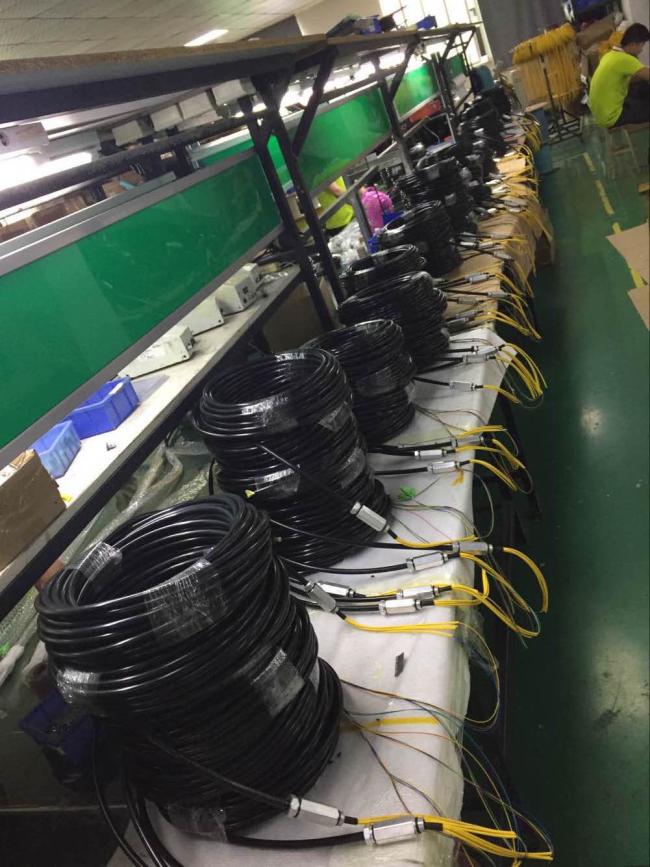

9.8mm Diameter Outdoor 2F 4F 6F 12F SC APC Waterproof Fiber Optic Pigtail manufactured by ANC International Co., Limited can be used in harsh environment. It has single mode and multimode waterproof fiber cables optional, customized cable assemblies are available. Waterproof Fiber Optic pigtails are widely used in data transmission network, typical types are with 2 fiber cores, 4 fiber cores or 8, 12 fiber cores. ANC produces the waterproof fiber optic pigtails strictly according to IEC standards. The products feature low insertion loss, high return loss, good interchangeability and repeat push-pull performance, which make them easy to use. The waterproof fiber optic pigtails are with strong PE jacket and waterproof sealed head connectors; they can be used in harsh environment.It is mainly used in outdoor connection of the optical transmitter.
Specification
Various kinds of connect interfaces optional such as SC, FC, ST, LC, etc.
Ceramic ferrules, PC, UPC, APC polishing optional
Low insertion loss, high return loss
Waterproof
Out diameter of inner fiber: 3.0mm, 2.0mm, and 0.9mm
Features
Good concentricity of ceramic ferrule
RoHS compliant for all Waterproof fiber optic patch cords material
Usage
FTTH
LAN
Testing equipment
Military Industry
Fiber optic communication system
Optical active component end equipment
Measuring equipment
Technical Data
| Item | Parameter | |
| Single-mode | Multi-mode | |
| Insertion Loss | ≤0.3dB | |
| Return Loss | ≥50 dB (PC), ≥60 dB (APC) | |
| Repeatability | ≤0.1dB | |
| Durability | 0.2dB Max. 1000 mattings | |
| Operating Temperature | -40℃~+85℃ | |
| Storage Temperature | -40℃~+85℃ | |
