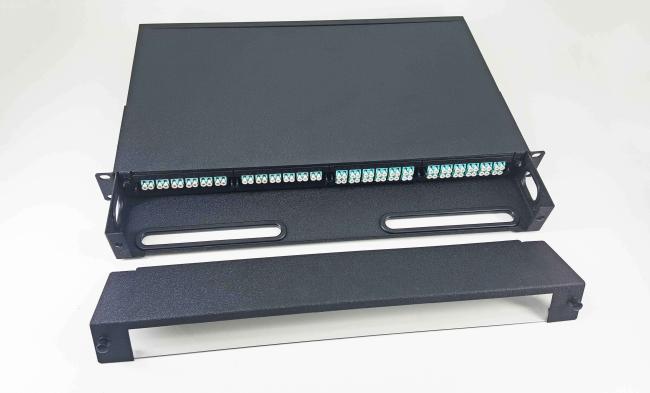

1U 19" High Density MPO Fiber Optic Cable 8x MTP 12 To 48x LC Duplex 96
1U 19" High Density MPO Fiber Optic Cable 8x MTP 12 To 48x LC Duplex 96
Description:
1U 19" High Density 8x MTP-12 to 48x LC Duplex 96Fiber Fiber Optic Patch Panel manufactured by ANC International Co., Limited is mainly used for high density fiber optic cabling system, fast wiring system, main network, high integration equipment & devices, data center, SAN system etc. This MPO MTP patch panel are made to meet the demand of high density fiber cable management products, it reduce space, reduce deployment time, easy to use and plug to play. The front panels can be custom made. inside the MPO/MTP fiber patch panels, MPO MTP cassette or blank adapter plate can be pre-installed before shipping. Typically, the MPO MTP Cassette are installed with MPO/MTP to LC harness cables and adapters, we also have SC/ST/FC adapters and cables, in single mode and multimode versions, UPC and APC polished ones.
Except 1U patch panel, ANC has also 2U, 3U rack optional to meet higher density demands.
Features:
LGX Compatible
Rack Mountable
1U holds 4 LGX adapter plates or MTP/MPO Cassettes
19" Standard Size, Light Weight and Robust Structure
Changeable Modules Inside
Suitable for both Ribbon and Round Cable
Improved design to ensure fiber optic cable bend radius not less than 40mm
Powder Coated
Applications:
Data Center
Fiber optic cabling system
Main Network
Optical Performance:
| MPO/MTP | SM Standard | SM Low Loss | MM Standard | MM Low Loss | |
| Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB | |
| Return Loss | APC≧50dB | ≧25dB | ≧35dB | ||
| PC≧40dB | |||||
| Durability | ≤0.3dB (change 500matings) | ≤0.3dB (change 1000matings) | |||
| Exchangeability | ≤0.3dB (Connector randomly) | ||||
| Tensile Strength | ≤0.3dB (Max 66N) | ||||
| Vibration | ≤0.3dB (10~55Hz) | ||||
| Operation Temperature | -40℃ ~ +75℃ | ||||
Generic Connector Performance:
| LC, SC, FC, ST Connector | Singlemode | Multimode | |
| UPC | APC | PC | |
| Maximum Insertion Loss | ≤ 0.3 dB | ≤ 0.3 dB | ≤ 0.3 dB |
| Typical Insertion Loss | ≤ 0.2 dB | ≤ 0.2 dB | ≤ 0.2 dB |
| Return Loss | ≧ 50 dB | ≧ 60 dB | ≧ 25 dB |
| Operating Temperature | -40℃ ~ +75℃ | ||
| Test Wavelength | 1310nm | 850nm | |
