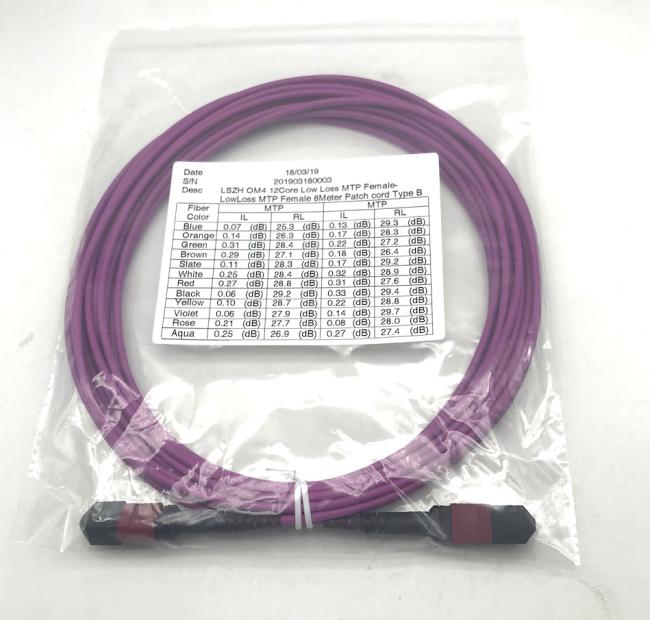

8M Digital Fiber Optic Cable LSZH OM4 50/125 Violet MTP Female Type B Elite Trunk Wire
LSZH OM4 50/125 Violet 12 Fiber MTP Female Type B Elite Trunk Cable 8 Meters
Description:
LSZH OM4 50/125 Violet 12 Fiber MTP Female Type B Elite Trunk Cable manufactured by ANC International Co., Limited is a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. MTP trunk cable assembly utilises varying cable and patchcord configurations as defined in TIA-568-C.0-2. These cables vary by gender, fiber orientation and pair management. The low 10/40/100G channel loss requirements of ISO/IEC 11801 demand high performance connectivity is used. US Conec MTP Elite connector is used to ensure the lowest possible connector insertion losses. This Elite MTP trunk cable is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Features:
MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections
Install / remove with one hand
MTP Elite connectors for low link/channel loss performance
TIA-568 based pair flipped or parallel optics cables for standards compliance and traceability
Round mini cable construction offers reduced raceway usage and looming neatness
MTP connector endface geometry compliance to IEC standards for enhanced intermateability and interoperability
Large range of cable colours for circuit ID options
Bundled cable option allows for ease of handling and installation of multiple 12/24F cables
Each cable 100% tested of insertion loss, back reflection and Interferometer before shipping
Custom lengths available
SM (9/125 G657A1), MM (50/125 or 62.5/125), OM3, OM4, OM5 fiber optional;
Female and Male MPO MTP connectors optional
Standard Loss and Low Loss optional
Applications:
Data Center
LAN FTTX
Optical Performance:
| MPO/MTP | SM Standard | SM Low Loss | MM Standard | MM Low Loss | |
| Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB | |
| Return Loss | APC≧50dB | ≧25dB | ≧35dB | ||
| PC≧40dB | |||||
| Durability | ≤0.3dB (change 500matings) | ≤0.3dB (change 1000matings) | |||
| Exchangeability | ≤0.3dB (Connector randomly) | ||||
| Tensile Strength | ≤0.3dB (Max 66N) | ||||
| Vibration | ≤0.3dB (10~55Hz) | ||||
| Operation Temperature | -40℃ ~ +75℃ | ||||
Interferemeter Test:
| MPO/MTP | Dimension MT |
| Radius of Curvature | X≧2000mm; Y≧50mm |
| Fiber Height | 1000~4000nm |
| Endface Angle | X±0.3°; Y±0.3° |
| Core Dip | -300nm ~ 300nm |
