4 Port LC Quad Fiber Optic Adapter 0.1dB Ceramic Sleeve SUS304 Metal Clip With Flange
Less than 0.1dB 4 Port LC Quad Fiber Optic Adapter with Flange
Description
LC Quad Fiber Optic Adapter manufactured by ANC International Co., Limited is designed for high-density applications. The Quad LC Adapter provides a 4-position LC adapter solution. It can be used to connect four duplex or eight simplex LC fiber optic cables. Mounting dimensions of the quad LC adapter are identical to the duplex SC adapter and can be used as direct a drop-in replacement. Different LC Quad Adapter color codes allow for rapid fiber mode identification and reduce errors with connector and mode mismatch. We have blue color for SM/PC, beige color for MM, green color for SM/APC, aqua color for OM3, violet color for OM4 optional for LC quad adapters. The quad LC adapter can be flanged or flangeless style.
ANC supplies a wide range of fiber optic adapters and hybrid adapters, including special male to female hybrid fiber optic adapter. Our fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.
Specification
Channels- Quad (4 port)

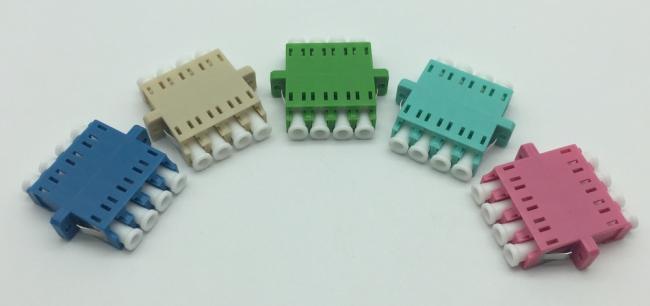

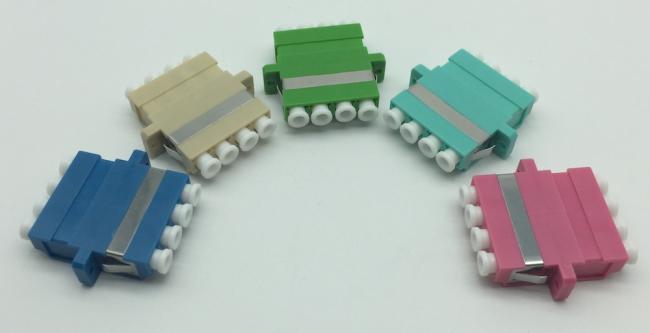

Color- Blue for SM/PC, beige for MM, green for SM/APC, aqua for OM3, violet for OM4
Body material- PC
Alignment sleeve material- Zirconia Ceramic

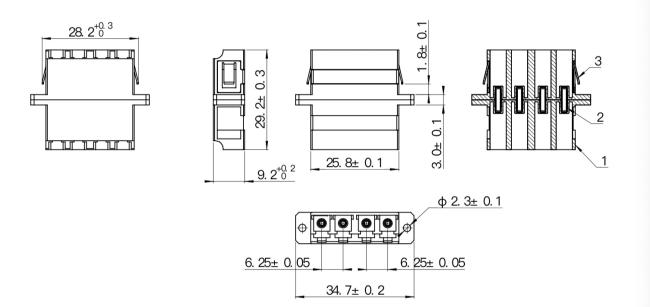

Mounting- Duplex SC footprint
Insertion Loss (IL)- <0.1dB (Typical)
Durability- <0.1dB change after 500 matings
With flange or flangeless optional
RoHS Compliance
Low insertion loss and good durability
Usage
Optical Fiber Communication System
Cable Television Network
LAN, FTTX
Fiber Optic Access Network and Video Transmission
Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia | |
| Housing | PC | Flammability UL94 V-0 |
| Dust cap | PE | Flammability UL94 V-0 |
| Metal Shutter | SUS304 |
Optical Performance
| Premium Grade | Standard Grade | |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
