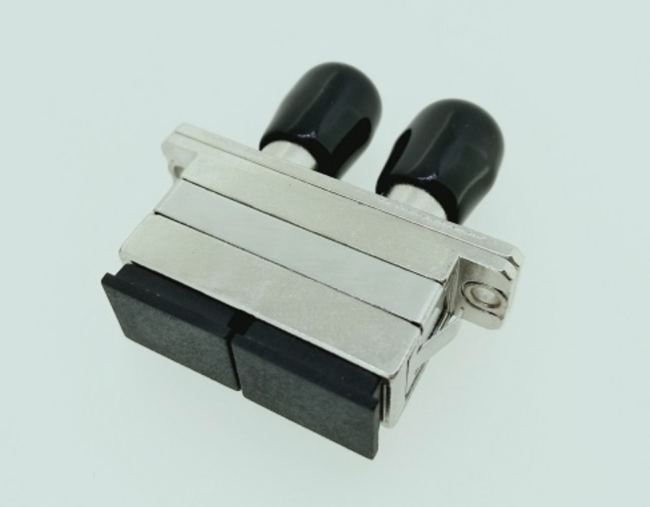

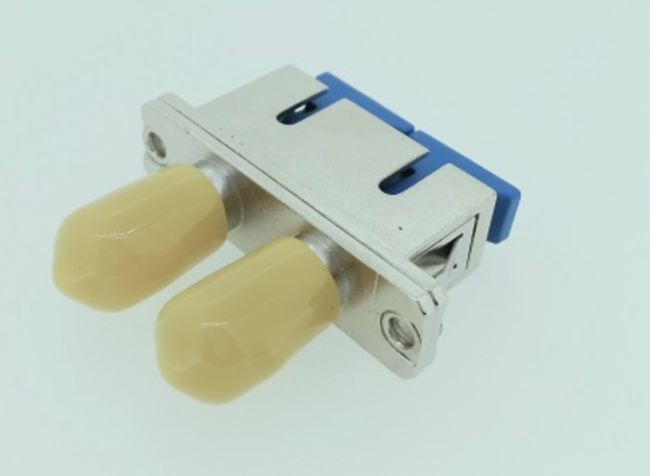

Duplex SC To ST Fiber Optic Adapters Female To Female Zinc Alloy Metal Housing
Duplex SC to ST Fiber Optic Adapters , Female to Female , Metal Housing
Description
Metal Housing Duplex SC to ST Fiber Optic Adapters manufactured by ANC International Co., Limited are designed for mounting in standard duplex SC rectangular cut out style panels. These adapters have either bronze or ceramic alignment sleeves inside to meet your specific design requirements. SC to ST Duplex Hybrid Adapter is designed for connecting together 4 fiber optic cables or connectors. Connect 2pcs SC male to 2pcs ST male connectors together. Additionally, these adapters can be used with SM or MM, PC or UPC or APC style fiber connectors. Metal housing can ensure long lifetime.
ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as
standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA etc fiber optic adapters;
female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, etc;
female-male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;
Specification
Female to Female fiber optic adapters
SM and MM adapters can be used interchangeably
High precision of mechanical dimensions
Excellent Repeatability
Excellent Interchangeability
Low insertion loss, high return loss
Good Temperature Characteristic
All metal construction for long life
Simplex or duplex optional
For snap-in or screw mounting
Compliance with IEC and RoHS standards
Usage
Telecom, Access Network
Optical Fiber CATV
Terminal of the Devices and Multimedia
Testing and Medical Devices
Optical Fiber LAN and Access Network
Industry and Military Applications
Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia | |
| Housing | Zinc Alloy | |
| Dust cap | PBT | Flammability UL94 V-0 |
Optical Performance
| Premium Grade | Standard Grade | |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |

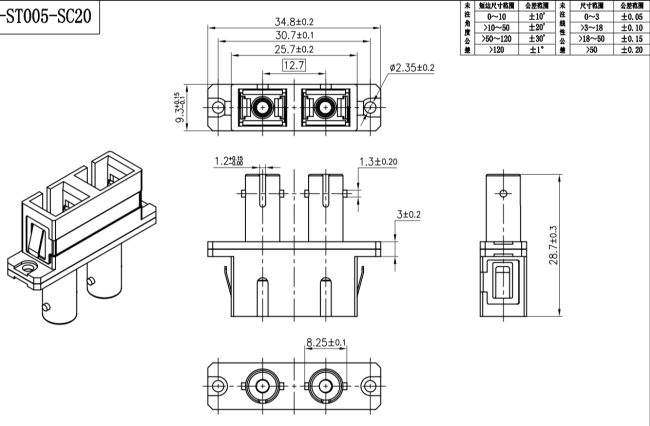

ST to SC Duplex Adapter Drawing
