High Power Fiber Optic Patch cord , 200um, 400μm, 600μm or 1000μm Core , NA 0.22

Description

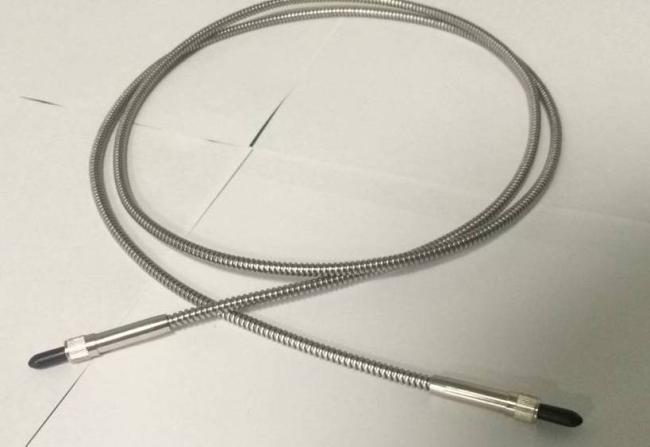

High Power Fiber Optic Patch cords manufactured by ANC International Co., Limited are specifically for high power applications. These patchcords feature special high power fibers, carefully prepared fiber endfaces, and specially designed fiber optic connectors to ensure maximum power handling. The High power patch cords have stainless steel armored cable jacket with air gap fiber ferrules.  High power connectors compatible with SMA 905 , FC and ST receptacles are offered. High power patchcords can be made using either multimode, singlemode, polarization maintaining, double cladded, or photonic crystal ("holey") fibers.

The ferrule design of the SMA connector is engineered for large core fibers. Except regular 126-130um SMA ferrule inner diameter, SMA connector has also 200um, 400um, 600um or 1000um inner diameter optional. The large core SMA connector uses mainly stainless steel ferrule inside. The high power SMA patch cord is mainly used for laser industrial or medical applications.

Our company has more than 100 workers in Shenzhen to produce 36000pcs terminators per day. The skilled workers and quality control department work closely together to guarantee every piece of our fiber optic patch cord is excellent stable quality and fine looking.

Features

Unique connector design minimizes thermal damage

Compatible with SMA905 and FC connectors

Customized SMA or FC Ferrule diameter

Cable lengths and cable types optional

Customized fiber optional

OEM and ODM customized production

Used for high power laser diode in industrial and medical system

Applications

Industrial

Medical usage

Laser marking, cutting and welding

High power spectroscopy

Laser surgery (including cosmetic surgery, eye surgery, tattoo removal)

Customized High Power Patch Cord Datasheet

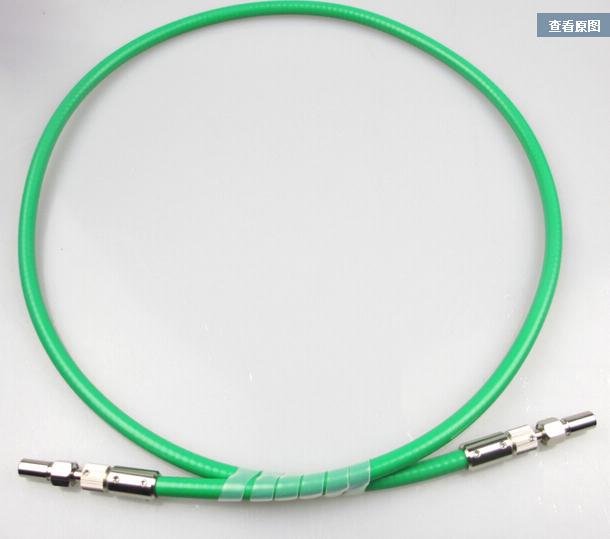

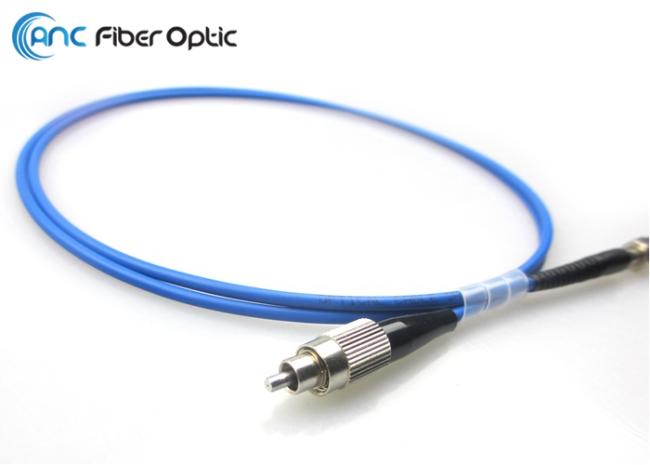

Related Pictures
