Hybrid Simplex Fiber Optic Adapter SC Male To FC Female SM / MM / APC Optional
Hybrid Fiber Optic Adapter SC Male To FC Female SM / MM / APC Optional
Description
SC Male to FC Female Fiber Optic Adapters manufactured by ANC International Co., Limited inexpensively adapt connector interfaces to new equipment, upgrade distribution panels and eliminate the need to re-terminate cable assemblies. Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. These hybrid SC Male to FC Female adapters change the existing FC connector on your fiber cable into an SC connector. The female to male fiber adapters have embedded fiber and ceramic sleeves inside to make precise connection. The fiber used inside can be SM, OM1, OM2, OM3, OM4 or other customized.
ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as
standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA etc fiber optic adapters;
female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, etc;
female-male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;
Specification
Male to Female Design
Fiber tyle: SM 9/125 Fiber or OM1 or OM2 or OM3
Low insertion loss
High interface performance
High return loss
Easy to handle
Environmentally stable
Usage
FTTx
Telecommunication Networks
Ethernet Networks
Optical Communication Equipment
CATV Networks
Local Area Networks
Specifications
| Item | Parameter | |
| Single Mode (SM-9/125) | Multi Mode(MM-50/125) or Multi-Mode(MM-62.5/125) |
|
| Insertion Loss | ≤0.3dB | |
| Durability (500 Mating) | 0.2dB Max. | |
| Operating Temperature | -40℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |
| Remark: SC Male to FC Female Hybrid Fiber Optic Adapte is ultra reliable components featuring low insertion loss and back reflection loss. You can select singlemode 9/125um or multimode 62.5/125um or multimode 50/125um. | ||
Optical Performance
| Premium Grade | Standard Grade | |
| Insertion Loss | ≤0.2dB | ≤0.3dB |
| Durability | 500 times | 500 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |

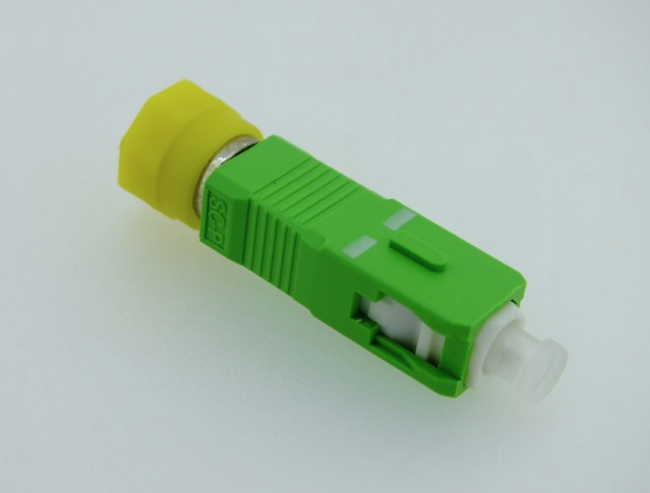

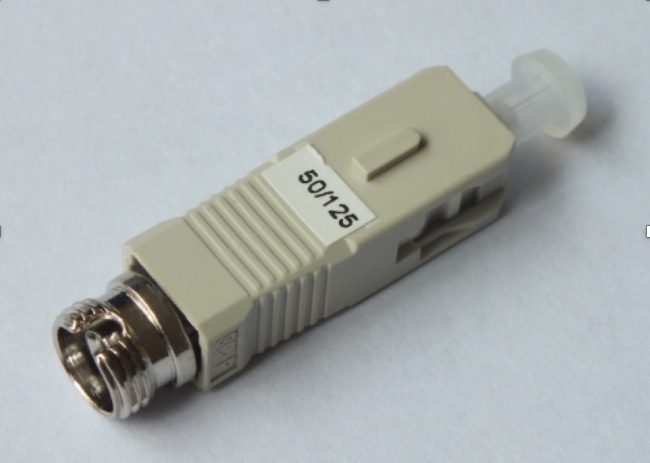

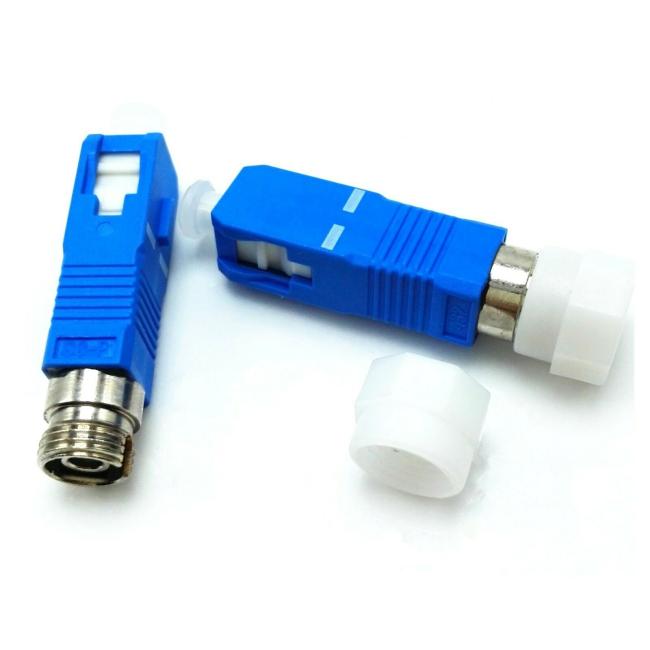

Related Products Pictures

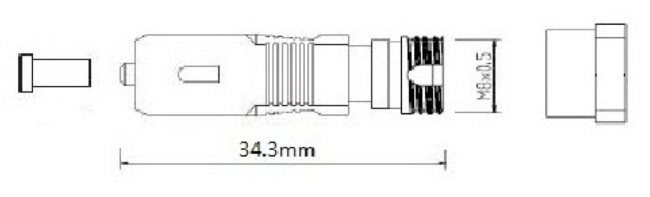

SC Male to FC Female Adapter Drawing
