DIN To DIN Simplex Fiber Optic Adapters Singlemode Multimode Metal Body 0.2dB
DIN to DIN Simplex Fiber Optic Adapters Singlemode and Multimode Metal Body
Description

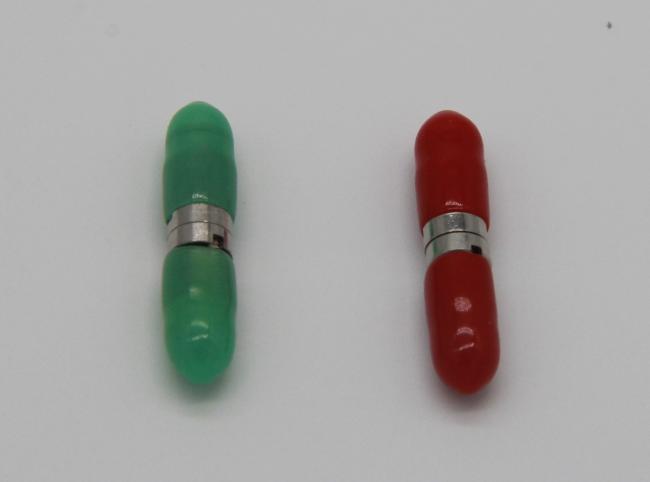

DIN-DIN Fiber Optic Adapter manufactured by ANC International Co., Limited is used to join two fiber optic patch cables together. It contains the interconnect sleeve, that holds the two ferrules together. DIN fiber optic adapter is available in single mode UPC APC and multimode SPC to sastify to connect single mode or multimode patch cable. Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Specification
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic sleeve
DIN style to DIN style
Use in Singlemode or Multimode applications.
Free-hanging or panel-mount design.
Dust caps protect against debris and contamination
RoHS Compliant
Features
High Precision Alignment
compliant with the IEC and ROSH standards
Usage
Optical Fiber Communications,Video,LAN, CATV Systems
Optical Network Equipments,optical Test Equipments
Module Pigtails,Multi media,Premise
Active device termination installations
Technical Data
| Item | Parameter |
| Connector Type | DIN-DIN |
| Fiber Type | Singal mode or Multimode |
| Adapter Color | Metal |
| Testing Wavelength | 1310nm,1550nm or 850nm |
| Typical Insertion loss | ≤0.15dB |
| Maximum Insertion loss | ≤0.20dB |
| Repeatability | ≤0.10dB |
| Exchangeability | ≤0.20 |
| Durability | 1,000 Mating, loss≤0.20dB |
| Channel Number | Singal core |
| Frame Material | Metal |
| Sleeve Material(Customized) | Default ceramics(Zr02) |
| Operating Temperature | -20℃~ + 70℃ |
| Storage Temperature | -40 ℃~ + 85℃ |
