SC Duplex Fiber Optic Adapter Ceramic Sleeve With Separate Metal Shutter Cap

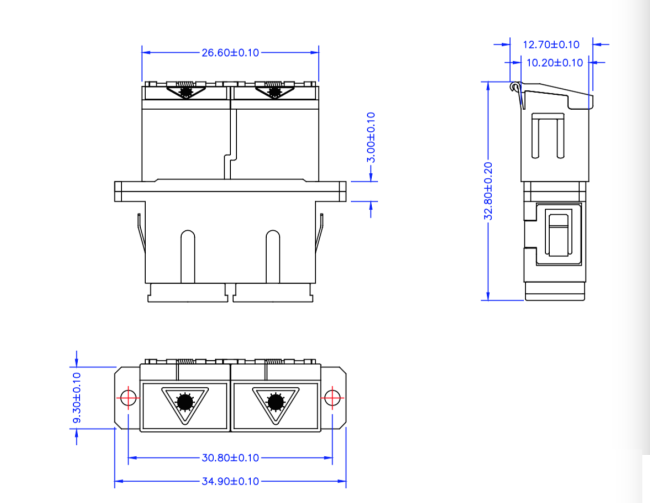

SC Duplex Fiber Optic Adapter with Separate Metal Shutter Cap
Description

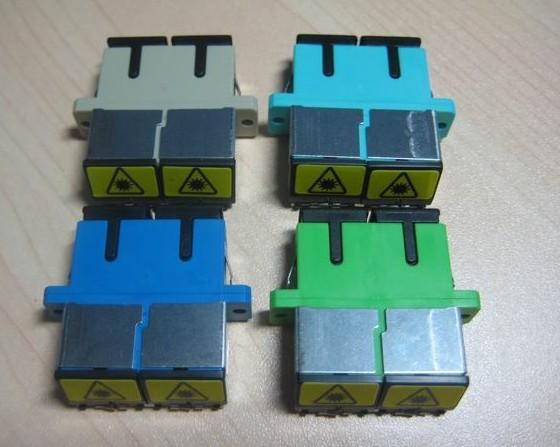

SC Duplex fiber optic adapter with metal shutter cap manufactured by ANC International Co., Limited is specially designed to suit FTTH applications. The shutters are designed to prevent ingress of dust and also to prevent accidental exposure to laser. This metal shutter cap is additionally added on standard duplex or simplex adapter, and can be easily removed. The SC fiber optic adapter can be flanged and flangeless type, adapter housing color can be blue, green, beige, aqua, violet or customized. The shutter dust cap is removable and has exceptional value. This SC shutter dust cap is made of SUS 304 and is specially designed with a spring loaded cap for ease of use.
ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as
standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA etc fiber optic adapters;
female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, etc;
female-male hybrid adapters, such as SC Male-LC Female; FC male-SC female, ST Male-LC female, LC Male-SC Female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;
Specification
with and w/o flange available
Different housing color optional
High quality Zirconia sleeve is used inside
Low insertion loss & High return loss

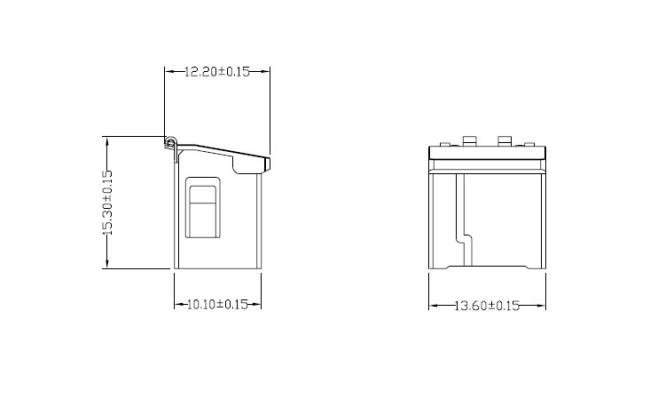

Removable SC shutter dust cap
Environment stability
RoHS Compliance
Usage
Telecommunication
CATV
Data Communications
Instrumentation
Fiber to the Home
Local Area Networks
Premise Distribution
Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia | |
| Metal Clip | SUS304 | |
| Housing | PBT | Flammability UL94 V-0 |
| Shutter Dust cap | SUS304 | |
| Inner Housing | PBT | Flammability UL94 V-0 |
Optical Performance
| Premium Grade | Standard Grade | |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
