PDLC Fiber Optic Patch Cord 2 Core IP67 Outdoor SM MM For 3G 4G Base Station
PDLC Fiber Optic Patch Cord 2 Core IP67 Outdoor SM or MM for 3G 4G Base Station
Description

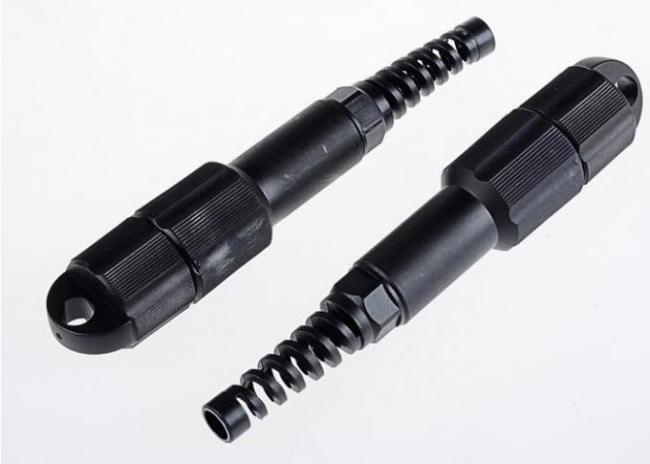

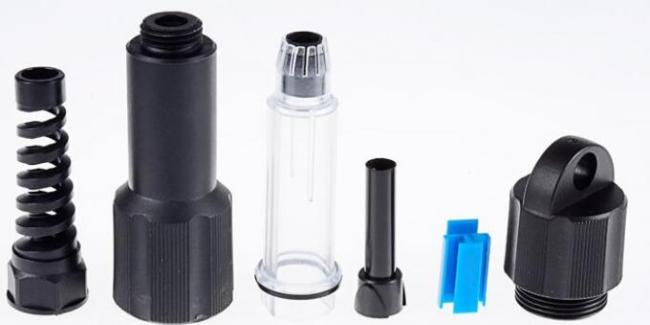

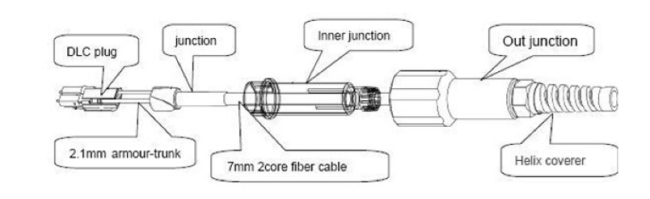

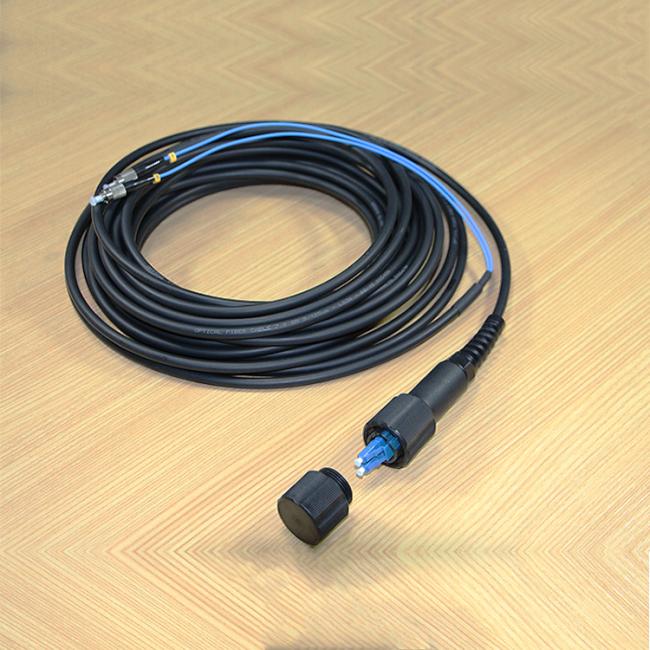

IP67 Outdoor PDLC-LC or FC fiber optic patch cord manufactured by ANC International Co., Limited is widely used for RRU, base station, FTTA and outdoor waterproof conditions. This patch cord is normally has waterproof LC connector, such as PDLC connector on one end, the other side is standard duplex LC connector with or without armored tube. This IP67 outdoor PDLC patch cord is suitable for fiber optic networks transmission in harsh environment. The cable used is GJFJH 2 core with black LSZH jacket, flame retardant and waterproof. The cable is soft and easy to wire. Fiber optic PDLC patch cord is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable and also has the functions of waterproof, dustproof.
Our company has more than 100 workers in Shenzhen to produce 36000pcs terminators per day. Our skilled workers and quality control department work closely together to guarantee every piece of our fiber optic patch cord is excellent quality and looking.We are very good at OEM and ODM production for various fiber optic patch cords;
Features
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Good mechanical and environmental characteristics
Soft, flexible,water blocked,UV resistant,easy to lay and splice,and with big capacity data transmission;
REACH, SvHC and RoHS materials compliant.
Cable lengths and cable types optional
OEM and ODM customized production
Applications
FTTA, FTTH
Base Station
BBU, RRU, RRH, LTE
Technical Data
SM PDLC Fiber Optic Patch Cord Datasheet
| Item | Data |
| Connector | DLC |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Fiber Count | 2core |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Repeatability | ≤0.1 |
| Out shell inflaming retarding | UL94 V-0 |
| Out shell Uvioresistant | UL 746C |
| Authentication | Meet with RoHS |
PDLC Cable Specification
| Item | Data |
| Cable model | GYFJH |
| fiber | SM G.657A1 or MM 50/125 |
| Fiber diameter | 7.0mm |
| Material & color for jacket | LSZH or PE black |
| Tension member | Aramid fiber |
| Max. attenuation | ≤ 0.4 dB/km at 1310nm |
| ≤ 0.3dB/km at 1550nm | |
| Tensile resistance(short term) | 500N(no breakage) |
| Crush resistance(short term/long term) | 1000N/100mm |
| inflaming retarding | IEC 60332-3-4 |
| Temperature | -20~+70°C |
| Uvioresistant | PASS |
| Fiber Count | Cable Dimension | Cable Weight KG/KM | Tensile N | Crush N/100mm | Min.Bend Radius mm | Range of Temperature | |||
| Long term | Short Term | Long term | Short Term | Dynamic | Static | ||||
| 2 | 7.0mm | 45 | 200 | 400 | 1100 | 2200 | 20D | 10D | 50 |
