25G SFP28 DAC Cable 25GBASE-CR SFP28 to SFP28 Passive Direct Attach Copper Cable

Description
25G SFP28 DAC cable manufactured by ANC International Co., Limited is a hot-swappable passive direct attach copper cable assembly (also known as Twinax Cable or DAC) with SFP28 modules at both ends. It is developed specifically as a cost-effective and lower-power alternative to 25Gb SFP28 optics and Active Optical Cables (AOC), to meet the increasing needs of higher bandwidth in data centers. The 25G SFP28 DAC cable fully complies with SFP28 Multi-Source Agreement (MSA) standards SFF-8402 and SFF-8432 specifications. It is designed for very short reach links in 25Gbps high-speed I/O interconnect applications such as high-performance computing (HPC) and high-density data center.

25G SFP28 is based on the same shape as SFP+ , it is compliant with InfiniBand Architecture and 25G Ethernet standards and can provide the 25Gb/s transmission no error. SFP28 applied to high density of 25G Ethernet switches and network interface, data center server connection. It uses the popular SFP + packaging format, upgrade the 10G Ethernet connection for the enterprise, provides a more cost-effective solution.

Features

Available in length of 0.5m to 5m

Connector A: 1x SFP28 25Gbps Rated Connector
Connector B: 1x SFP28 25Gbps Rated Connector

Up to 25Gb/s data rate
Compliant with SFF-8402 and SFF-8432
Compatible to SFP+ MSA SFF-8431
Hot-pluggable SFP 20PIN footprint
Lowest total system EMI solution
Low insertion loss and low crosstalk
Single 3.3V power supply
Operating temperature range: 0 to 70°C
RoHS Compliant and Lead-Free
30 AWG to 26AWG or 24AWG cable sizes available
Tested in an end-to-end system


Applications

Data/Servers/ Routers
Networked storage systems
External storage systems
Data Center networking
Communications Switches
InfiniBand

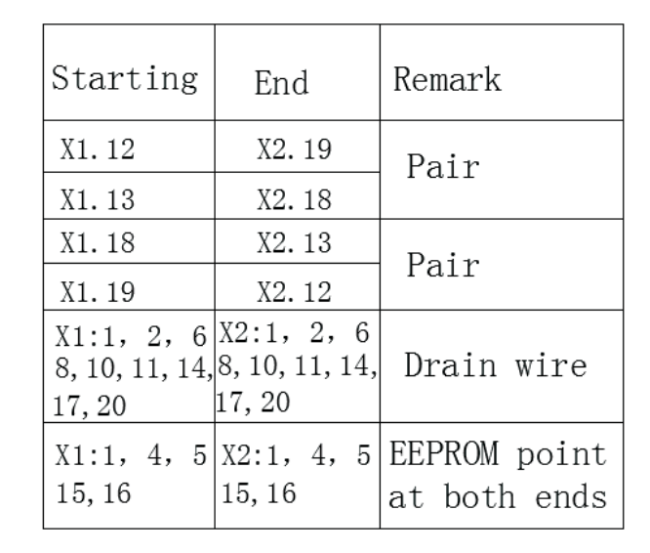

Specifications

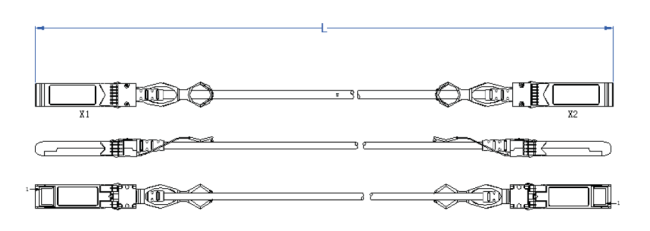

Mechanical Dimension

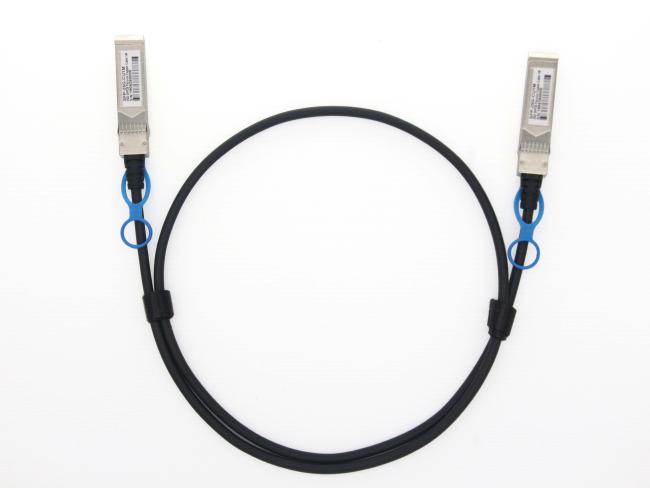

Product Picture

Platform Support

25G SFP28 DAC cable cisco compatible is supported on a wide range of Cisco equipment.

Cisco Catalyst C9500-24Y4C
Cisco Nexus 93180YC-EX
Cisco Nexus 92160YC-X
