E2000 Fiber Optic Network Adapter Ceramic Sleeve Plastic Housing 0.2dB Insertion Loss
E2000 Fiber Optic Adapters Blue Green Beige Color Housing Optional IL<0.2dB
Description
Simplex E2000 fiber optic adapter manufactured by ANC International Co., Limited is constructed with plastic body. The housing colors for E2000 adapters are different for easy identification: blue for SM, grey for MM and green for APC. This E2000 adapter features low insertion loss and strong temperature stability by adopting high precise ceramic sleeve. It is suitable for both PC and APC applications and is mainly used in telecommunication and networking systems. E2000 Adaptors come with a ceramic sleeves for single mode and multimode. Please note this E2000 fiber optic adaptor is only available in simplex version.
ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as
Standard bulk head adapters, such as SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA fiber optic adapters etc;
Female-Female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, fiber optic adapters etc;
Female-Male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;
Specification
Supplied with screw and nuts
Different color optional
Compliant with IEC 61754-4;
All adapters are supplied with ceramic sleeves inside;
High precision alighment sleeve is used;
RoHS, REACH SvHC compliant
Low insertion loss, high return loss
High precision of mechanical dimensions
Good repeatability and exchangeability
Usage
FTTx
Suitable for high power laser applications
Telecommunications networks
WDM, DWDM applications
Testing and measurement equipment
Data processing networks
Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia | |
| Housing | ABS | Flammability UL94 V-0 |
| Dust cap | ABS | Flammability UL94 V-0 |
Optical Performance
| Premium Grade | Standard Grade | |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |

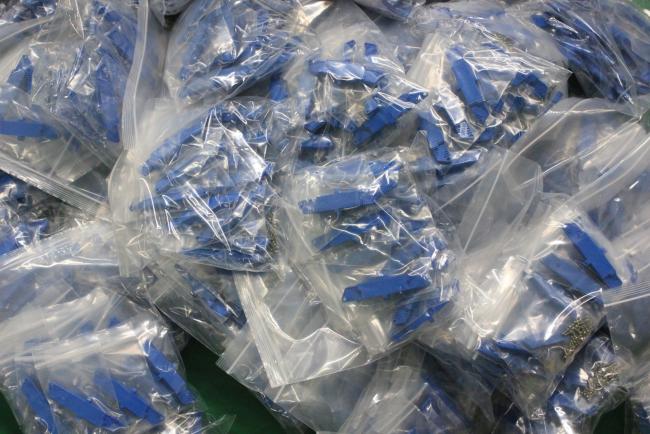

Related Products Pictures
