Rectangle FC Fiber Optic Adapters Metal / Plastic Body SC Simplex Mount Hole
Rectangle FC Fiber Optic Adapters in SC Cutout Metal or Plastic Body Optional
Description
Rectangle FC Fiber Optic Adapter manufactured by ANC International Co., Limited features nickel plated brass or zinc alloy metal housing or customized plastic housing for corrosion resistance. These rectangle FC Fiber Optic Adapters can be one-body design or two-piece welding design. Normally ceramic sleeve is used inside for both SM and MM. Different dust cap is optional for easy SM PC, SM APC and MM identification.
ANC can produce full range of FC fiber optic adapters, such as big D (13mm diameter), small D (11mm diameter), rectangle SC outout FC fiber optic adapter, square shape FC adapter, oval shape FC adapter, etc. These FC fiber optic adapters can lock the connectors and get low insertion loss to transmission optical signal, which have been widely applied to the CATV system, communications system, FTTx system, ODF, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on. ANC has more than 10 years of experience in producing adapters and all of them are meet the Telcordia and IEC-61754 standand, the material compliant with RoHS requirement.
ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as
Standard bulk head adapters, such as SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA fiber optic adapters etc;
Female-Female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, fiber optic adapters etc;
Female-Male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;
Specification
FC Fiber Adapter Type: SM FC/PC, SM FC/APC, MM FC/PC adapter available
Rectangle types in SC Simplex cutout
FC Adapter Cap Color: Red, Green, white, blue etc.
Corrosion resistant body
Brass or zinc alloy or plastic material optional
One-body design or two-pieces welding design optional
Ultra low insertion loss
High precision alignment.
Good repeatability.
Good changeability.
Good temperature stabilization.
RoHS compliant
NTT-FC compatibility
Usage
CATV System
Telecommunications
Optical Networks
Testing / Measurement Instruments
Fiber To the Home
Optical Performance
| Premium Grade | Standard Grade | |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |

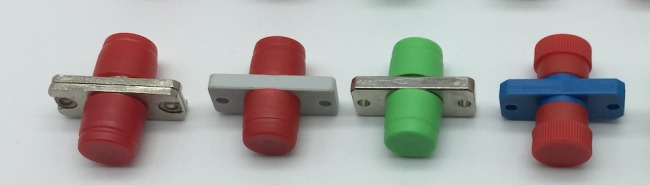

Related Products Pictures

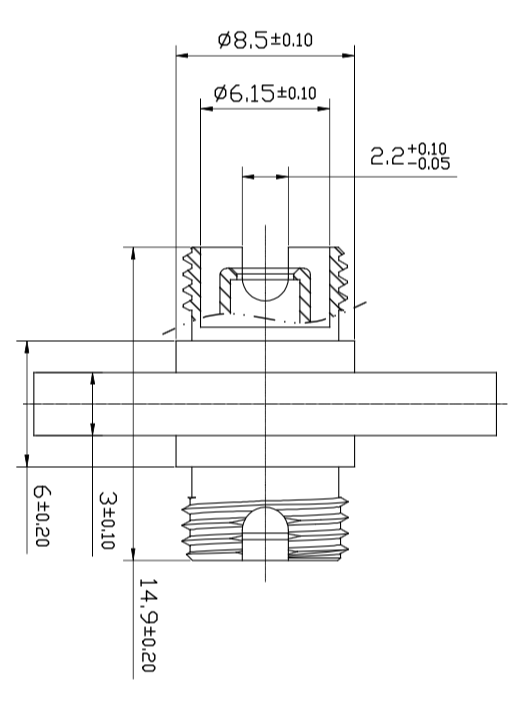

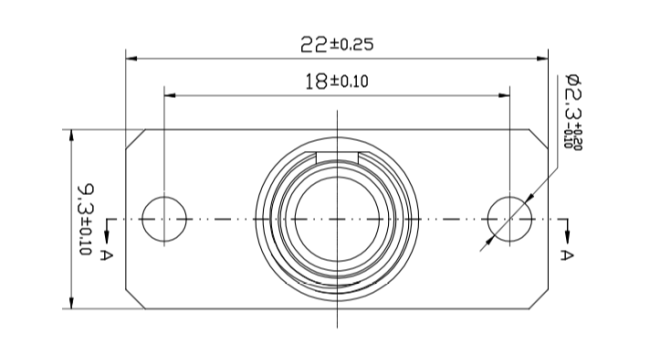

Rectangle FC Fiber Optic Adapter Drawing
