SC Simplex Fiber Optic Adapters Flangeless Blue Green Beige Aqua Violet Color Optional
SC Simplex Fiber Optic Adapters Flangeless
Description
Flangeless SC Simplex Fiber Optic Adapter manufactured by ANC International Co., Limited is designed to connect two simplex SC fiber optic cables together. This SC simplex fiber optic adapters have blue color for SM/PC, beige color for MM, green color for SM/APC, aqua color for OM3, violet color for OM4. The dust cap of this SC simplex adapter can be transparent color or black color or same color as housing. The simplex SC coupler can be flanged or flangeless style optional. The flangeless adaptors are constructed to allow fitting in the bulkheads without the need for screws or nuts. Fiber optic adapters come in various types, most adapters are female on both ends to connect two patch cables, while some adapters are male to female which allow the port to accept a different connector than for which it was originally designed, and we also assemble hybrid adapters which accept different types of connects.
Specification
Complies with IEC 61754-4 standard
High precision alignment sleeve
All adapters supplied with zirconia ceramic sleeve
Low insertion loss and improved reconnectability
100% inspected prior to shipment
Available in various colors
Materials compliant to RoHS2
Available in simplex and duplex adapters
Available in Flanged and Flangeless options
Also available are SC simplex adapters with a shutter
Body material- PC
Insertion Loss (IL)- <0.2dB
Customized dust cap color optional
Usage
Data centers
Premise installations
Telecommunication networks
Ethernet, Fiber channel, ATM, LAN, MAN and WAN

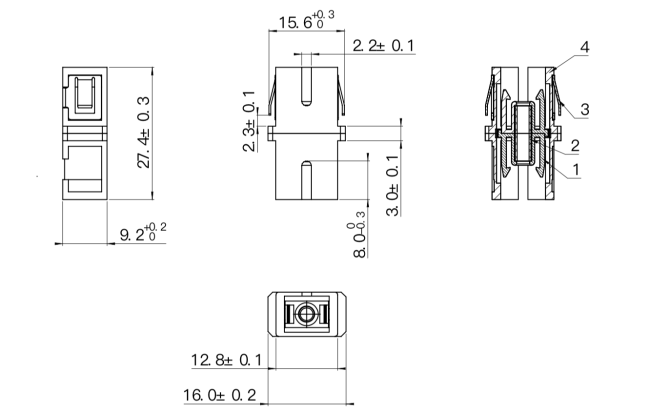

Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia | |
| Housing | PC | Flammability UL94 V-0 |
| Dust cap | PBT | Flammability UL94 V-0 |
| Metal Shutter | SUS304 |
Optical Performance
| Premium Grade | Standard Grade | |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
