6F To 144F Air Blown 1.65mm Loose Tube Fiber Optic Cable
6F to 144F Air Blown Micro Fiber Optic Cable
Description
Air blown fiber optic cable manufactured by ANC International Co., Limited is a new cable design to make significant improvements in traditional fiber optic cables, facilitating the rapid adoption of fiber optic networks and providing users with a flexible, secure, cost-effective cabling system. This air blown cable has 1.65mm high modulus plastics (PBT) loose tubes inside. Loose tubes are stranded around non-metallic central strength member (FRP). Polyethylene (PE) is extruded as outer sheath. This air blown cable is available in fiber counts from 6 through 144 fibers with all fiber types including SMF, OM2, OM3, OM4 or other specified.

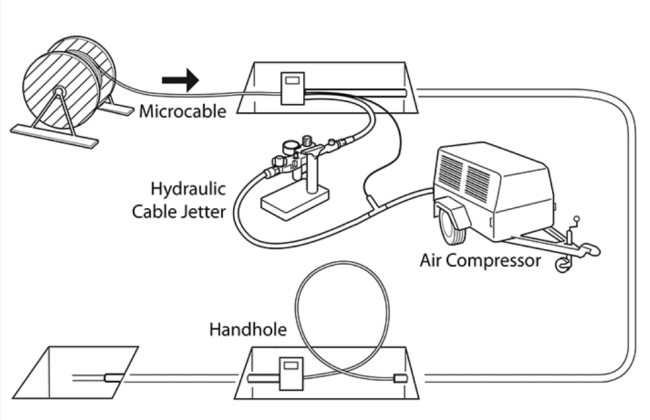

Air Blow Fiber (ABF) system consists of micro-tubes (single micro-tubes and micro-tubes), micro-cables, fittings and air blowing equipment. ABF systems claim to offer reduced cost, increased design flexibility and other advantages that cannot be matched by conventional optical fiber cables.
ABF systems claim to offer cost advantages over conventional cabling systems in two ways. First, the decision to purchase fiber can be postponed until the fiber is actually needed. Second, it eliminates the need for splicing and interconnection points.
Specification
Small diameter and light weight
Rapid cost effective installation and removal
Excellent low friction and blowing distance
Excellent mechanical and environmental performance
Up to 144 fibers and other configurations available
Single-mode. Multimode 50/125, Multimode 62.5/125 or customized fiber optional
All dielectric, anti-lightning, anti-electromagnetic interference
Lifespan over 30 years
Usage
FTTx
LAN communication FTTx
Suitable for air-blowing installation
Backbone network and metro network
Access network
Technical Data
Table 1. Fiber Characteristics
6C to 96C Air blown cable structure
| Cable Core | The count of optical fiber per loose tube and unit composition | |||||||||||
| U1 | U2 | U3 | U4 | U5 | U6 | U7 | U8 | U9 | U10 | U11 | U12 | |
| 6C | 6 | F | F | F | F | F | ||||||
| 12C | 12 | F | F | F | F | F | ||||||
| 24C | 12 | 12 | F | F | F | F | ||||||
| 36C | 12 | 12 | 12 | F | F | F | ||||||
| 48C | 12 | 12 | 12 | 12 | F | F | ||||||
| 60C | 12 | 12 | 12 | 12 | 12 | F | ||||||
| 72C | 12 | 12 | 12 | 12 | 12 | 12 | ||||||
| 96C | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | ||||
Air blown cable structure
| Model | GJFH | |
| Fiber | Count | 48 or specify |
| Type | G657A1 or specify | |
| Unit Cable | OD(mm) | 1.65 ± 0.1 |
| Material | PBT | |
| Cable | OD(mm) | 6.0± 0.2 (for 72C or less) |
| Material | PE | |
| Nominal weight(kg/km) | 33 | |
| Max.tensile Strength(N) | Short-term | 200 |
| Long-term | 150 | |
| Min.Bending Radius(mm) | Dynamic | 20D |
| Static | 10D | |
| Max.Crush Resistance(N/100mm) | Short-term | 450 |
| Long-term | 200 | |
| Color | According to contract | |

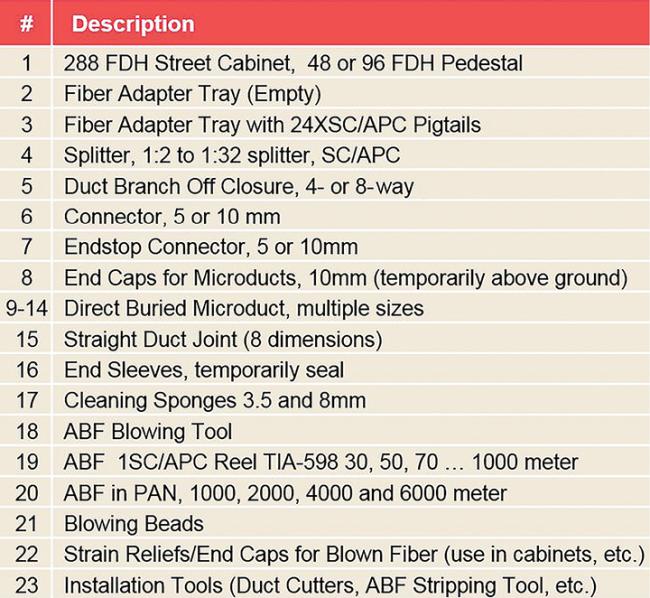

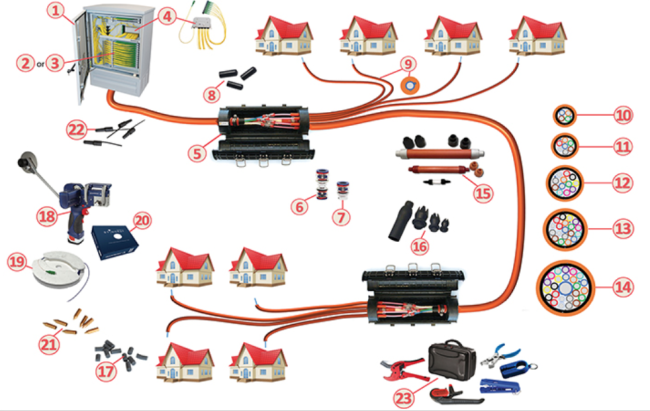

Air blown Fiber Cable Components and Usage in FTTH
