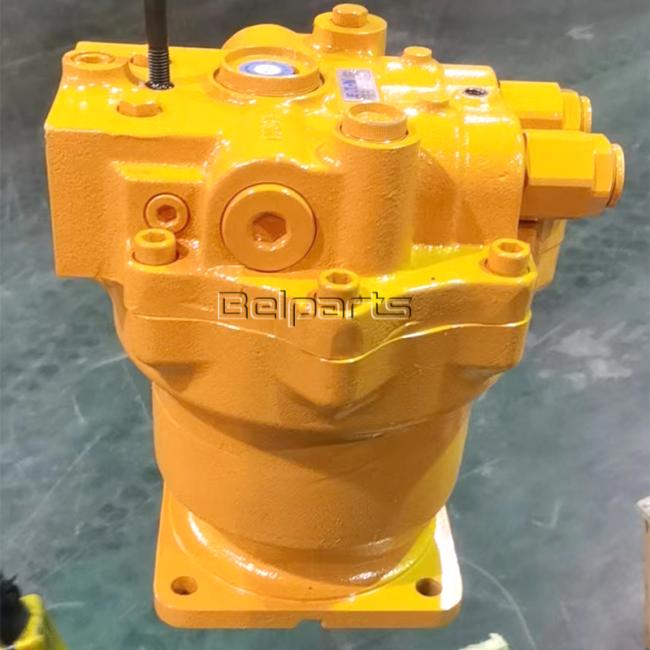

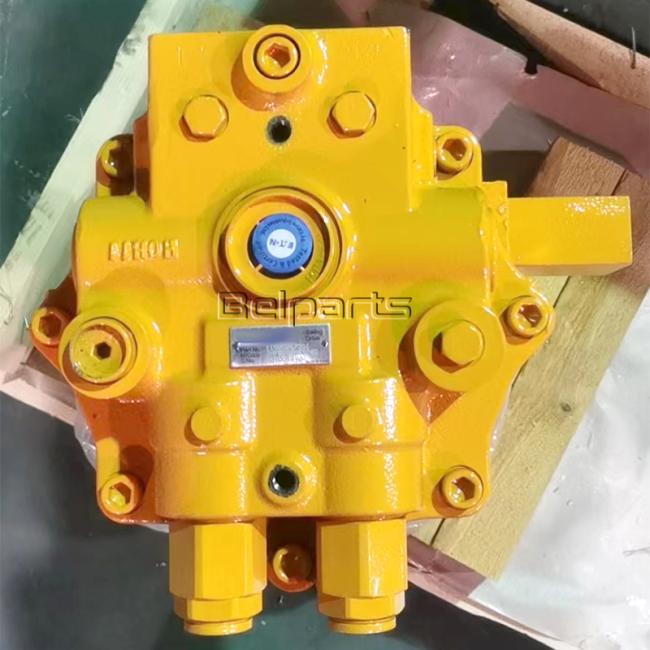

DH370 Excavator Hydraulic Motor K1007543A Swing Motor For Doosan
DH370 EXCAVATOR HYDRAULIC MOTOR K1007543A SWING MOTOR FOR DOOSAN
Products Description
|
roduct Name: |
Hydraulic swing motor |
Model Number: |
DH370 |
|
Condition: |
OEM/Original |
Material: |
Steel |
|
Part number: |
K1007543A |
Place Of Origin: |
Japan |
|
Warranty: |
12 Months |
Weight: |
90KG |
|
Inventory: |
In stock |
Production Capacity: |
1000 pcs/Month |
|
Delivery: |
3-7 Days |
Payment Term: |
L/C,T/T.Western Union |

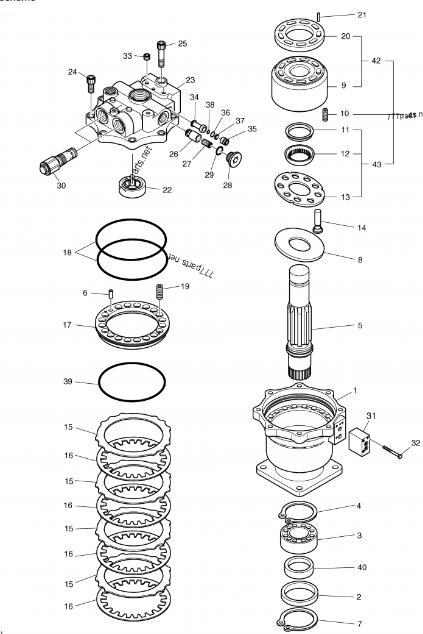

| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| 7 | 1.115-00371 | RING, STOP | 1 | ||
| 38 | S8000121 | O-RING | 2 | ||
| 39 | 2180-1217D159 | O-RING | 1 | ||
| 40 | 1.110-00172 | BUSHING | 1 | ||
| 41 | K9002107 | ROTARY KIT | 18 kg | 1 | |
| 42 | K9002108 | CYLINDER BLOCK KIT | 13 kg | 1 | |
| 43 | K9002109 | RETAINER KIT | 1 kg | 1 | |
| * | K9002069 | SEAL KIT, SWING MOTOR | 1 | ||
| 10 | 1.131-00070 | SPRING | 9 | ||
| 11 | 1.427-00007 | SEAT, BALL GUIDE | 1 | ||
| 12 | 1.429-00008 | GUIDE, BALL | 1 | ||
| 13 | *NA00834 | PLATE, SET | 1 | ||
| 14 | 1.409-00175 | PISTON ASS'Y | 4 kg | 9 SET | |
| 15 | 1.412-00063 | PLATE, FRICTION | 4 | ||
| 16 | 1.412-00025 | PLATE | 4 | ||
| 17 | 1.409-00187 | PISTON, BRAKE | 3 kg | 1 | |
| 18 | 2180-1217D160 | O-RING | 2 | ||
| 19 | 1.131-00071 | SPRING | 19 | ||
| 20 | *NA00839 | PLATE, VALVE | 1 | ||
| 21 | 1.123-00042 | PIN | 2 | ||
| 22 | 1.109-00058 | BEARING, NEEDLE | 1 | ||
| 23 | K9002105 | COVER, REAR | 27 kg / 300*300*150 | 1 | |
| 24 | S2218661 | BOLT, HEX SOCKET HEAD | 7 | ||
| 25 | S2219571 | BOLT, HEX SOCKET | 1 | ||
| 26 | 1.426-00010 | POPPET | 2 | ||
| 27 | 1.131-00072 | SPRING | 8 kg | 2 | |
| 28 | 1.181-00103 | PLUG, DRAIN | 2 | ||
| 29 | S8000291 | O-RING | 2 | ||
| 30 | 1.420-00122 | RELIEF VALVE ASS'Y | 1 kg | 2 | |
| 31 | K9002106 | VALVE, TIME DELAY | 1 | ||
| 32 | S2206161 | BOLT, HEX SOCKET HEAD | 3 | ||
| 33 | 2181-1116D2 | PLUG, RECHECK | 3 | ||
| 34 | K9000942 | VALVE, SWING REACTIONLESS | 2 | ||
| 35 | K9000943 | PLUG | 2 | ||
| 36 | S8000181 | O-RING | 1BP18 | 2 | |
| 37 | K9000944 | RING, BACK UP | 2 | ||
| - | K1007543A | MOTOR, SWING | 46 kg | 1 | |
| 1 | 1.451-00145 | BODY | 33 kg | 1 | |
| 2 | 1.180-00523 | SEAL, OIL | 1 | ||
| 3 | 1.109-00066 | BEARING, ROLLER | 1 kg | 1 | |
| 4 | 1.115-00100 | RING, SNAP | 1 | ||
| 5 | 1.405-00025 | SHAFT | 5 kg | 1 | |
| 6 | 1.123-00041 | PIN | 1 | ||
| 8 | 1.412-00113 | PLATE, SHOE | 1 kg | 1 | |
| 9 | *NA00427 | CYLINDER, BLOCK | 1 |
About us
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products
have been exported to more than 100 countries and regions.
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the
order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,
hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
