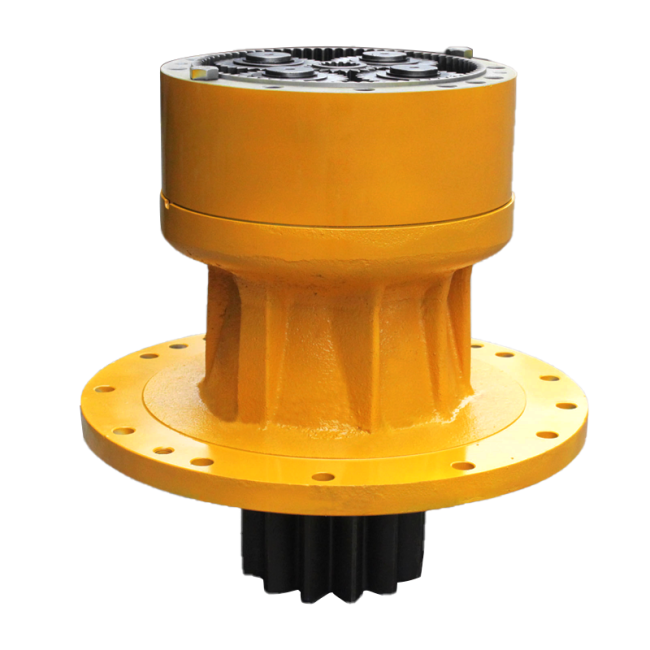

Belparts R290LC-7 Excavator Swing Gearbox 31N8-10181 Swing Reduction Gear For Hyundai
Belparts R290LC-7 Excavator Swing Gearbox 31N8-10181 swing reduction gear for hyundai
|
Product name |
Swing Gearbox |
|
Brand |
Hyundai |
|
Model: |
R290LC-7 |
|
Part number: |
31N8-10181 |
|
Weight |
322KG |
|
Package |
62x62x78 |

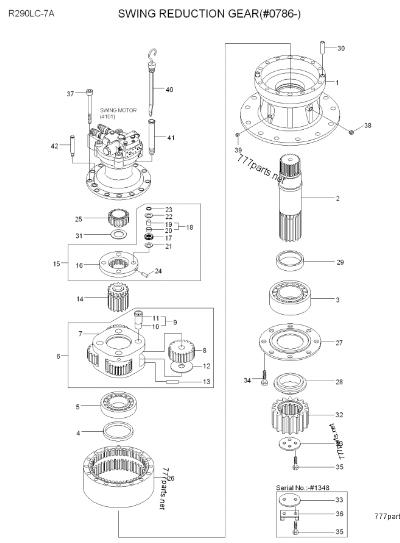

| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | @ | FUEL INJECTION PIPE & NOZZLE SEE 4101 |
1 | |
| *-2 | 31N8-10180 | SWING REDUCTION GEAR | 1 | |
| *-2 | 31N8-10181 | SWING REDUCTION GEAR | 1 | |
| 1 | XKAQ-00427 | CASING | 1 | |
| 2 | XKAQ-00428 | SHAFT-DRIVE | 1 | |
| 2 | XKAQ-00759 | SHAFT-DRIVE | 1 | |
| 3 | XKAQ-00117 | BEARING-ROLLER | 1 | |
| 4 | XKAQ-00119 | SEAL-OIL | 1 | |
| 5 | XKAQ-00120 | BEARING-ROLLER | 1 | |
| 6 | XKAQ-00429 | CARRIER ASSY-2 | 1 | |
| 7 | XKAQ-00430 | CARRIER-2 | 1 | |
| 8 | XKAQ-00431 | GEAR-PLANET,2 | 4 | |
| 9 | XKAQ-00432 | PIN ASSY-2 | 4 | |
| 10 | XKAQ-00433 | PIN-2 | 1 | |
| 11 | XKAQ-00434 | BUSHING-2 | 1 | |
| 12 | XKAQ-00435 | WASHER-THRUST | 8 | |
| 13 | XKAQ-00050 | PIN-SPRING | 4 | |
| 14 | XKAQ-00436 | GEAR-SUN,2 | 1 | |
| 15 | XKAQ-00437 | CARRIER ASSY-1 | 1 | |
| 16 | XKAQ-00438 | CARRIER-1 | 1 | |
| 17 | XKAQ-00439 | GEAR-PLANET,1 | 4 | |
| 18 | XKAQ-00440 | PIN ASSY-1 | 4 | |
| 19 | XKAQ-00441 | PIN ASSY-1 | 1 | |
| 20 | XKAQ-00079 | BUSHING-1 | 1 | |
| 21 | XKAQ-00417 | PLATE-SIDE 1 | 4 | |
| 22 | XKAQ-00416 | PLATE-SIDE 2 | 4 | |
| 23 | XKAQ-00041 | RING-STOP | 4 | |
| 24 | XKAQ-00048 | PIN-SPRING | 4 | |
| 25 | XKAQ-00442 | GEAR-SUN,1 | 1 | |
| 26 | XKAQ-00444 | GEAR-RING | 1 | |
| 27 | XKAQ-00443 | PLATE-COVER | 1 | |
| 28 | XKAQ-00445 | SPACER | 1 | |
| 28 | XKAQ-00758 | SPACER | 1 | |
| 29 | XKAQ-00446 | RING-SPACER | 1 | |
| 30 | XKAQ-00072 | PIN-KNOCK | 2 | |
| 31 | XKAQ-00447 | PLATE-THRUST,3 | 1 | |
| 32 | XKAQ-00013 | GEAR-PINION | 1 | |
| 33 | XKAQ-00043 | PLATE-LOCK | 1 | |
| 33 | XKAQ-00757 | PLATE-LOCK | 1 | |
| 34 | XKAQ-00064 | BOLT-HEX | 8 | |
| 35 | XKAQ-00042 | BOLT-HEX | 2 | |
| 35 | XKAQ-00756 | BOLT-HEX | 4 | |
| 36 | XKAQ-00292 | WASHER-LOCK | 1 | |
| 37 | XKAQ-00448 | BOLT-SOCKET | 12 | |
| 38 | XKAQ-00049 | PLUG-PRESSURE | 1 | |
| 39 | XKAQ-00066 | PLUG | 2 | |
| 40 | XKAQ-00167 | PIPE-GAUGE | 1 | |
| 41 | XKAQ-00449 | BAR-GAGE | 1 | |
| 42 | XKAQ-00143 | AIR BREATHER ASSY | 1 |
