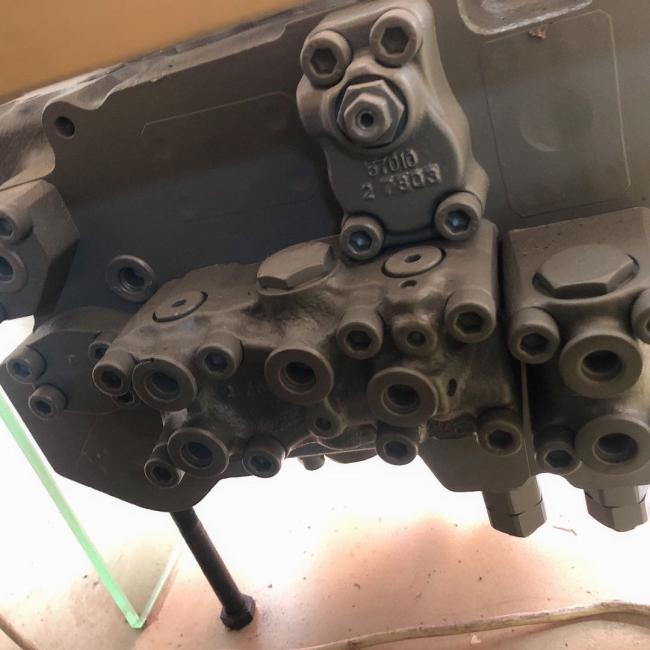

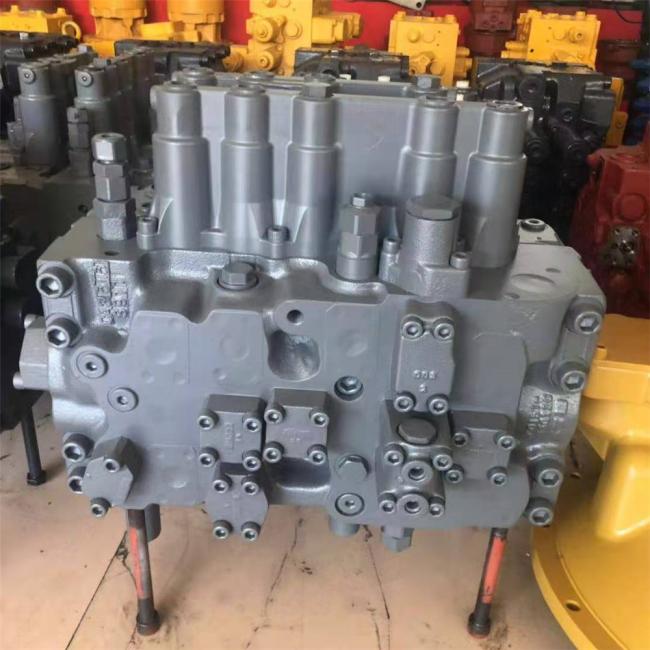

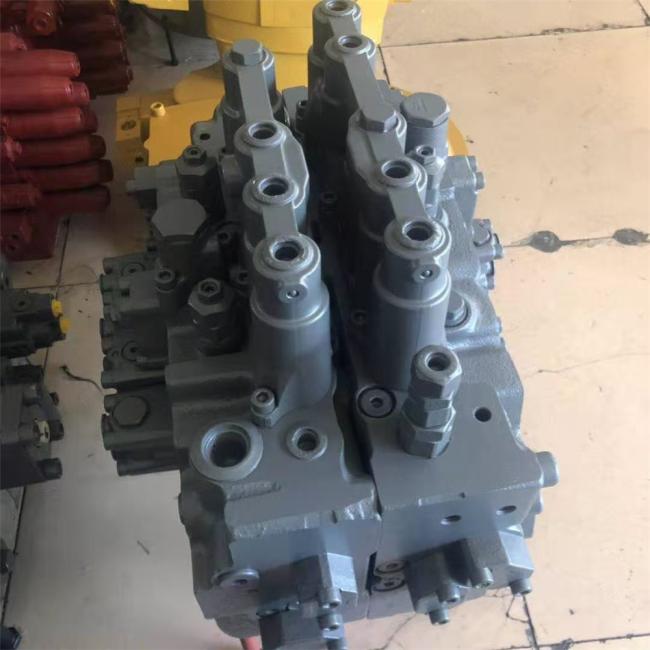

Belparts ZX350LC-3 Excavator Hydraulic Main Valve Control Valve 4433970
Belparts ZX350LC-3 Excavator Hydraulic Main Valve control valve 4433970
Product Information
Part number:4433970
Type Model: Control Valve
model:ZX350LC-3
Part number: 4433970
Apply for:Crawler excavator
Weight:220KG
MOQ:1PCS
Warranty:6 Months
| # | Part No | Part Name | Qty. | Price request |

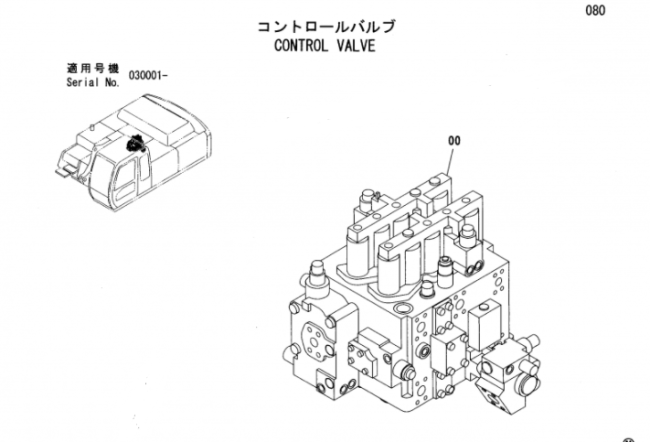

| 4433970 | VALVE; CONTROL (1/6) | 1 | ||
| 101 | . CASING | 1 | ||
| 102 | . CASING | 1 | ||
| 154 | 0718901 | . PLUG | 1 | |
| 160 | 0263019 | . PLUG | 6 | |
| 164 | 4509180 | . O-RING | 6 | |
| 201 | 0718902 | . COVER | 1 | |
| 202 | 0718903 | . COVER | 1 | |
| 203 | 0718904 | . COVER | 5 | |
| 204 | 0718905 | . COVER | 2 | |
| 205 | 0718906 | . COVER | 1 | |
| 208 | 0718907 | . COVER | 1 | |
| 252 | 0816301 | . VALVE | 2 | |
| 257 | 0718909 | . PLATE | 1 | |
| 261 | A811055 | . O-RING | 10 | |
| 263 | 4506407 | . O-RING | 11 | |
| 264 | A811040 | . O-RING | 8 | |
| 273 | 0130520 | . BOLT; SOCKET | 32 | |
| 301 | . SPOOL | 1 | ||
| 302 | . SPOOL | 1 | ||
| 303 | . SPOOL | 1 | ||
| 304 | . SPOOL | 1 | ||
| 305 | . SPOOL | 1 | ||
| 306 | . SPOOL | 1 | ||
| 307 | . SPOOL | 1 | ||
| 308 | . SPOOL | 1 | ||
| 309 | . SPOOL | 1 | ||
| 310 | . SPOOL | 1 | ||
| 328 | . SPRING | 2 | ||
| 329 | . SPRING | 2 | ||
| 331 | . SEAT; SPRING | 4 | ||
| 332 | . SEAT; SPRING | 16 | ||
| 333 | . BOLT | 2 | ||
| 334 | . STOPPER | 2 | ||
| 335 | . STOPPER | 7 | ||
| 336 | . BOLT | 8 | ||
| 339 | . STOPPER | 1 | ||
| 371 | . SPRING | 7 | ||
| 372 | . SPRING | 7 | ||
| 373 | . SPRING | 1 | ||
| 374 | . SPRING | 1 | ||
| 553 | 0718910 | . PLUG | 1 | |
| 555 | 0718911 | . PLUG | 1 | |
| 556 | 0718912 | . PLUG | 1 | |
| 559 | 0718913 | . PLUG | 1 | |
| 560 | 4154233 | . O-RING | 1 | |
| 620 | 0384401 | . BOLT; SOCKET | 4 | |
| 621 | M340650 | . BOLT; SOCKET | 4 | |
| 622 | 0232126 | . O-RING | 9 | |
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside
6.Using wooden package.
7.We support the custom-made demand for package
