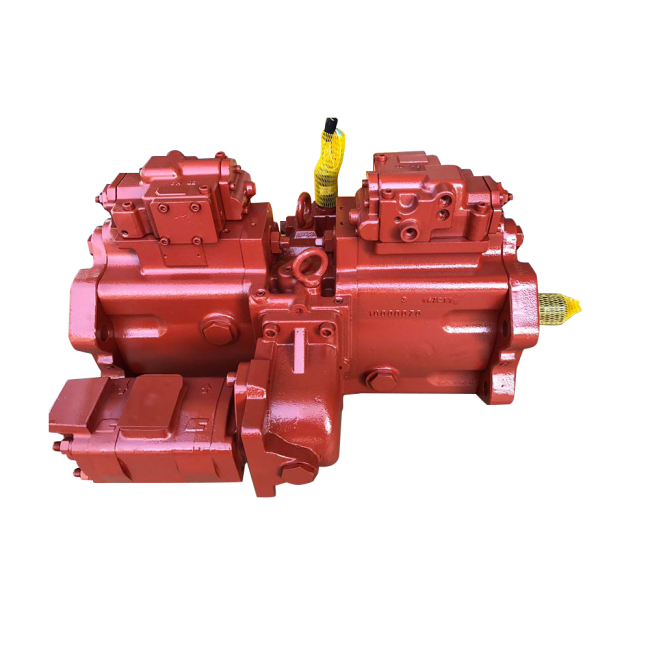

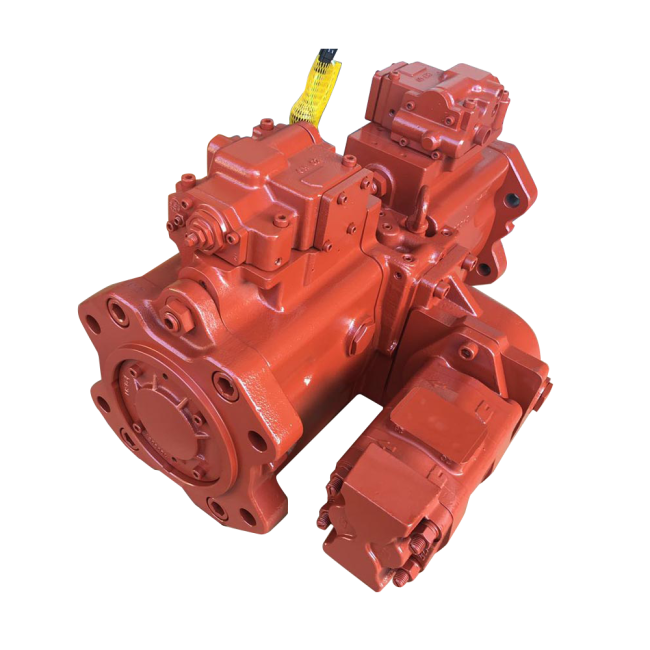

Belparts Excavator 360 Ec360 Ec210blc Ec460 Excavator Hydraulic Main Pump Assy SA 7220-00700
Belparts Excavator 360 ec360 ec210blc ec460 excavator hydraulic main pump assy SA 7220-00700
Quick Detail of Excavator Hydraulic Pump
Material:Steel
Product Name: Excavator Main Hydraulic Pump
Part number:SA 7220-00700
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
Brand:
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | ec360 ec210blc ec460 |
| Pump Number | / |
| N.W/KG | 130KG |
| G.W/KG | 140KG |
| Packing Size | 84*38*49 |
| Part number | SA 7220-00700 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| SA 7220-00700 | Pump | 1 | ||
| 1 | SA 7223-00140 | Piston | 2 | |
| 2 | SA 7223-00150 | Piston | 9 | |
| 3 | SA 7223-00160 | Pad | 9 | |
| 4 | SA 7223-00780 | Cylinder | 1 | |
| 5 | SA 7223-00090 | Block | 1 | |
| 6 | SA 7223-00360 | Plate | 1 | |
| 7 | SA 7223-00790 | Cylinder | 1 | |
| 8 | SA 7223-00090 | Block | 1 | |
| 9 | SA 7223-00370 | Plate | 1 | |
| 10 | SA 7223-00820 | Valve more | 1 | |
| 11 | SA 7223-00010 | Shaft | 1 | |
| 12 | SA 7223-00020 | Shaft | 1 | |
| 13 | SA 7223-00030 | Connector | 1 | |
| 14 | SA 7223-00040 | Roller Bearing | 2 | |
| 15 | SA 7223-00050 | Needle Bearing | 2 | |
| 16 | SA 7223-00060 | Spacer | 3 | |
| 17 | SA 7242-10210 | Plate | 2 | |
| 18 | SA 7242-10150 | Bushing | 2 | |
| 19 | SA 7223-00180 | Spring | 18 | |
| 20 | SA 7223-00200 | Spacer | 2 | |
| 21 | SA 7223-00210 | Plate | 2 | |
| 22 | SA 14506635 | Plate | 2 | |
| 23 | SA 7223-00220 | Plate | 1 | |
| 24 | SA 7223-00240 | Bushing | 1 | |
| 25 | SA 7223-00280 | Cover | 1 | |
| 26 | SA 7223-00290 | Casing more | 2 | |
| 27 | SA 7223-00310 | Block | 1 | |
| 28 | VOE 14506634 | Pin | 2 | |
| 29 | SA 7223-00400 | Pin | 1 | |
| 30 | SA 7223-00570 | Pin | 1 | |
| 31 | SA 9415-11051 | Plug more | 3 | |
| 32 | SA 7242-11040 | Plug more | 29 | |
| 33 | SA 7223-00390 | Bolt | 8 | |
| 34 | SA 7223-00410 | Piston | 2 | |
| 35 | SA 7223-00420 | Stop | 2 | |
| 36 | SA 7223-00430 | Stop | 2 | |
| 37 | SA 7223-00480 | Check valve | 2 | |
| 38 | SA 7223-00510 | Seat | 1 | |
| 39 | SA 7223-00530 | Stop | 1 | |
| 40 | SA 9676-73200 | Ball more | 1 | |
| 41 | SA 7223-00490 | Check valve | 2 | |
| 42 | SA 7223-00510 | Seat | 1 | |
| 43 | SA 7223-00550 | Stop | 1 | |
| 44 | SA 9676-73200 | Ball more | 1 | |
| 45 | SA 9016-10804 | Bolt more | 4 | |
| 46 | SA 7223-00690 | O-ring | 2 | |
| 47 | SA 9511-22105 | O-ring more | 1 | |
| 48 | SA 7223-00590 | O-ring | 2 | |
| 49 | SA 7223-00600 | O-ring | 2 | |
| 50 | SA 9511-12008 | O-ring more | 16 | |
| 51 | SA 9511-12011 | O-ring more | 3 | |
| 52 | SA 9511-12024 | O-ring more | 3 | |
| 53 | SA 7223-00700 | O-ring | 2 | |
| 54 | SA 7223-00710 | Seal | 1 | |
| 55 | SA 7223-00640 | Ring | 2 | |
| 56 | SA 7223-00650 | Ring | 2 | |
| 57 | SA 9111-12000 | Nut more | 4 | |
| 58 | SA 9541-01045 | Snap Ring more | 2 | |
| 59 | SA 7242-10560 | Pin | 2 | |
| 60 | SA 7223-00660 | Spring Pin | 4 | |
| 61 | SA 9031-11200 | Eye Bolt more | 2 | |
| 62 | SA 7223-00670 | Set Screw | 2 | |
| 63 | SA 7223-00680 | Set Screw | 2 | |
| 64 | SA 7223-00260 | Support | 2 | |
| 65 | SA 9415-11021 | Plug more | 1 | |
| 100 | SA 8148-15050 | Sealing Kit more | 1 |
Service
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.

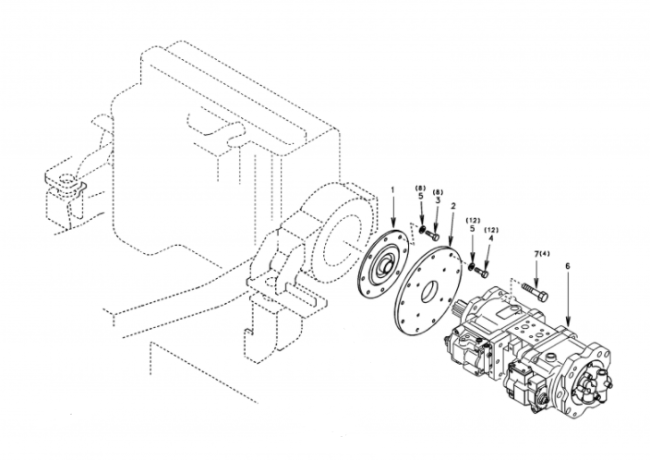

Parts scheme
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
