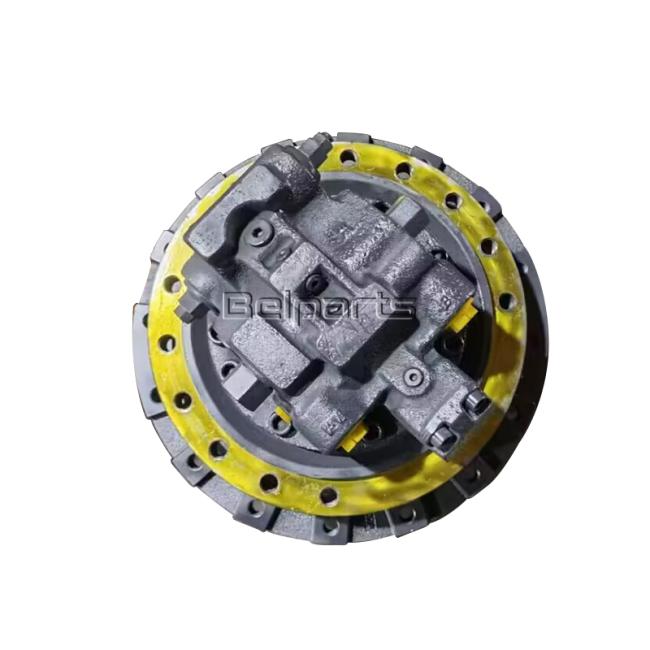

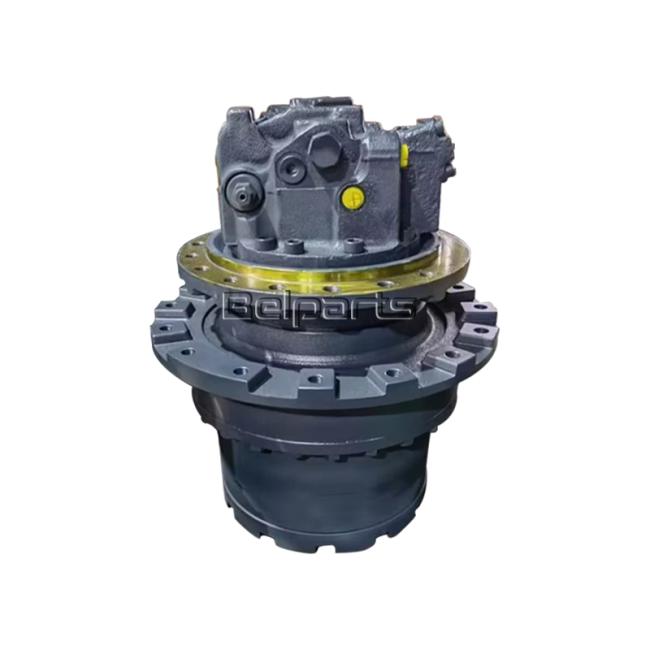

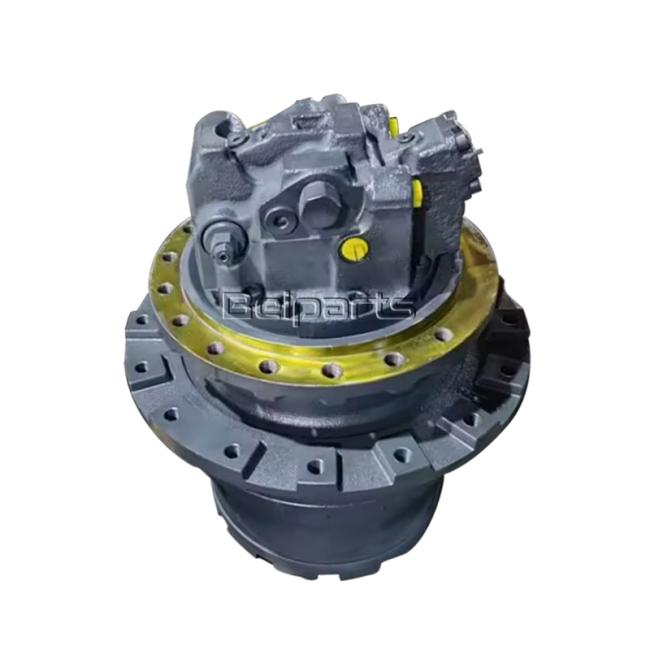

Belparts Excavator Travel Motor Assy Final Drive EX200-3 Repair Kit 9120000 9131678 For Hitachi
Belparts Excavator Travel Motor Assy Final Drive EX200-3 repair kit 9120000 9131678 for hitachi
Product description
Appliion:Excavator machine
Part name:travelling motors
Model:EX200-3
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
| Appliion | Excavator machine |
| Part name | travelling motors assy |
| Model | EX200-3 |
| Package | 56*54*67 |
| Warranty | 1 Year |
| Part number | 9120000 9131678 |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |
| # | Part No | Part Name | Qty. | Price request |
| 9120000 | MOTOR; OIL | 1 | ||
| (9131678) | MOTOR; OIL | |||
| 02 | 1014547 | . HOUSING | ||
| 04 | 2026713 | . DISC; DRIVING | ||
| 06 | 4198783 | . BRG.; ROL. | ||
| 07 | 4198998 | . BRG.; ROL. | ||
| 08 | 4222980 | . SPACER | ||
| 09 | 4178173 | . NUT; BRG. | ||
| 11 | 4260561 | . SEAL; OIL | 1 | |
| 12 | 4116290 | . RING; RETAINING | 1 | |
| 14 | 2034880 | . ROTOR | 1 | |
| 17 | 8050658 | . PISTON | 7 | |
| 19 | 3064069 | . SHAFT; CENTER | 1 | |
| 20 | 4179181 | . SPRING; COMPRES. | 1 | |
| 21 | 4198956 | . PIN | 1 | |
| 22 | 4234229 | . RING; RETAINING | ||
| 24 | 3037401 | . PLATE; FRICTION | ||
| 25 | 3032432 | . PLATE | ||
| 26 | 4246784 | . SPACER | 1 | |
| 28 | 3047473 | . PISTON | 1 | |
| 29 | 4232766 | . D-RING | 1 | |
| 30 | 4232767 | . D-RING | 1 | |
| 31 | 3047472 | . SPRING; DISC | 1 | |
| 33 | 4248871 | . O-RING | 1 | |
| 34 | 4506415 | . O-RING | 1 | |
| 37 | 9119999 | . VALVE; BRAKE | 1 | |
| 37 | (9131604) | . VALVE; BRAKE | ||
| 38 | M341650 | . BOLT; SOCKET | ||
| 40 | 3064074 | . PLATE | 1 | |
| 41 | 4266256 | . PIN; KNOCK | 2 | |
| 45 | 2034875 | . VALVE | 1 | |
| 46 | 4234628 | . BUSHING | 1 | |
| 48 | 3052403 | . LINK | 1 | |
| 49 | 4255238 | . PLUG | 2 | |
| 51 | 4262561 | . BOLT; REAMER | 1 | |
| 53 | 9101386 | . PISTON; SERVO | 1 | |
| 55 | 4260308 | . RING; PISTON | 2 | |
| 56 | 4275286 | . COVER | 1 | |
| 57 | 4265579 | . O-RING | 1 | |
| 58 | M341225 | . BOLT; SOCKET | 4 | |
| 63 | 9134112 | . PLUG | 1 | |
| 63A | 4506418 | .. O-RING | 1 | |
| 64 | 9134109 | . PLUG | 1 | |
| 64A | 4506408 | .. O-RING | 1 |
Packaging Details
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside
6.Using wooden package.
7.We support the custom-made demand for package
