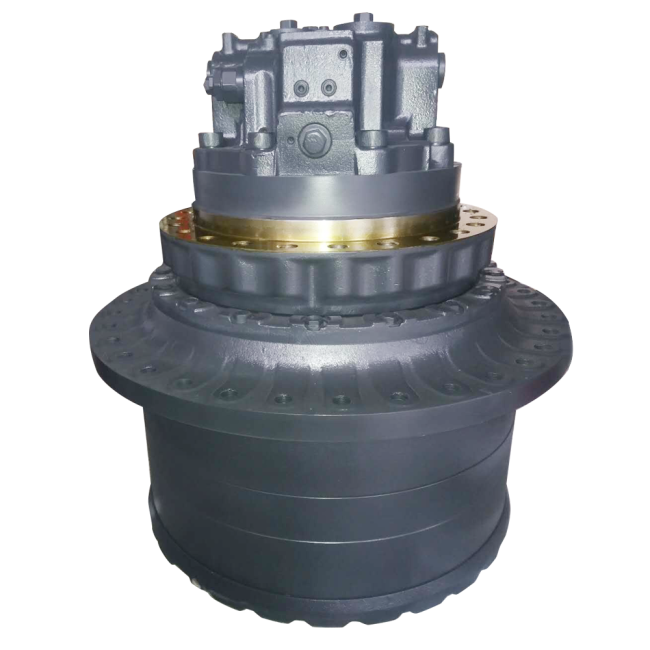

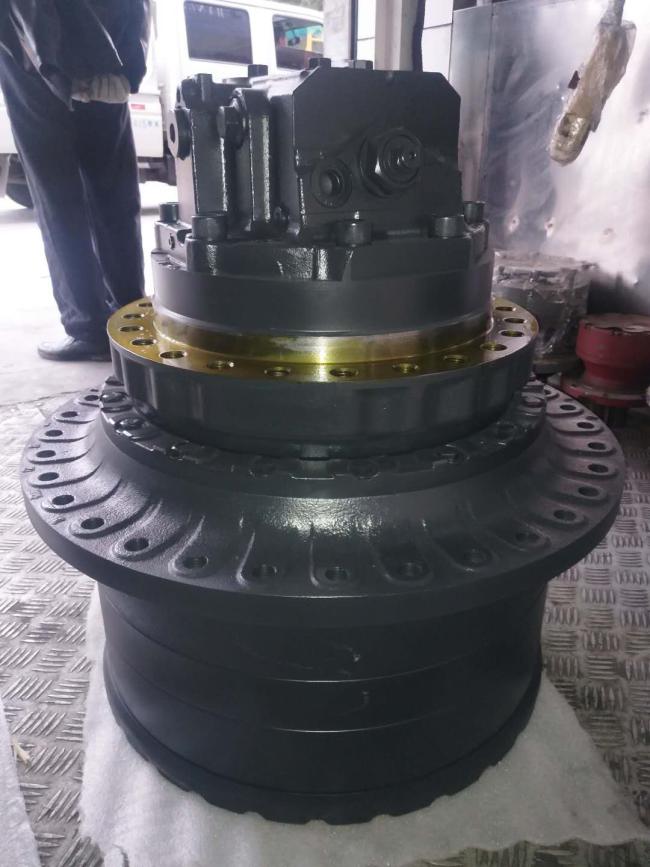

Excavator 706-88-01101 Travel Motor Assy PC600-7 Final Drive For Komatsu
Belparts Excavator PC600-8 PC650-8MO PC600-8MO Final Drive 21M-27-00041 travel motor assy for komatsu
Product description
Appliion:Excavator
Part name:travel motor
Material:Steel
Model:PC600-7
Part number:706-88-01101
Payment term:37*36*52
Delivery:56KG
Brand:Belparts
| Appliion | Excavator machine |
| Part name | travel motor assy |
| Model | PC600-7 |
| Package | 56*54*67 |
| Warranty | 3-12months |
| Brand | Belparts |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |

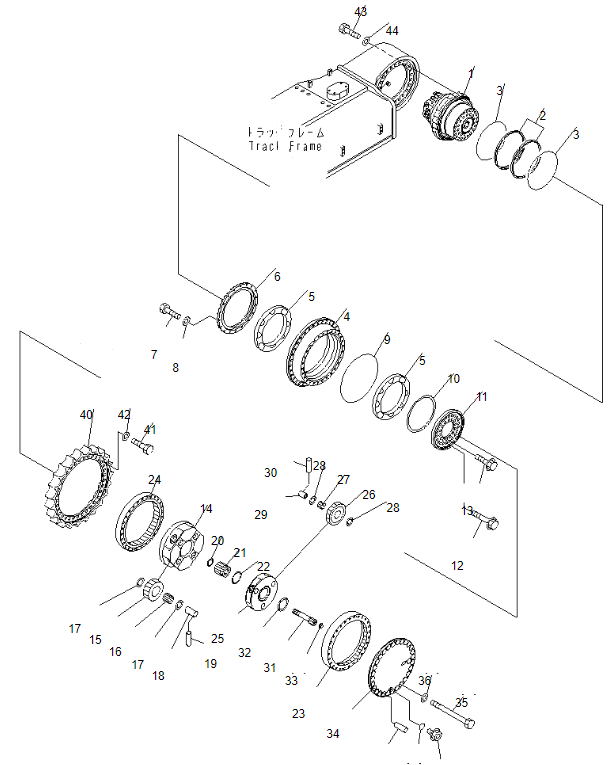

| # | Part No | Part Name | Qty. | Price request |
| 1 | (706-8L-01010) | MOTOR ASS'Y | 1 | |
| 1 | (706-88-01110) | MOTOR ASS'Y | 1 | |
| 1 | (706-88-01101) | MOTOR ASS'Y | 1 | |
| (706-88-01110(2)) | ||||
| 2 | 17M-27-00102 | FLOATING SEAL ASS'Y | 1 | |
| 2 | Ring | 2 | ||
| 3 | O-ring | 2 | ||
| 4 | 21M-27-11210 | Hub | 1 | |
| 5 | 208-27-62110 | Bearing | 2 | |
| 6 | 208-27-51212 | Cover | 1 | |
| 7 | 01010-81240 | BOLT,FOR WEIGHT ADJUSTING BOLT | 18 | |
| 8 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 18 | |
| 9 | 21M-27-11280 | O-ring | 1 | |
| 10 | 21M-27-00110 | SPACER ASS'Y | 1 | |
| 10 | SPACER? 3.5MM | 1 | ||
| 10 | SPACER? 3.25MM | 1 | ||
| 10 | SPACER? 3.3MM | 1 | ||
| 10 | SPACER? 3.35MM | 1 | ||
| 10 | SPACER? 3.4MM | 1 | ||
| 10 | SPACER? 3.45MM | 1 | ||
| 10 | SPACER? 3.55MM | 1 | ||
| 11 | 21M-27-11290 | Retainer | 1 | |
| 12 | 208-27-52311 | Bolt | 22 | |
| 13 | 21M-27-11380 | Bolt | 14 | |
| 14 | 21M-27-11180 | Carrier | 1 | |
| 15 | 21M-27-11140 | Gear | 4 | |
| 16 | 21M-27-11230 | Bearing | 4 | |
| 17 | 21M-27-11260 | THRUST WASHER | 8 | |
| 18 | 21M-27-11250 | Pin | 4 | |
| 19 | 20Y-27-21290 | Pin | 4 | |
| 20 | 207-27-52270 | Spacer | 1 | |
| 21 | 21M-27-11130 | Gear | 1 | |
| 22 | 21M-27-11270 | THRUST WASHER | 1 | |
| 23 | 21M-27-11150 | Gear | 1 | |
| 24 | 21M-27-11160 | Gear | 1 | |
| 25 | 21M-27-11170 | Carrier | 1 | |
| 26 | 21M-27-11120 | Gear | 3 | |
| 27 | 21M-27-11411 | Bearing | 3 | |
| 28 | 20Y-27-21250 | WASHER,THRUST | 6 | |
| 29 | 21M-27-11240 | Pin | 3 | |
| 30 | 20Y-27-21280 | Pin | 3 | |
| 31 | 21M-27-11111 | Shaft | 1 | |
| 32 | 20Y-27-11250 | Spacer | 1 | |
| 33 | 208-27-61350 | BUTTON | 1 | |
| 34 | 21M-27-11190 | Cover | 1 | |
| 35 | 208-27-52341 | Bolt | 28 | |
| 36 | 01643-31845 | WASHER,(WITHOUT R.O.P.S.) | 28 | |
| 37 | 07049-01215 | PLUG,(FOR ROPS SWEEP) (WITHOUT CAB) | 4 | |
| 38 | 07044-12412 | PLUG,MAGNETIC | 2 | |
| 39 | 07002-12434 | O-RING,(FOR 2-ACTUATER ATTACHMENT) | 2 | |
| 40 | 21M-27-11220 | SPROCKET | 1 | |
| 41 | 01010-82265 | BOLT,(FOR REAR SIDE) | 34 | |
| 42 | 01643-32260 | WASHER,SINGLE FLANGE (TRIMMING) | 34 | |
| 43 | 01010-62490 | BOLT,(WITHOUT CAP) | 24 | |
| 44 | 01643-32460 | WASHER,(WITHOUT ROPS GUARD? CANOPY) | 24 |
Packaging Details
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.
Factory
Certifiion
Product Testing
Product Packing
Our Services
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside
6.Using wooden package.
7.We support the custom-made demand for package
If possible, you can send us the old photo, nameplate or the size for reference.
2.What is the warranty of the parts after I purchase?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours, if not in stock ,we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide the old photo for us. After it is confirmed, pls return to us , we will offer the correct item.
6.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/assy/parts, swing gearbox/assy/motor/parts, hydraulic pump assy/parts, gear parts. If you need other excavator parts, we also can supply as your requirements.
