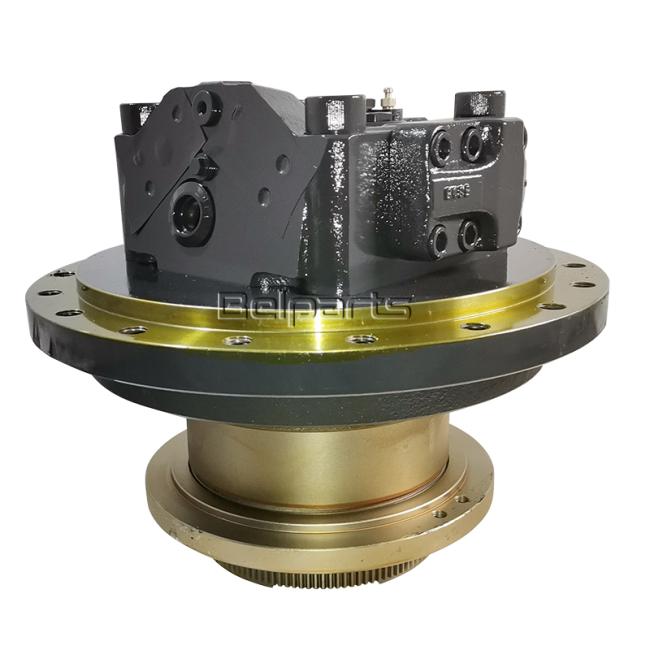

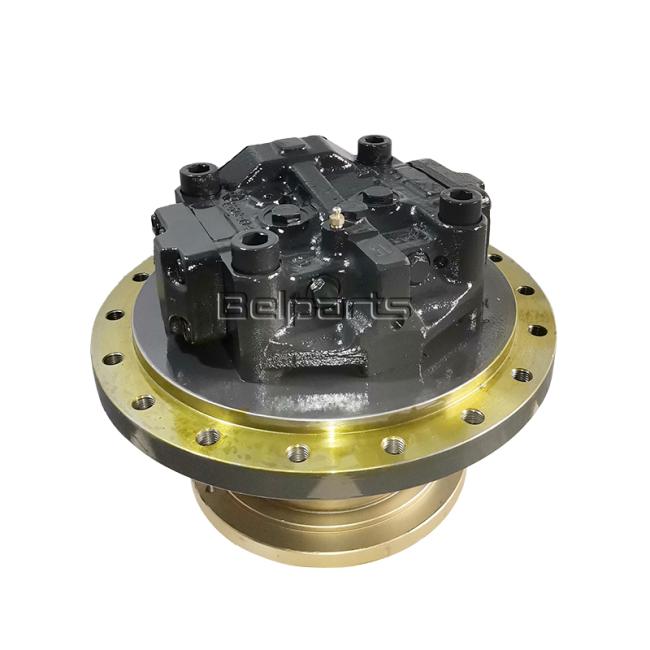

Excavator Travel Motor Assy PC200-8 Final Drive 708-8F-00250 For Komatsu
Belparts travel motor assy excavator PC200-8 Final Drive 708-8F-00250 for komatsu
Product description
Appliion:Excavator
Part name:travel motor
Material:Steel
Model:PC200-8
Part number:708-8F-00250
Payment term:37*36*52
Delivery:56KG
Brand:Belparts
| Appliion | Excavator machine |
| Part name | travel motor assy |
| Model | PC200-8 |
| Package | 56*54*67 |
| Warranty | 3-12months |
| Brand | Belparts |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |

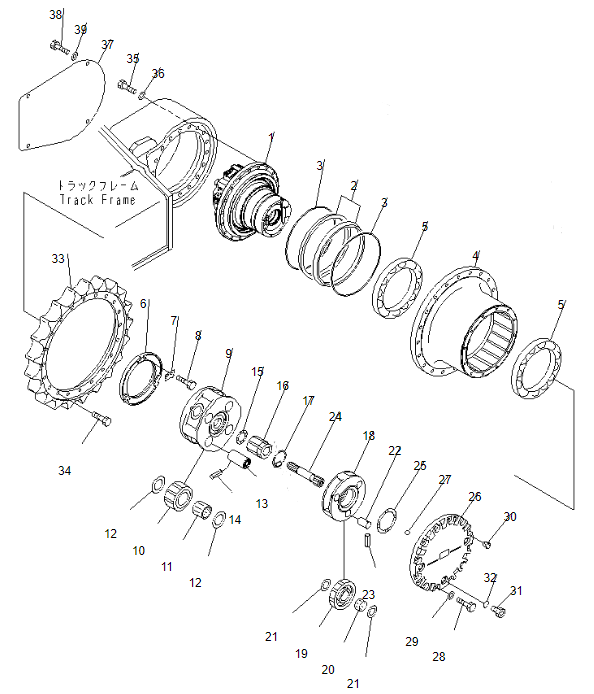

| # | Part No | Part Name | Qty. | Price request |
| 1 | 20Y-27-00500 | FINAL DRIVE ASS'Y | 2 | |
| 1 | (708-8F-00250) | MOTOR ASS'Y | 1 | |
| 2 | 20Y-27-00110 | SEAL ASS'Y | 1 | |
| 2 | Seal | 2 | ||
| 3 | O-ring | 2 | ||
| 4 | 20Y-27-41140 | Hub | 1 | |
| 5 | 20Y-27-41260 | Bearing | 2 | |
| 6 | 20Y-27-41190 | Nut | 1 | |
| 7 | 20Y-27-41180 | Lock | 1 | |
| 8 | 01010-81020 | BOLT,(FOR MONO LEVER STEERING) | 2 | |
| 9 | 20Y-27-41150 | Carrier | 1 | |
| 10 | 20Y-27-41130 | Gear | 4 | |
| 11 | 20Y-27-41250 | Bearing | 4 | |
| 12 | 20Y-27-41270 | Washer | 8 | |
| 13 | 20Y-27-41170 | Pin | 4 | |
| 14 | 20Y-27-21290 | Pin | 4 | |
| 15 | 20Y-27-13310 | WASHER,THRUST | 1 | |
| 16 | 20Y-27-41120 | Gear | 1 | |
| 17 | 20Y-27-22240 | Washer | 1 | |
| 18 | 20Y-27-31111 | Carrier | 1 | |
| 19 | 20Y-27-22120 | Gear | 3 | |
| 20 | 20Y-27-22210 | Bearing | 3 | |
| 21 | 20Y-27-21240 | WASHER,THRUST | 6 | |
| 22 | 20Y-27-21220 | Pin | 3 | |
| 23 | 20Y-27-21280 | Pin | 3 | |
| 24 | 20Y-27-41110 | Shaft | 1 | |
| 25 | 20Y-27-21310 | Washer | 1 | |
| 26 | 20Y-27-41160 | Cover | 1 | |
| 27 | 04260-01587 | Ball | 1 | |
| 28 | 01010-81240 | BOLT,FOR WEIGHT ADJUSTING BOLT | 12 | |
| 29 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 12 | |
| 30 | 07049-01012 | PLUG,(WITH CANVAS OR ROPS CANOPY) | 2 | |
| 31 | 20Y-27-31190 | Plug | 3 | |
| 32 | 07002-12434 | O-RING,(FOR 2-ACTUATER ATTACHMENT) | 3 | |
| 33 | 20Y-27-11582 | SPROCKET | 1 | |
| 34 | 20Y-27-11561 | Bolt | 20 | |
| 35 | 01010-61660 | CAPSCREW | 36 | |
| 36 | 01643-31645 | WASHER,(FOR TRAVEL MOTOR) (NOT SHOW) | 36 | |
| 37 | 20Y-30-21191 | Cover | 2 | |
| 38 | 01010-81230 | BOLT,(NOT USED WHEN TOWING WINCH) | 8 | |
| 39 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 8 |
Packaging Details
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.
Factory
Certifiion
Product Testing
Product Packing
Our Services
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside
6.Using wooden package.
7.We support the custom-made demand for package
